Confirm T lock balance shoe dimensions

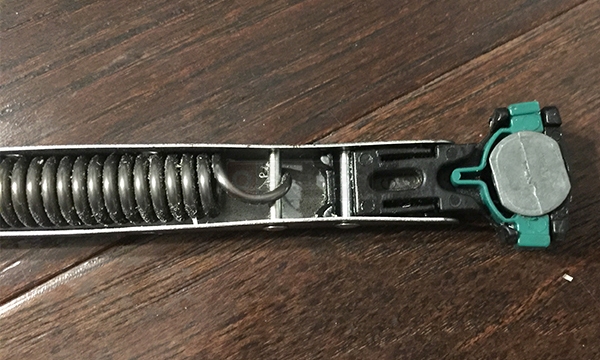

I agree, our Series 795 looks like the best match. However this balance comes with a 1-1/4" wide shoe by default. It looks like you have the smaller 1" wide shoe. I would recommend purchasing our 15-194 separately. Once you receive your parts, you can just swap the shoes out.

Also keep in mind that the Series 795 installs at the top using a screw tab. If yours installs using a hook, it's important to let me know. Your balance will have to be specially made.

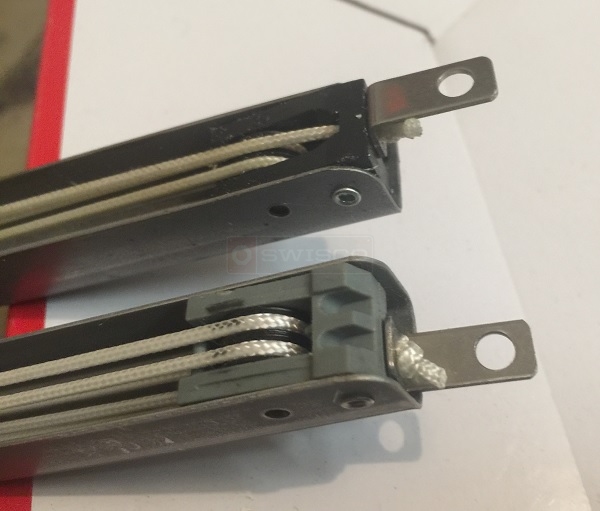

It looks like yours uses the same screw tab. I'm not sure what your question is, since it got cut off. What problem are you running into exactly?

I don't see any major difference in position that would make it impossible to install. You should be able to just rotate the screw tab so its facing the same direction and install it that way.
