Constant Force Coil Balance

Question

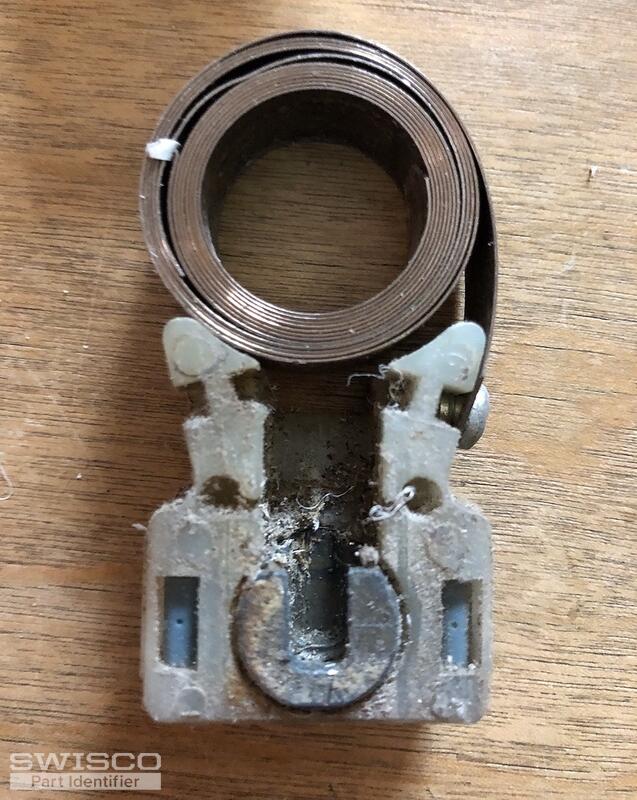

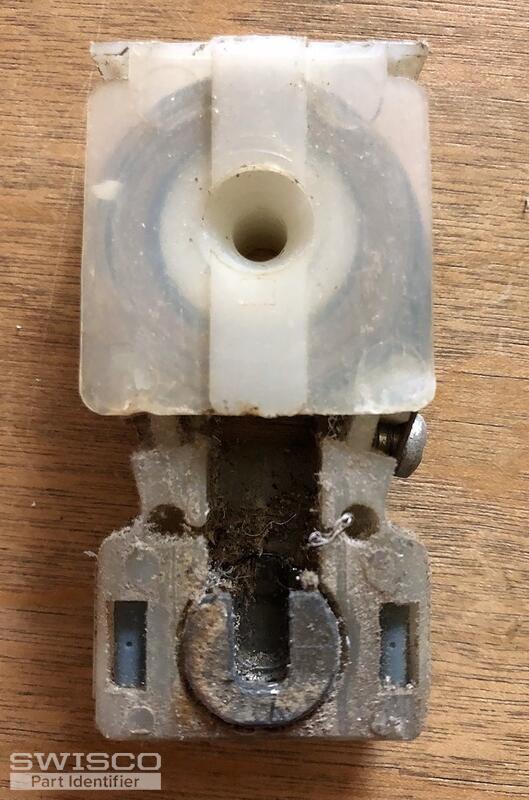

Please help identify these parts for my window balance. The coil is 0.5" wide and the sash weighs 12.6 pounds. There is one coil on each side. Also is there a way to replace just the metal shoe on some of the windows without removing the entire unit? Some shoes have cracked (the metal cylinder that the window fits into).

Thanks in advance!

Casey · Accepted Answer

You have done a good job identifying your coil balance parts. I would add the other side of the coil support, 15-143. The three support pieces go together like a sandwich, with the metal coil in the center. Your window seems to weigh a bit more than 12 lbs. You might want to double check that. Two 6 lb coils will carry 12 lbs of sash. I'm afraid that the metal cam in your pivot shoe is not available as a separate item.
