Quick Learner from Washington state

Sep 27, 2023 10:28 am

Hello,

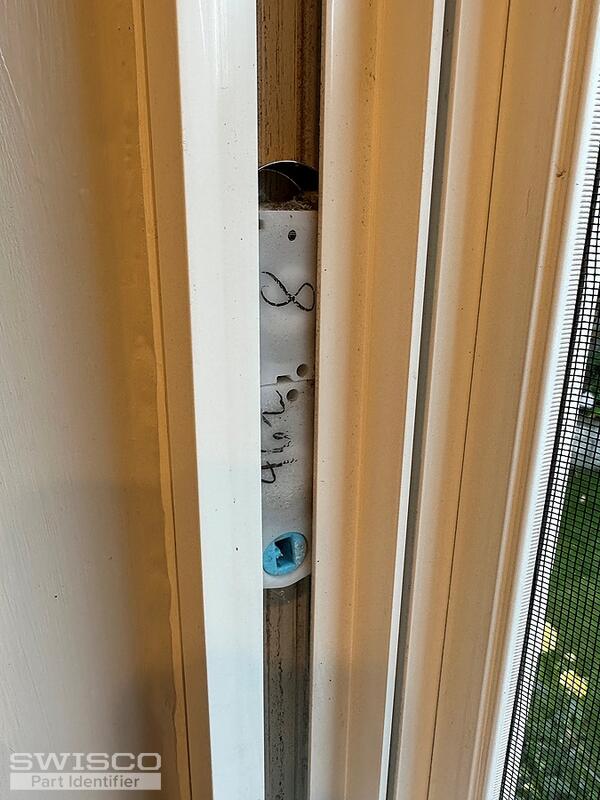

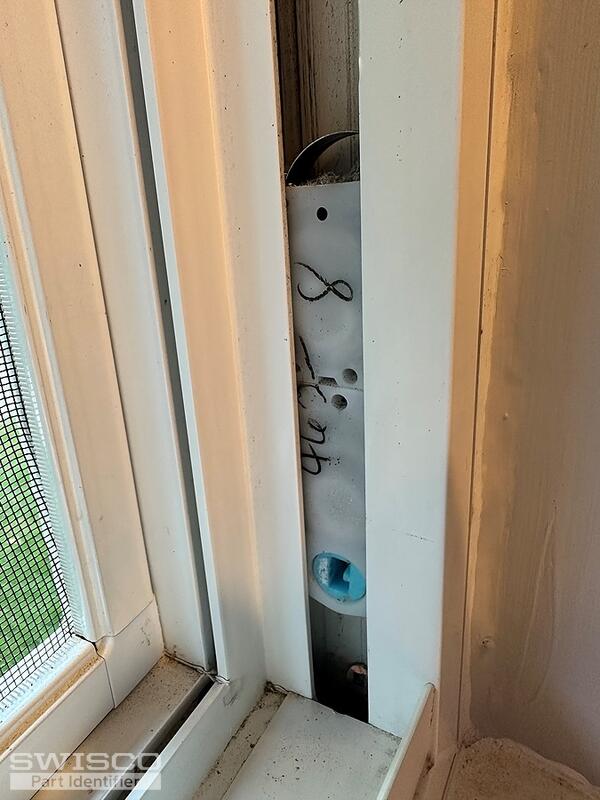

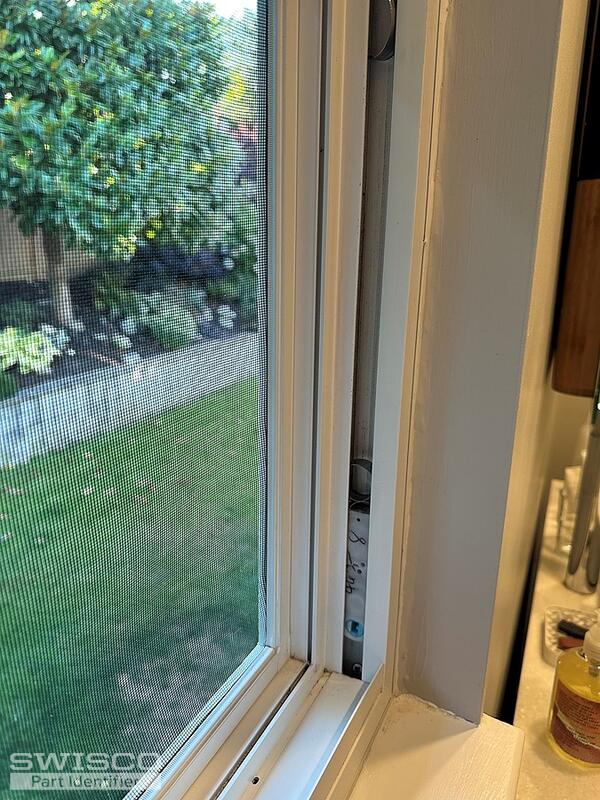

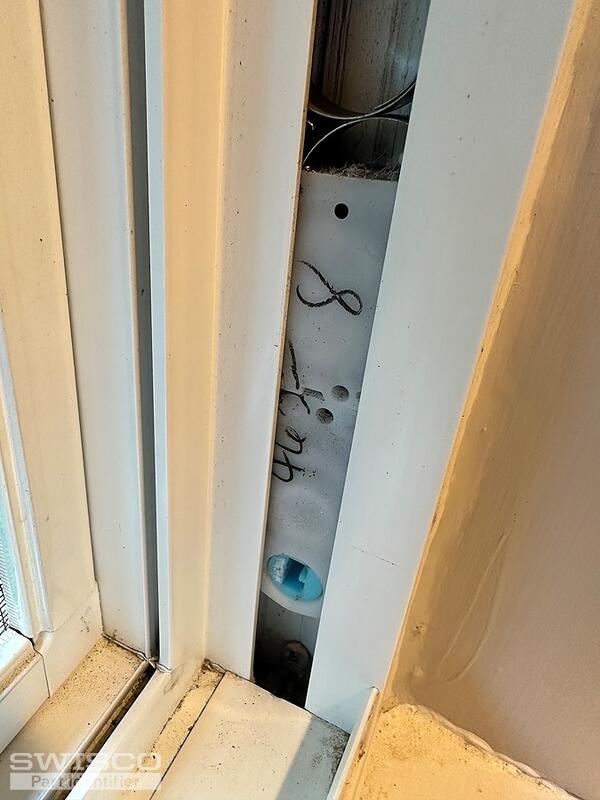

Are you able to identify the parts shown in the attached pictures?

I need to order a coupe of sets

Thanks

Mark

4 user uploaded images

4 Replies

Casey from SWISCO

Sep 28, 2023 1:18 pm

Hello,

Your balance shoe resembles the 15-087 housing pivot shown below, which would use the S180 coil springs, 15-086 tandem housing, and 16-024 or 16-031 mounting bracket. I would recommend removing your balance assembly from the window to confirm that the specifications of our parts match up to yours. Take a look and let us know if you need anything else. Thank you!

Detail of 15-087

Series 180 coil balance diagram

Quick Learner from Washington state

Nov 1, 2023 3:35 pm

So just to be clear for one window I would order 4 X S180 springs and 2 each of the housings (15-086 and 15-087) ?

Casey from SWISCO

Nov 2, 2023 8:17 am

Yes, that would be correct based on your photos, which show two coil springs. You'll also need to remove and locate the stamp code printed on each coil to choose the corresponding strength options.
