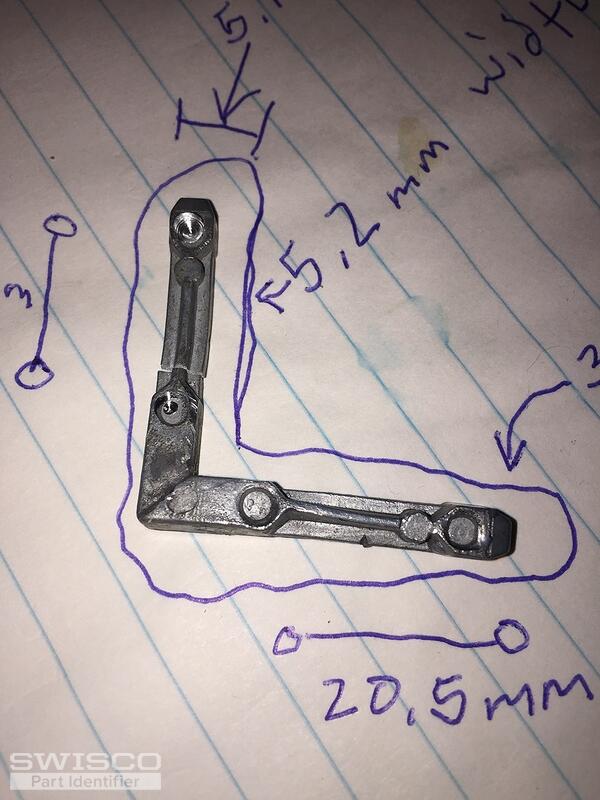

Both sides have 4 indents. The first 2 photos are without the diagonal and the second have the diagonal on the corner.
The indents are 20.5 mm apart
The width of the thick leg is 5.2 mm
The width of the thinner leg is 3.9 mm
If that makes sense that is .....
There?s one more width, both legs are 5.45 mm wide or thick depending on how you define it
|
Tom from SWISCO responded:
October 23, 2018
Thank you for your patience during this busy season. I'm afraid that I'm a little confused by your dimensions. You've given me a lot of widths and I'm not sure which is which. In terms of design alone, I found our 95-191. This looks like it has a similar mold as your own corner. Look over our dimensions and let me know if this matches up. It has a pivot post on the corner, but you could file that off if necessary. |
