Could you tell me if I have picked the right channel balance (Photos included)

Home Owner from Ladera Ranch, CA

Jul 19, 2022 9:26 pm

Part that I picked from your website

28" Series 380 Channel Balance
S380-28
option: 2730

20220719_180658

20220719_180804

20220719_180855

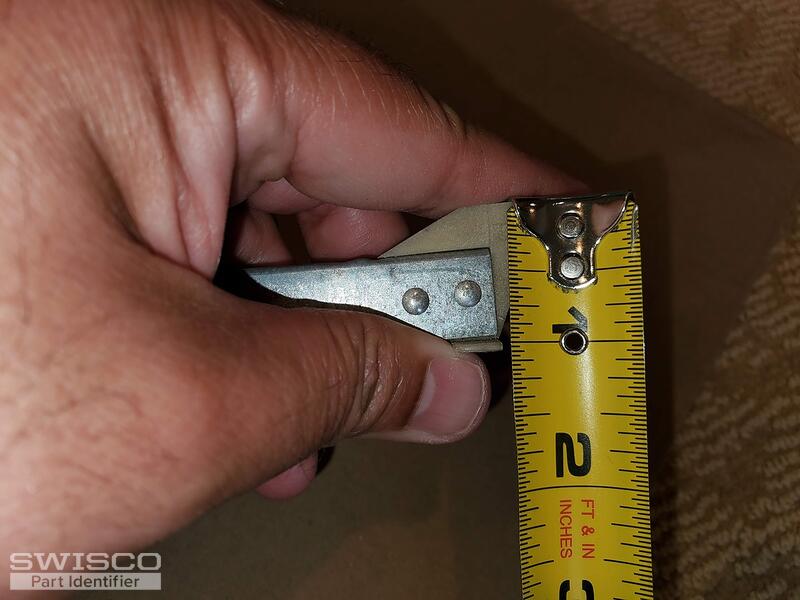

20220719_180923

20220719_181032

5 user uploaded images

2 Replies

+ Add a Comment

Home Owner from Ladera Ranch, CA

Jul 19, 2022 9:26 pm

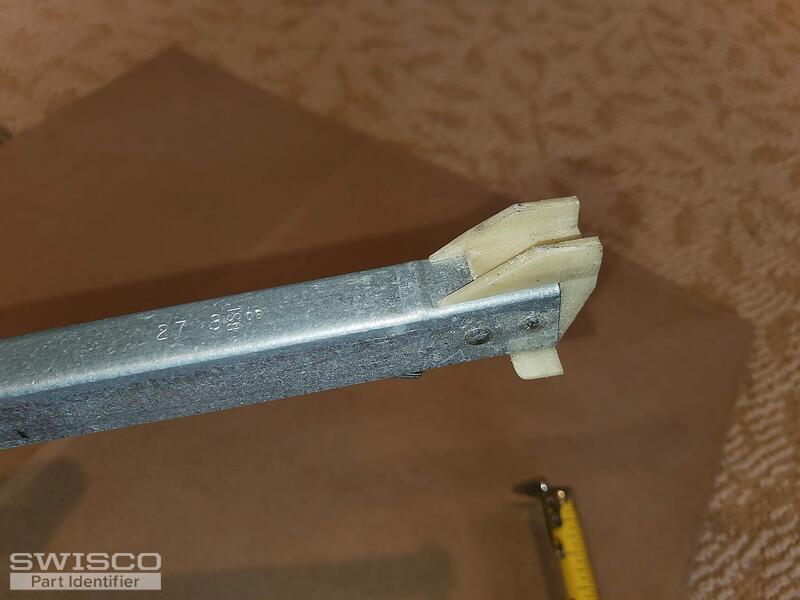

20220719_181044

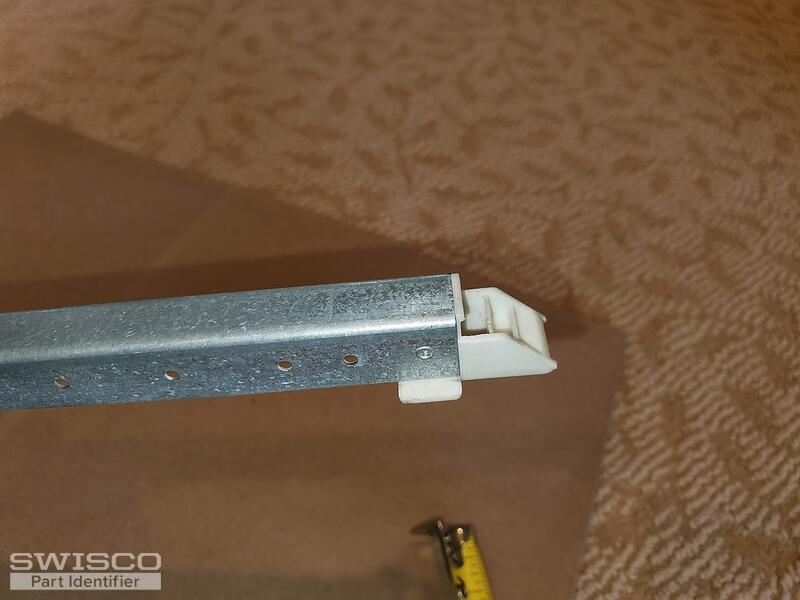

20220719_181102

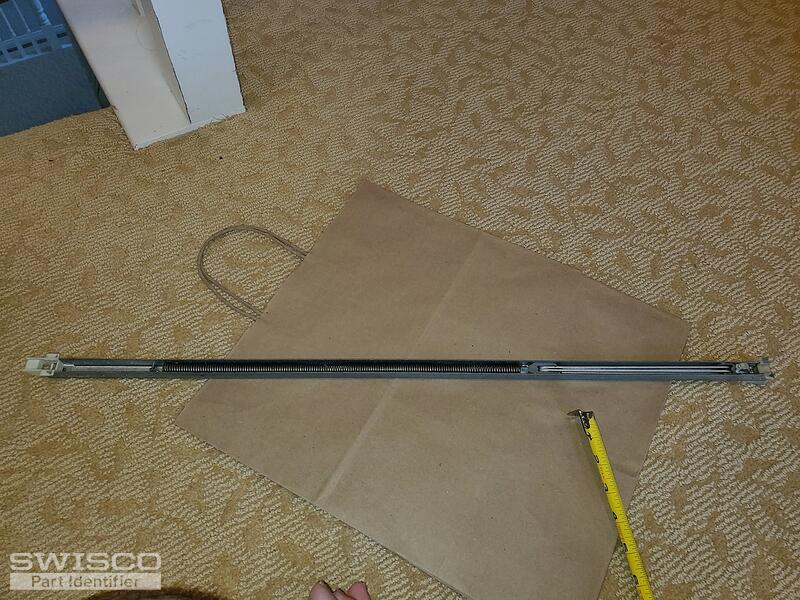

20220719_181143

3 user uploaded images

Emily

Emily from SWISCO

Jul 25, 2022 1:05 pm

SWISCO

EXPERT

Hello there!

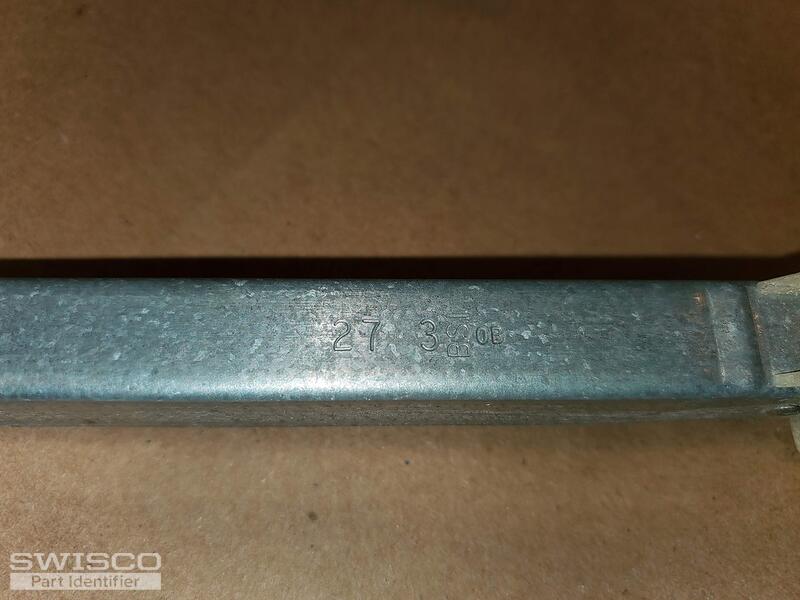

It appears you have either our S380-28 or S385-28 channel balance. The Series 380 comes attached with a 1" deep shoe and the Series 385 comes attached with a 1-3/32" deep shoe. It's hard to make out accurate dimensions from pictures so you'll need to use your best judgement and measure as shown below. You will also need the 2730 strength option, based on your 27 3 stamp.

Comparison of the S380 and S385 balance shoes.

Comparison of the S380 and S385 balance shoes.

+ Add a Comment
