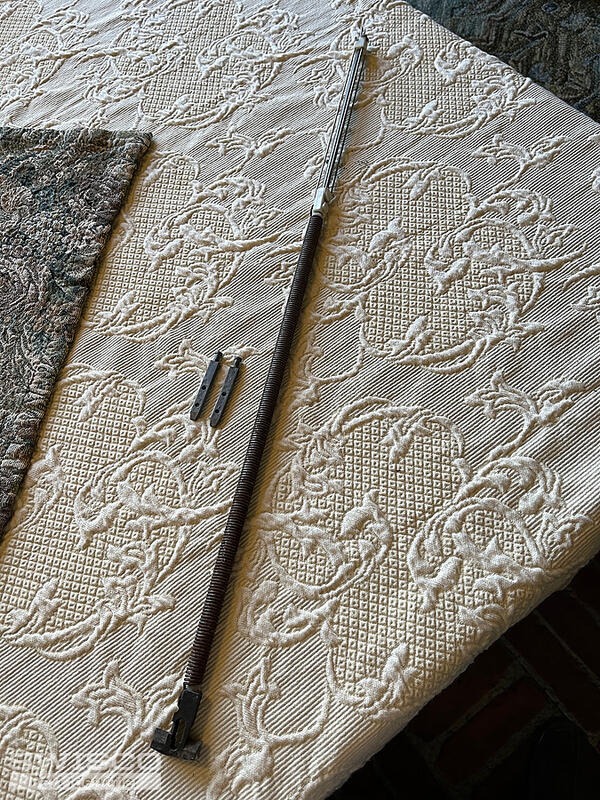

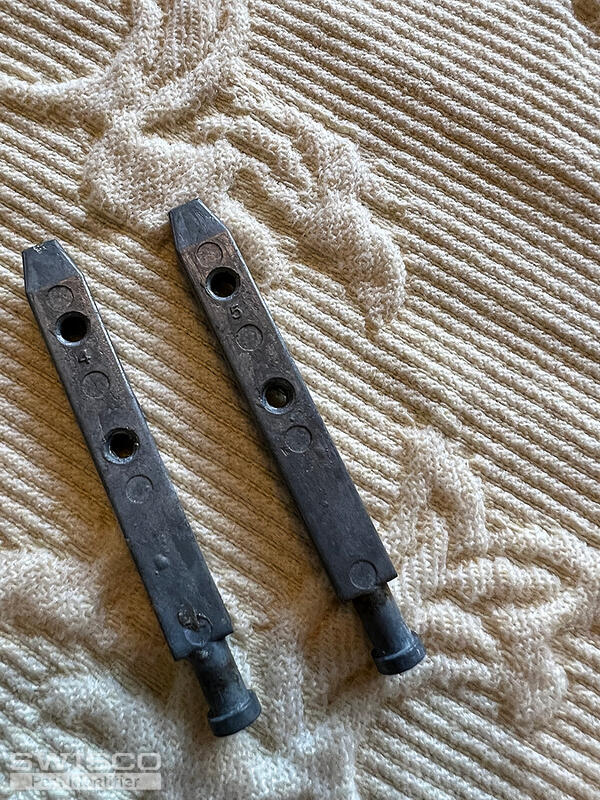

Hi, I believe you have replacement parts for this old block and tackle balance. This is a single hung window, about 39" x 29" The metal clips at the bottom of the window are
2 1/2 " long. One has a 4 on it and one has a 5 on it.The rod unit is over all 27" long.

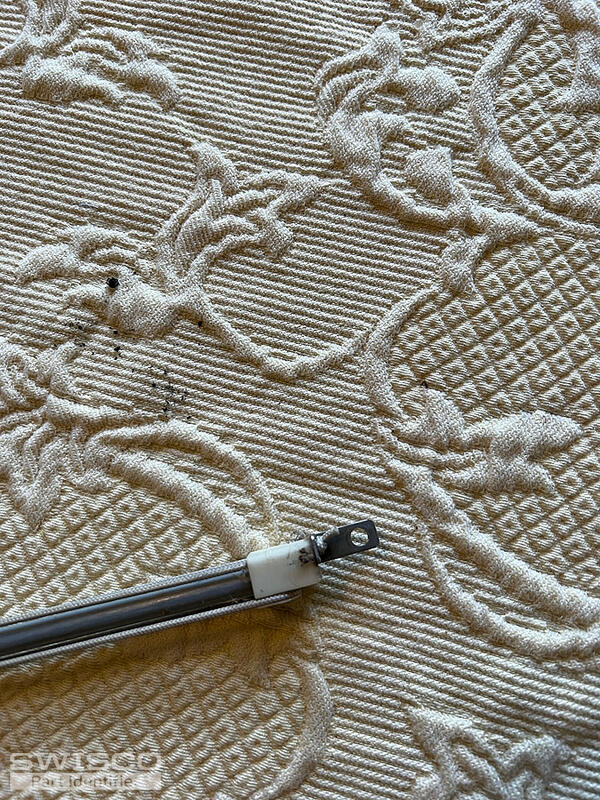

The black piece at the bottom of the rod is 1 1/8- or slightly under 1 1/4". I'm hoping you can help me with these parts and directions for installing them. Thank you so much.
Linda
Hi Linda,
Your old-style crossbow balance is no longer available but many customers have been able to use the S795 as a replacement as long as your balance spring measures 1/2" in diameter. Take a look at the conversion video below that will walk you through the process. Thank you!
You are correct that if your balance measures 26-1/2", you would use the S795-26 channel balance. Unfortunately, you will still need the exact sash weight to follow the chart under the balance product description and choose the corresponding strength option. We also can not process orders through the discussion board, but you can purchase the parts that you need directly on our website or by giving our customer service team a call at (888) 991-1929.
