Counter balancer info

A home owner from Ottawa canada says:

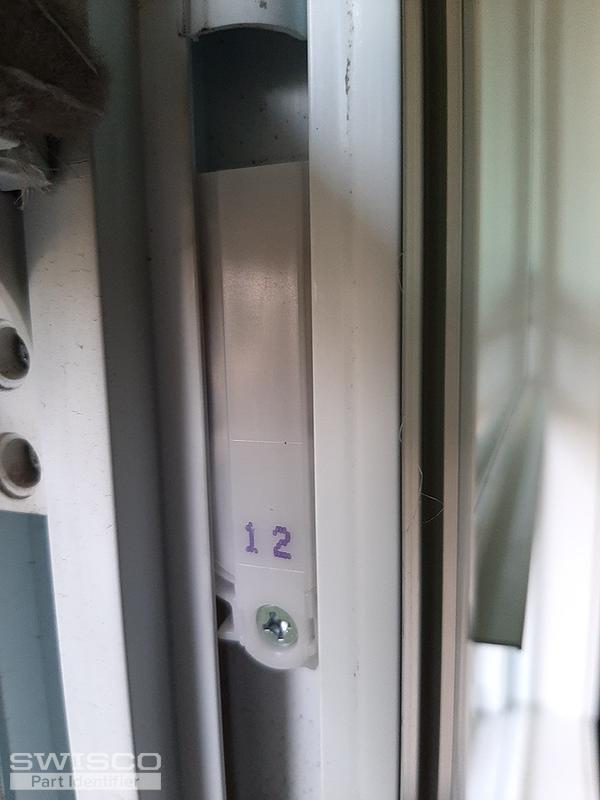

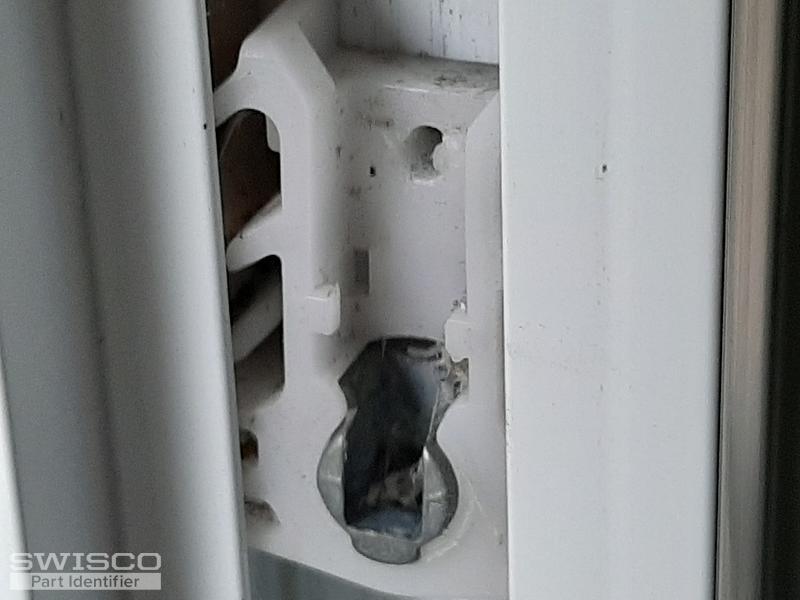

Hi, just double checking that I am picking the correct parts? I think I need two s140 12lb balancers. The one in the pictures measures thickness of 9/16", width 1 5/16" and length with shoe is 4 9/16". Also wondering if my pivot bar is going to fit into the s140 shoe? This is a single hung tilt window by the way.

I live in ottawa, canada will there be any issues shipping to canada?

Thanks for you time
Ron
Thumbnail of the uploaded file named 20200710_073730.jpg
Thumbnail of the uploaded file named 20200710_071150.jpg
Thumbnail of the uploaded file named 20200710_071042.jpg
Thumbnail of the uploaded file named 20200710_071005.jpg
Thumbnail of the uploaded file named 20200710_070819.jpg
Profile picture of Casey
Casey from SWISCO responded:

Hi Ron,

I agree that the S140-12 looks like a match to yours but I would recommend removing your hardware to confirm that the width and thickness match up to the measurements shown on our product page. As for your pivot bars, I see no reason why your old ones wouldn't work with the S140 as long as the dimensions and specifications match up. Thanks for posting!

A home owner from Ottawa canada says:
Thanks so much

I will remove hardware and double check measurements and compare them the your product.
