Counterbalance ID : SWISCO.com

Quick Learner from Youngsville, LA

Mar 30, 2025 2:52 pm

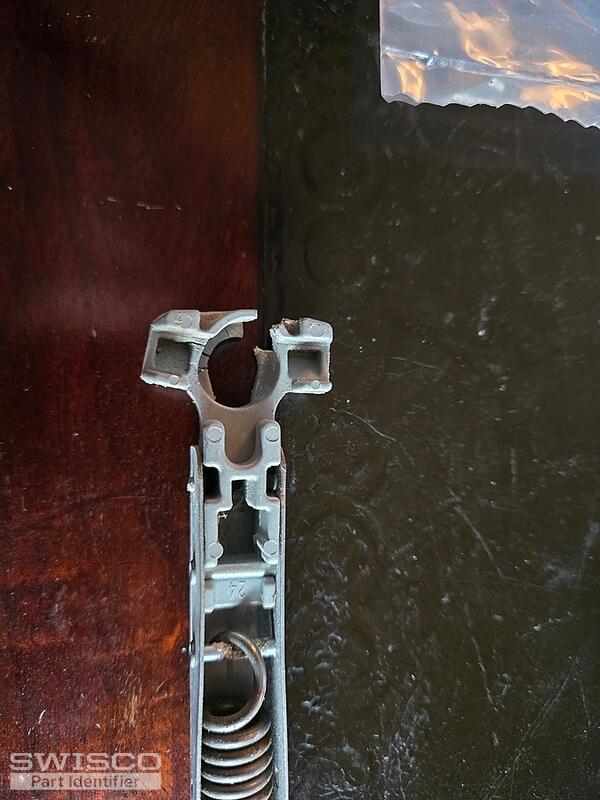

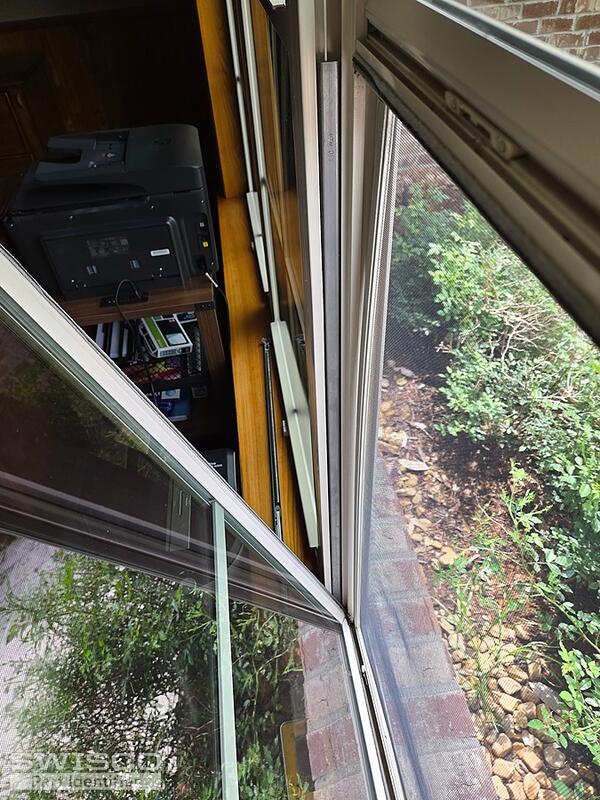

The balance is 33" long. Markings are shown in the picture. I need to identfy and order a replacement.

5 user uploaded images

4 Replies

Casey from SWISCO

Apr 2, 2025 3:11 pm

Hello,

Your balance resembles the S795-33 (33C) except that yours appears to use a hook like the 15-198 for installation, which we can supply through a custom order.

How to measure the length of the Series 795 channel balance.

Profile view of 15-198

Detail of 15-198

Before we get started, I'd recommend checking an intact balance to confirm the 15-195 closed cam T-lock shoe matches yours. Also, note that the minimum order would be two since it's important to replace both sides at the same time. Thank you!

Dimensions for 15-195

Alternate view of 15-195

Quick Learner from Youngsville, LA

Apr 2, 2025 8:16 pm

I used calipers to measure the clip and shoe. Both match your dimensional drawings exactly. The rod is 33". Pls advise me how to proceed to execute the custom order for a pair of counterbalances.

Casey from SWISCO

Apr 3, 2025 8:58 am

Thanks for getting back to us. We just sent over an order link and price quote for you to review. Take a look and let us know if you need anything else!
