Counterbalance Inquiry

Quick Learner from Tustin, California

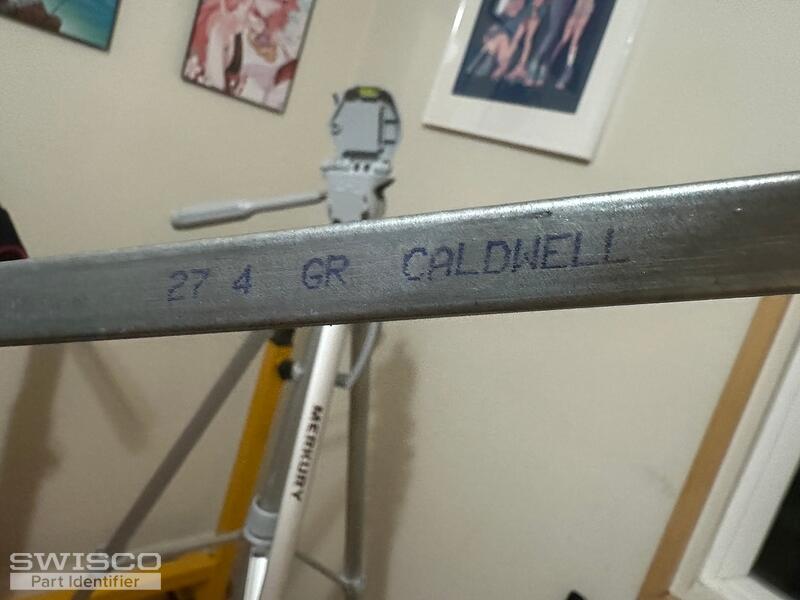

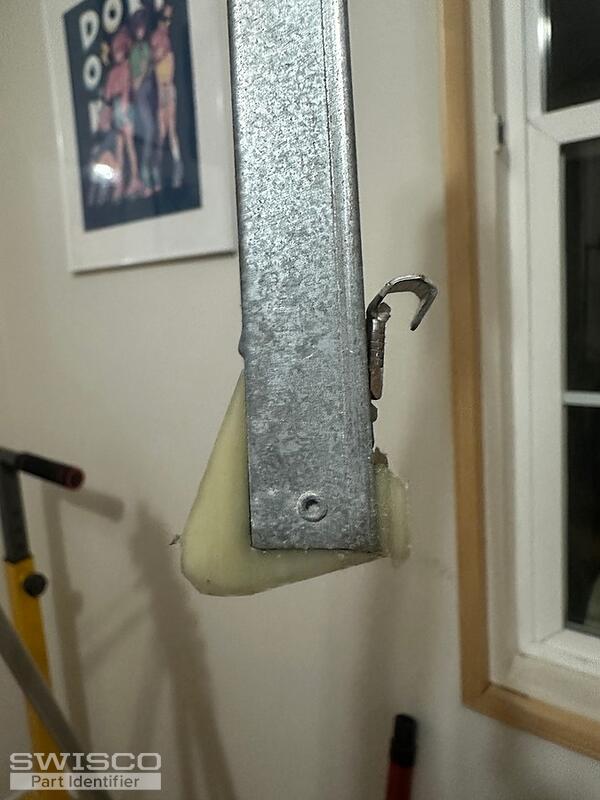

There are no markings on my counterbalances besides the text shown in one of the images. It looks like they might be S380 or S385 but the way the pulley attaches through the hook looks slightly different.
5 user uploaded images
4 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Hello,

Thanks for reaching out! I'll need to see a photo of the piece connecting the spring and the cord (string) in the middle of the balance to determine the correct replacement. It should be attached to the bottom of the spring.

Please let me know if you have any questions.

Quick Learner from Tustin, California

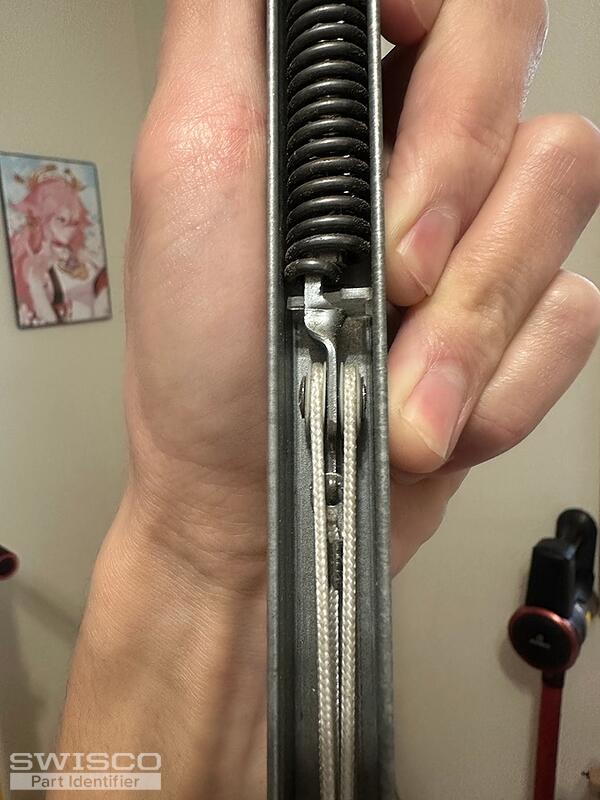

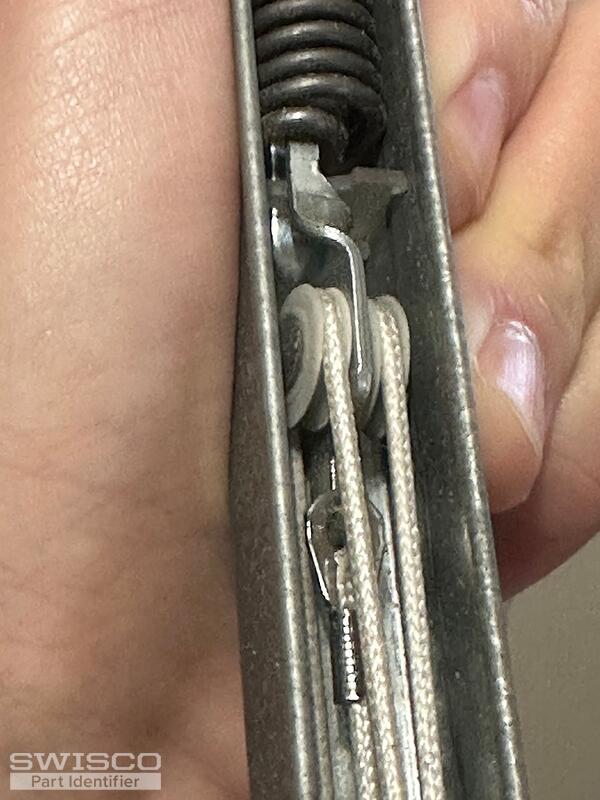

Here you go! Let me know if you need anything else.
2 user uploaded images
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for the requested photo. It looks like either the S380-28 or the S385-28 would be the best options. To narrow down the correct replacement, you'll need to measure the depth of your bottom shoe.

Our 2740 stamp will support a sash weighing 19 to 26lbs.

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.
