Home Owner from Southern California

Aug 4, 2025 2:52 pm

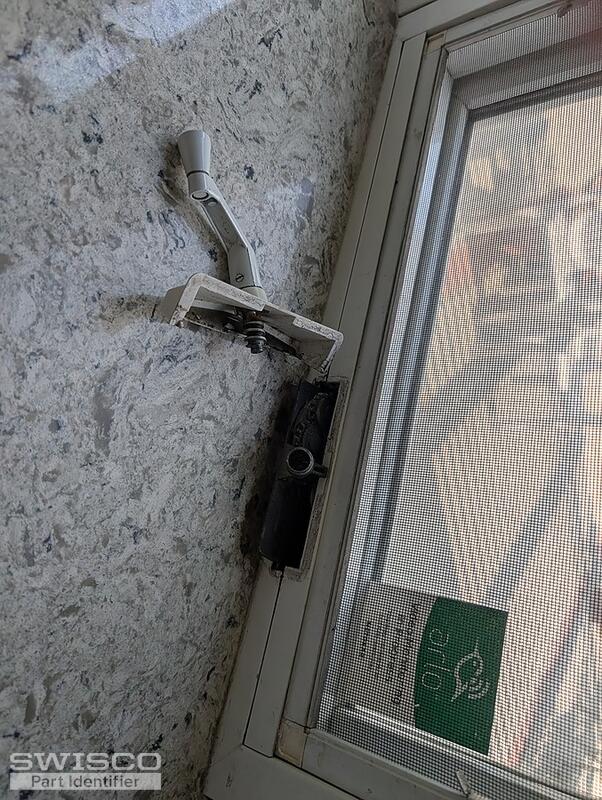

Crank handle fell off the crankcase. I can still open the window if the handle is pushed back to the crankcase but cannot close window this way.

5 user uploaded images

4 Replies

Emily from SWISCO

Aug 8, 2025 11:06 am

Thank you for reaching out to us. It looks like you need a new operator since your old one is stripped. Take a look at the 39-031 and 39-032, along with the 39-155 and 39-156. The important difference is the size of the link arm. Review the specifications and see how they compare with your old assembly.

Dimensions for 39-031

Dimensions for 39-032

Dimensions for 39-155

Dimensions for 39-156

Home Owner from Southern California

Aug 9, 2025 10:29 pm

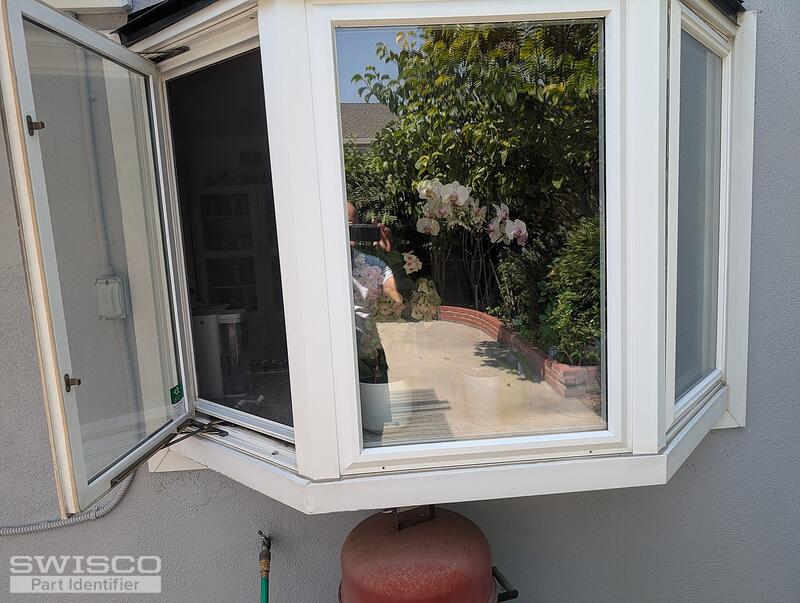

Looks like I will need either 39-155 or 39-156. The faulty crank is on the left side when I stand outside of the window looking in. Which one do I need to order?

Emily from SWISCO

Aug 11, 2025 8:19 am

The definitions of left and right differ by manufacturer, so we recommend using the side corresponding to the operator's gear as a reference for which side you need. Based on your last photo, the gears appear to be on the left side of the operator, so you'd want the 39-155.

Dimensions for 39-155
