Quick Learner

Oct 17, 2023 9:11 am

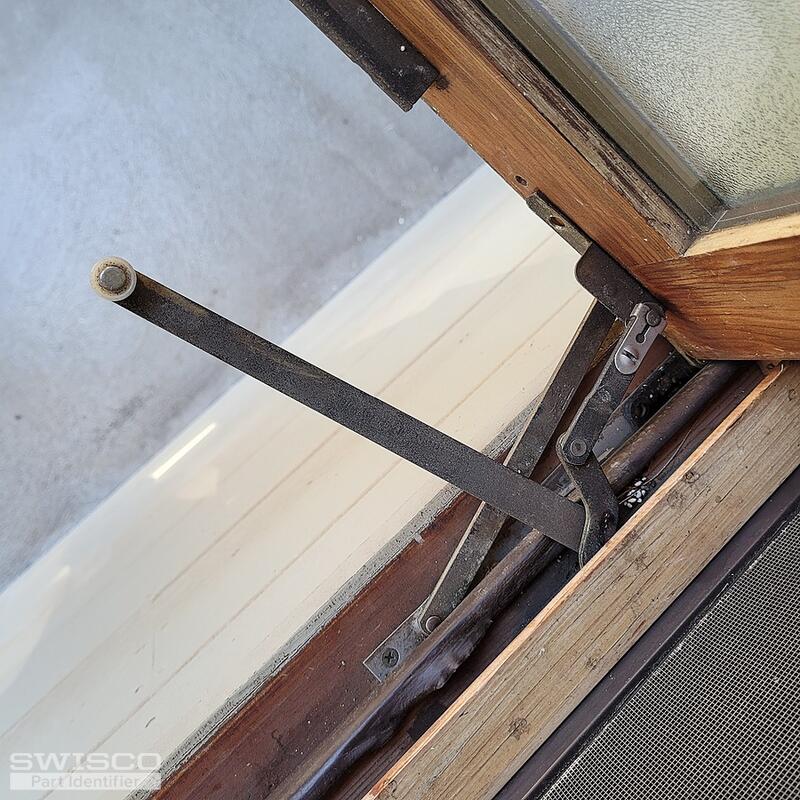

I'm seeking a 9 1/2" arm crank operator as shown in the attached images.

3 user uploaded images

4 Replies

Casey from SWISCO

Oct 17, 2023 3:22 pm

Hello,

We'd be happy to help but we would like to see a direct top-down photo of the operator arms that move the sash to compare to our inventory. It would also help if you could release the arm that attaches to the sash from the track that it rides in. Thank you!

Home Owner from Hawaii

Oct 17, 2023 5:21 pm

Here is a top view photo of the hinge...

1 user uploaded image

Casey from SWISCO

Oct 18, 2023 8:50 am

Thanks for getting back to us. Your operator resembles our 39-333 and 39-334. The determining factor will be the 2-13/16" length of the shorter link arm compared to the image below. We've also related the compatible handle and cover options on this page. We also offer the 36-048 hinge set if those parts need to be replaced as well. Take a look and let us know if you have any other questions.

DImensions for 39-334
