Product Code: 39-334

Egress Operator, Extra Short Link Arm

Name: Egress Operator, Extra Short Link Arm
SKU: 39-334
Price: 37.1 USD
Availability: InStock

$37.10

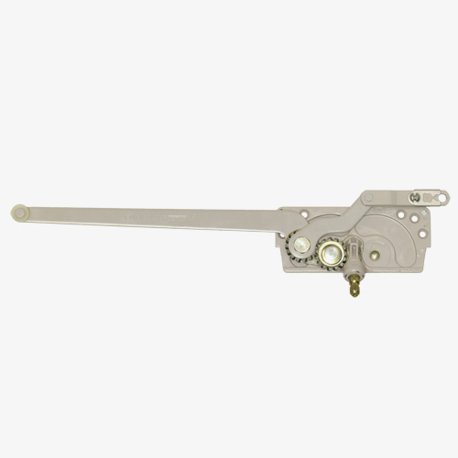

Egress Operator, Extra Short Link Arm Image

Quantity	Price
1-24	$37.10/ea
25-49	$36.60/ea
50+	$35.99/ea

Please Note: Bulk pricing applies only to purchases of the same option

Quantity

Add to Wishlist

Product Description

This is a genuine Truth Hardware EntryGard operator. This dual arm crank operator is used to open and close wood, metal, and vinyl egress casement windows.

See SWISCO product 39-333 for the opposite handed version of the operator.
Will provide a full 90 degree window opening.
11/32" spline; handle sold separately.
Manufactured of high-pressure die-cast zinc for operator base; hardened steel drive worm and gears.
Features dual arm action to push sash open while pulling hinge side of the sash to the open position.
Link arm measures 2-13/16" overall with an upward offset.

Casement operator

Need hinge left operator from exterior. Bronze or dark bronze color. Truth entry gard dual arm egress type. Window is a 30+ year old wood casement, cannot identify manufacturer. I am a Harvey windows & doors service technician and work on windows every day. Trying to help a friend that just boug ... (cont.)

window operator

Hello, I need 2 of these window operators. Thanks!

New Entry Gard Truth window crank assembly needed

Numbers found are; 30849 30470 LH 40471

Casement window operator LH

Stamped with the following info: Long arm: Entry Gard TRUTH 30470 L.H. Short arm: 30849 (NOTE: link is 2 13/16 inches) Base plate: TRUTH Pat. 1982 I thought the Entry Gard 39-031 would be the match, but the short arm link dimension is longer (4 7/16 in) than what I am replacing. The Egress extra sh ... (cont.)

Truth entry gard

I have quite a few to replace. Some RH some LH
