Crank operators
Quick Learner from California
Jun 9, 2023 10:08 am
Hello Would you please advise on which crank operators would fit my Truth arms. I was looking at the conversion kits but open to whichever will fit the new arms. Thank you

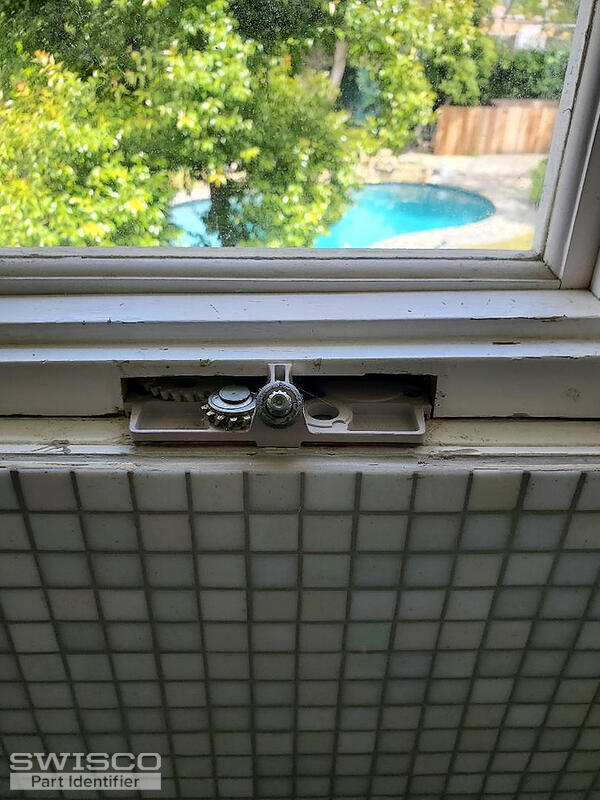

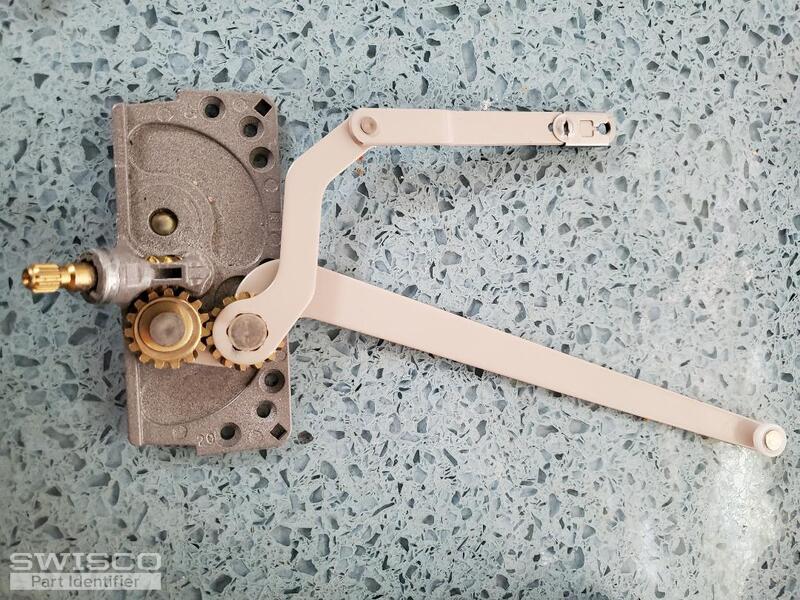

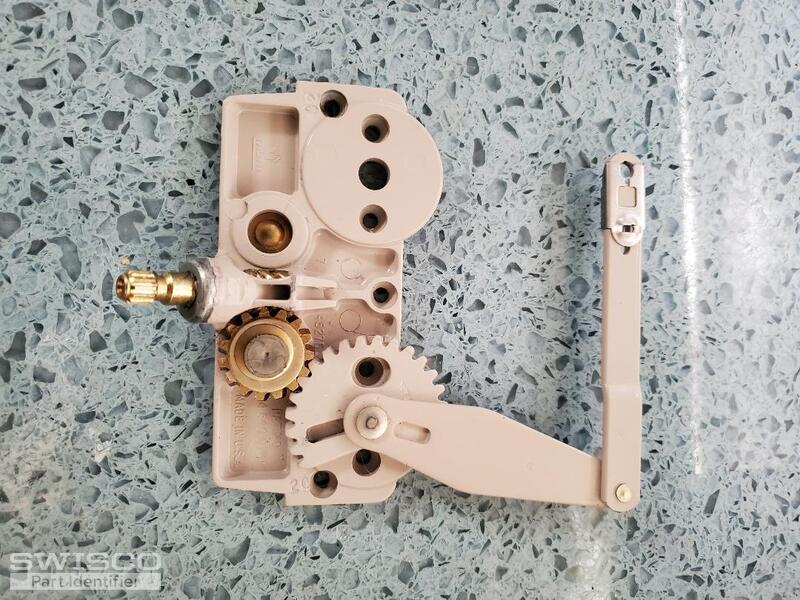

4 user uploaded images
2 Replies
Bob from SWISCO
Jun 9, 2023 10:57 am
Hello there. For the dual-arm operator, start by looking at our 39-156. Compare the dimensions below, particularly of the link arm length of 3-13/16", to your old hardware. Let me know if anything differs, and if so, by how much. For the single arm operator, see if the 39-036 matches what you need. For both mechanisms, the 39-114L and 39-107 can work as new handles and covers.
Dimensions for 39-156
Dimensions for 39-036
