Crank and cover

Handy Person from New jersey

Mar 21, 2018 8:54 pm

Not sure the part number for it. It's for bay window. I do have a window locking mechanism that was part number 38-013 if that helps.

Thanks.

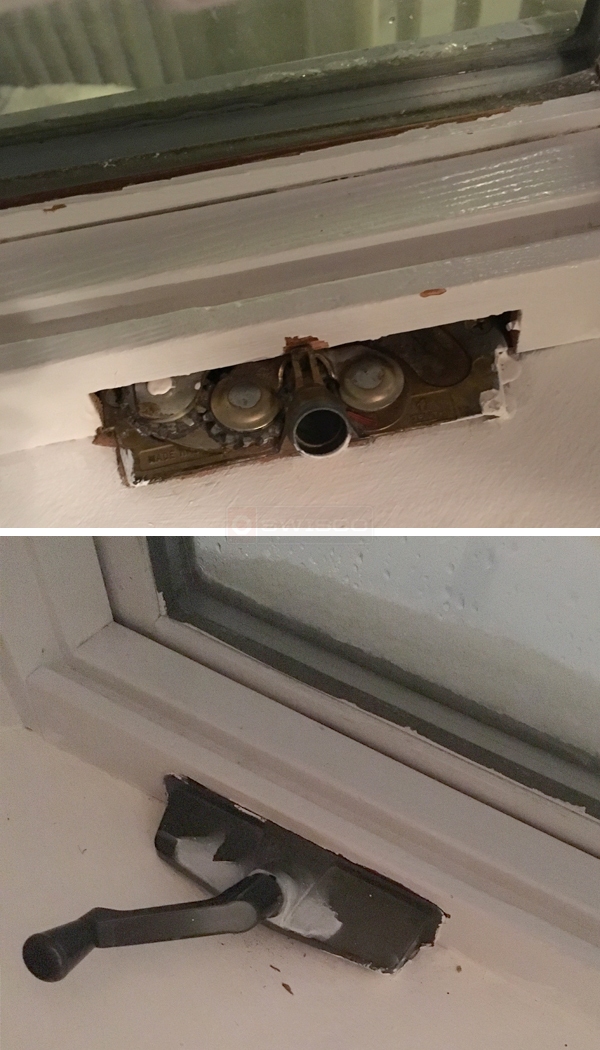

User submitted photos of a window operator.

4 Replies

Dave Sr. from SWISCO

Mar 23, 2018 3:26 pm

From this angle, I can't see your operator arms to tell which operator you need. Can you at least open the window to show the arms and the gears at the same time?

Handy Person from Marlton nj

Mar 24, 2018 4:58 pm

This better?

Thanks

Dave Sr. from SWISCO

Mar 27, 2018 1:45 pm

I believe you have either the 39-155 and the 39-156 operators used on Caradco windows. Take a look at the operators to see which way you need them handed along with the related hardware and videos.

Hint: match your crank to one of the two by looking at it from inside your window and determine which side the cogs are on.
