Crestline single hung vinyl window channel balance (bought 2003)

Question

My balance is like your 751 series with attached 15-014 shoe, except the depth of the channel. My channel balance dimensions: 1/2" wide, 7/16?" deep included the ribbed part, 20" long, code DBH02-19HD.

The window track (housing the channel balance) dimensions: 5/8" wide, 1/2" deep.

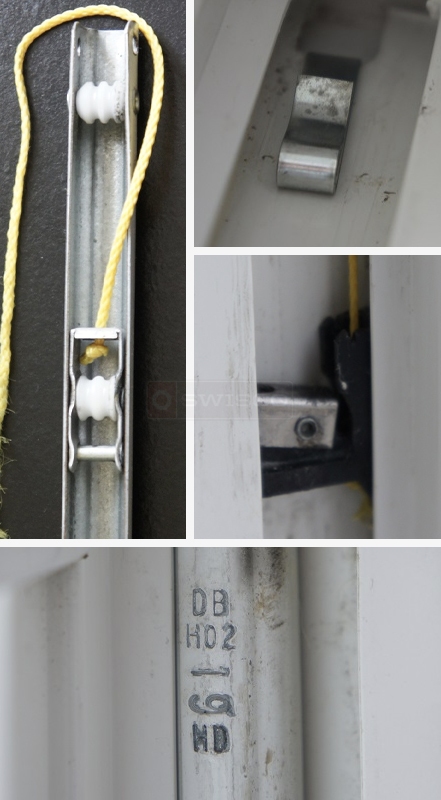

I can use the old lock shoes if your 15-014 shoe doesn't fit in window channel. In one of the attached photos is missing one rivet(broke), which has to be in the 3rd row of holes from the top of the metal channel.

I attach photos and I thank you very much for your help.

Tom · Accepted Answer

We can replace this balance, but it will have to be specially made. I will email you a special order link and price quote for 2, which is our minimum. If you'd like me to alter the quantity, please let me know here and I'd be happy to do so.
