Hello -
I ordered the series 795 to replace my old crossbow balances. When I received the parts and tried to install, it did not fit in the channel in my window.

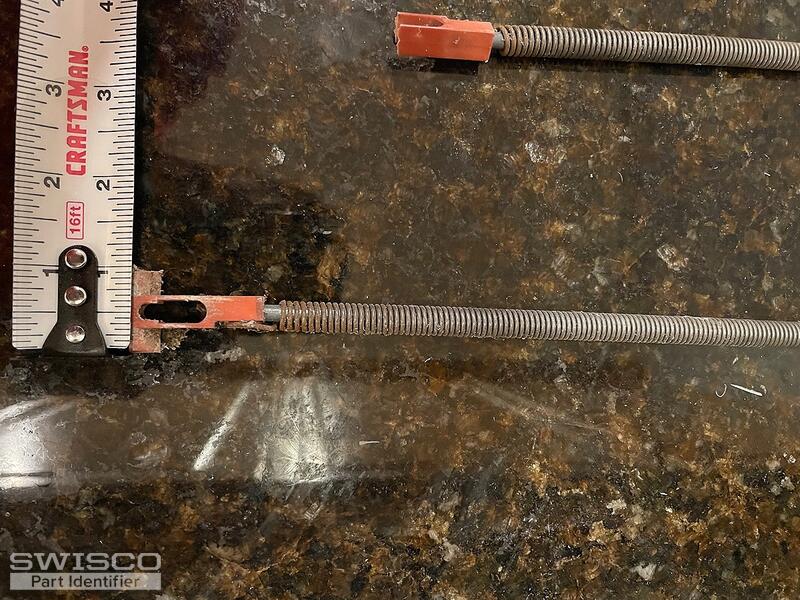

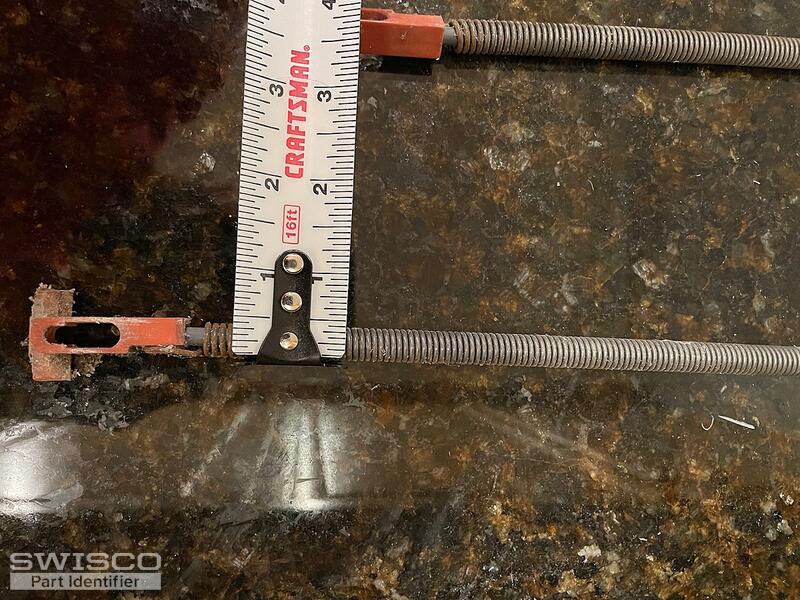

I notice that my old crossbow has a 5/8 inch spring, where it appears the series 795 has a 9/16 inch spring. The larger channel and spring of the series 795 will not fit in my window channel. Also, the T-shoe 15-194 is too thick to fit in my window channel. The thickness/depth of what I am inserting into the window must be less than 1/2 inch.
Thanks!
Crossbow Replacement - Series 795 does not fit
Handy Person from Atlanta, GA
Nov 19, 2021 11:51 am
5 user uploaded images
4 Replies
Tom from SWISCO
Nov 23, 2021 12:05 pm
I'm sorry to hear that you're having trouble. Can you confirm the size of the spring on your old balance? I actually think it's going to be 3/8", not 5/8". The red colored shoe you have here is the tell-tale giveaway on that.
Assuming that it is, can you also tell me the length you need, as well as the weight of the sash?
Handy Person from Atlanta, GA
Nov 23, 2021 5:02 pm
Sorry - I believe you are correct that the spring is 3/8. The length is 26.5 inches and the sash weighs 17.6 lbs.
Tom from SWISCO
Nov 24, 2021 9:53 am
Great, I thought so. Looking into this, I believe we can supply a replacement for this as a custom order. It is similar to the Series 795 but it has a much skinnier 3/8" ribbed metal channel. There is just one last piece of information I need, though, which is whether yours installs at the top using a hook or a screw. Both varieties are available for this skinny balance so we have to narrow that down.
Once I have that, I will email you a purchase link and price quote that you can use to add 4 to your cart.
