Crossbow Balance Needed

A quick learner from Virgina says:
May 20, 2020

I will need 8 of them

Danny

Thumbnail of the uploaded file named image.png
Thumbnail of the uploaded file named image.png
Thumbnail of the uploaded file named image.png
Profile picture of Casey
Casey from SWISCO responded:
May 22, 2020
Hi Danny,
This is an old block and tackle balance that is no longer being made. Take a look at our video below to convert your window to our S795 channel balances. Thanks for posting!
A quick learner from Virgina says:
May 23, 2020
Thank you for that information I am aware that they obsolete. Could you tell me what part I need to replace them S795 22
With 26 200 but what pivot bar would I purchase with these and pivot shoe ? I would really like to speak to somebody next week.

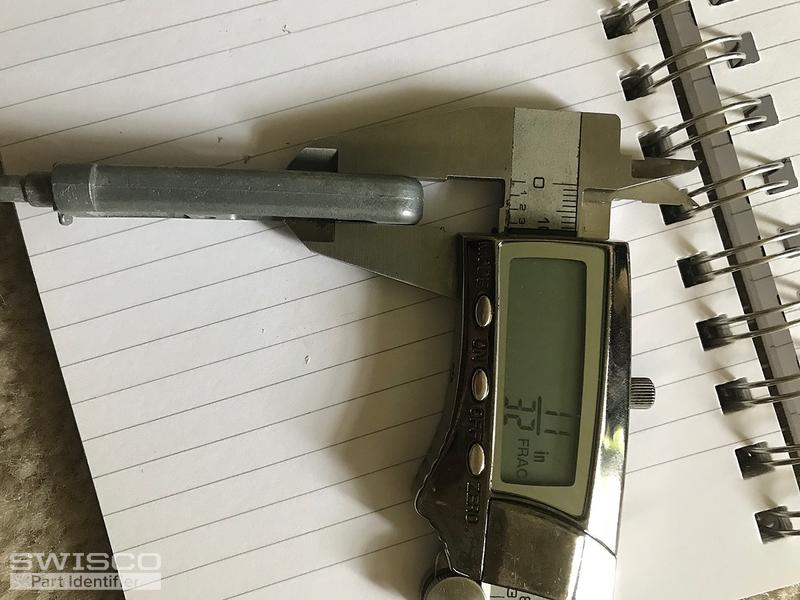

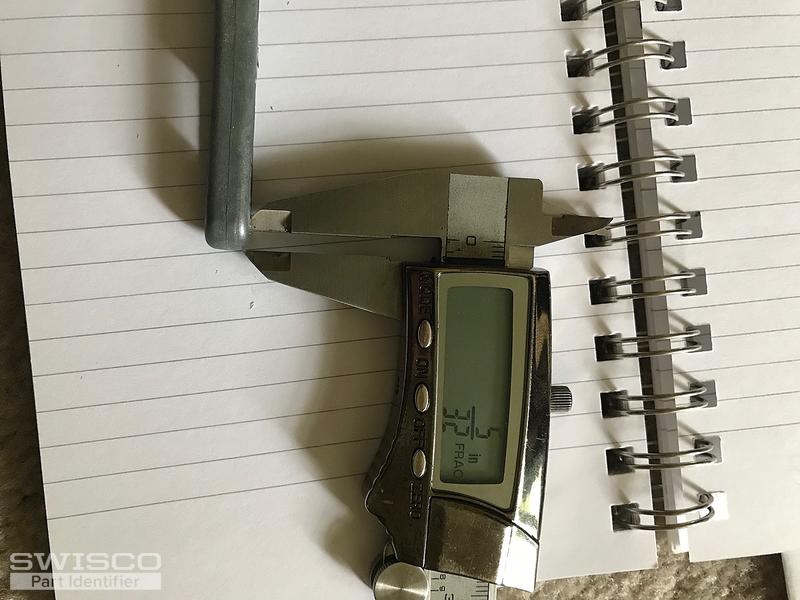

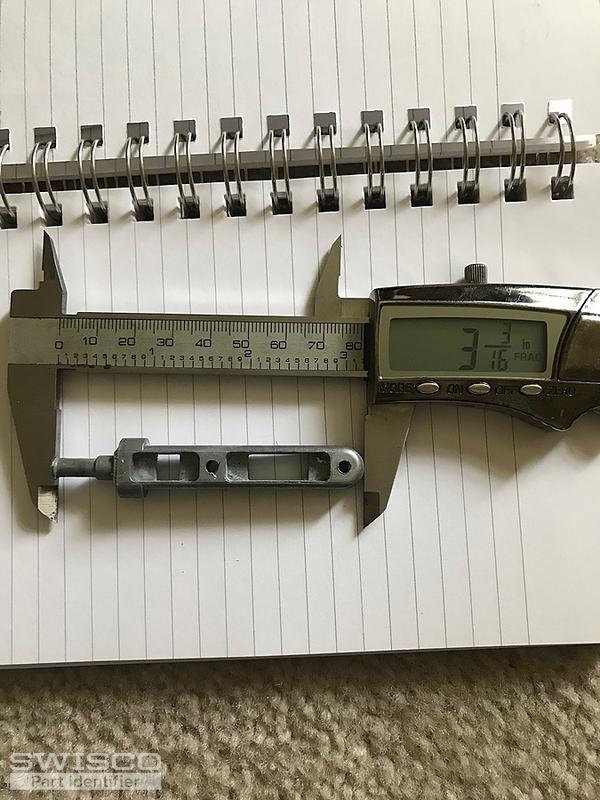

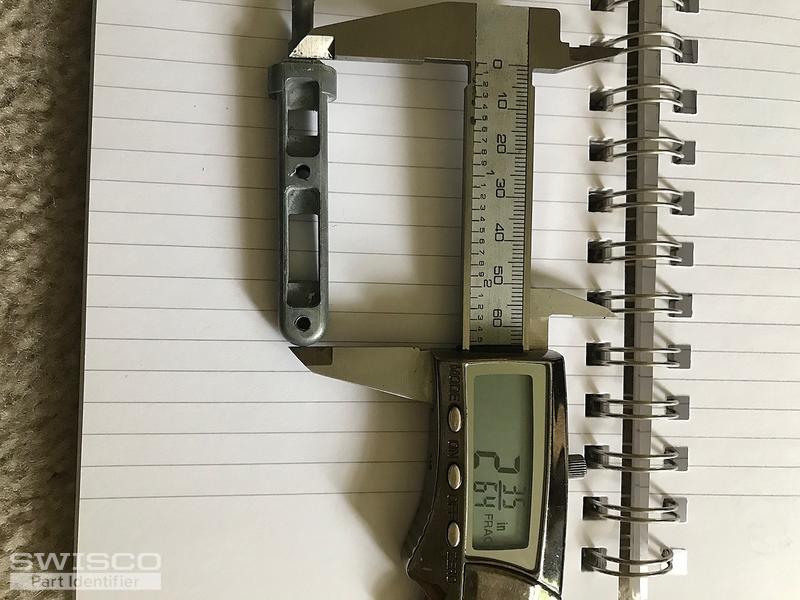

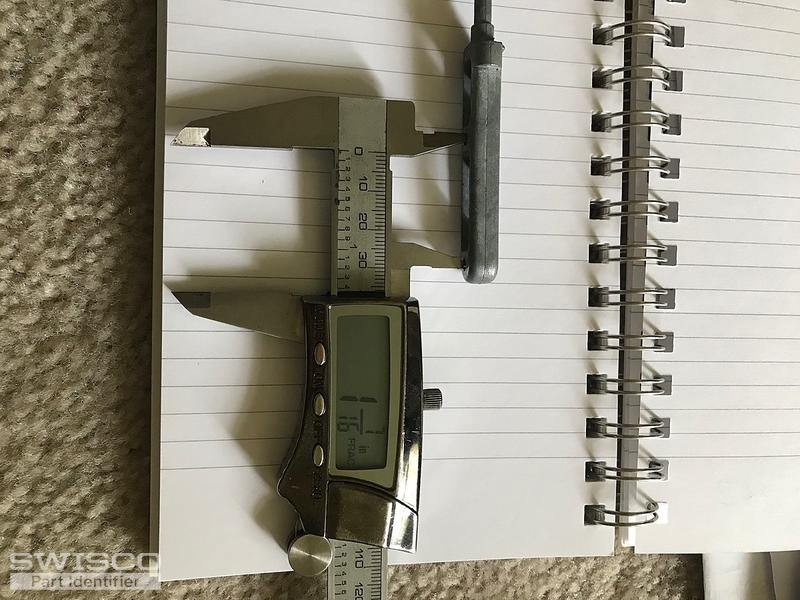

Thumbnail of the uploaded file named 581AFA28-5328-4081-83A6-0D288ACC4BBD.jpeg
Thumbnail of the uploaded file named D4600E6C-9628-4FE0-89BB-BFF48D2350B6.jpeg
Thumbnail of the uploaded file named 05D150DD-45BC-4A27-89C5-3218E7A7CBC0.jpeg
Thumbnail of the uploaded file named 53DD86E6-CA19-4054-90F6-85671CF7C3C0.jpeg
Thumbnail of the uploaded file named 52029591-DE1B-4C05-AC9A-006BFB46ACD2.jpeg
Profile picture of Bob
Bob from SWISCO responded:
May 25, 2020

Your pivot bar would be replaced by our 26-366. The Series 795 uses a T-Lock Shoe to connect to this pivot bar; in your case it will either be the 15-194 1" Shoe, or the 15-195 1-1/4" Shoe, the latter of which comes installed by default with the Series 795. To know what length balance you need, as well as the stamp option, you'll need to measure out your old crossbow balance as well as obtain the exact weight of the window sash. The video Casey posted above details all of this.
A quick learner from Virgina says:
May 25, 2020
I have the 1 1/4 does it come with the 795 ?is it extra how do I order them when can I talk to somebody before I order
Profile picture of Casey
Casey from SWISCO responded:
May 26, 2020

The S795 does come with a 1-1/4" T-lock shoe, so nothing to worry about there. Once you've gathered all of the information that Bob mentioned, feel free to contact our customer service department by calling 856-317-6263 if you'd like assistance with placing your order.
