Daniel windows

Quick Learner from Fort pierce. Florida
Apr 25, 2024 9:13 pm
29 inch long channel
9/16inch wide
Stamped 28G
Non-tilt window
Sash weigh 39lbs

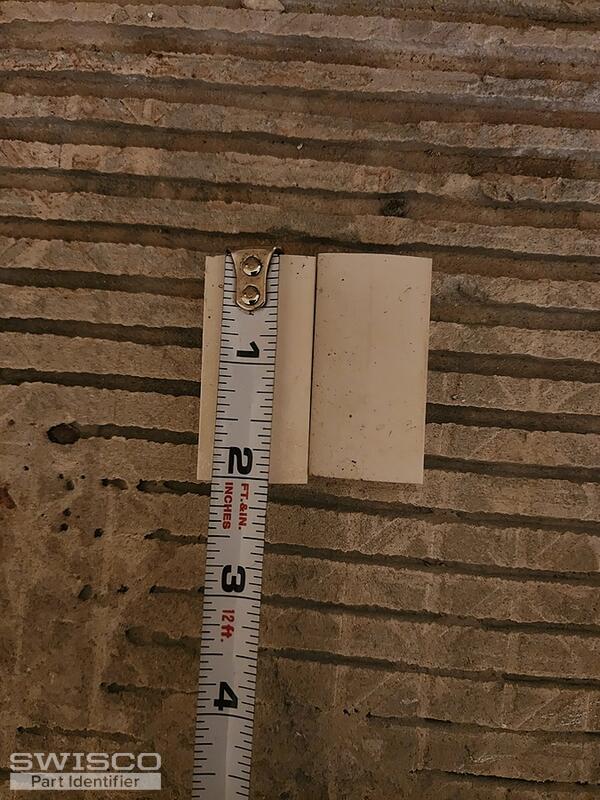

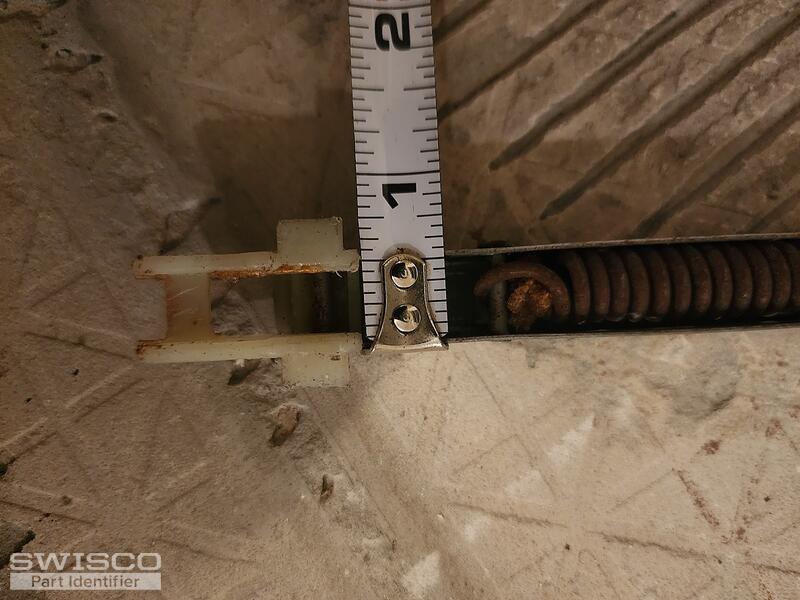

20240425_210606 20240425_210606 20240425_204736 20240425_204800 20240425_204923
5 user uploaded images
1 Replies
Jasmine
Jasmine from SWISCO
Apr 29, 2024 9:23 am
SWISCO
EXPERT

Thanks for reaching out! Your channel balance appears to be either the S380-29 with a 1" shoe depth or the S385-29 with a 1-3/32" shoe depth. To determine which series you need, you'll need to confirm the measurement for the depth of your bottom shoe.

Since your balance is stamped with a 28G and the sash weighs 39lbs, I would suggest using the 2865 stamp option.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.

I'm sorry to say we do not sell a replacement for the plastic piece you have pictured here.
