Defective Balance Replacement

A home owner from Round Rock, Texas says:

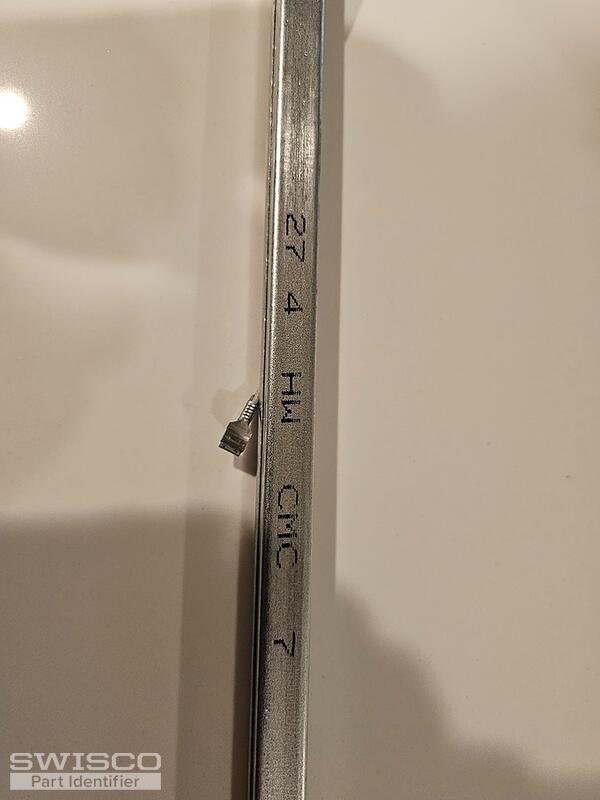

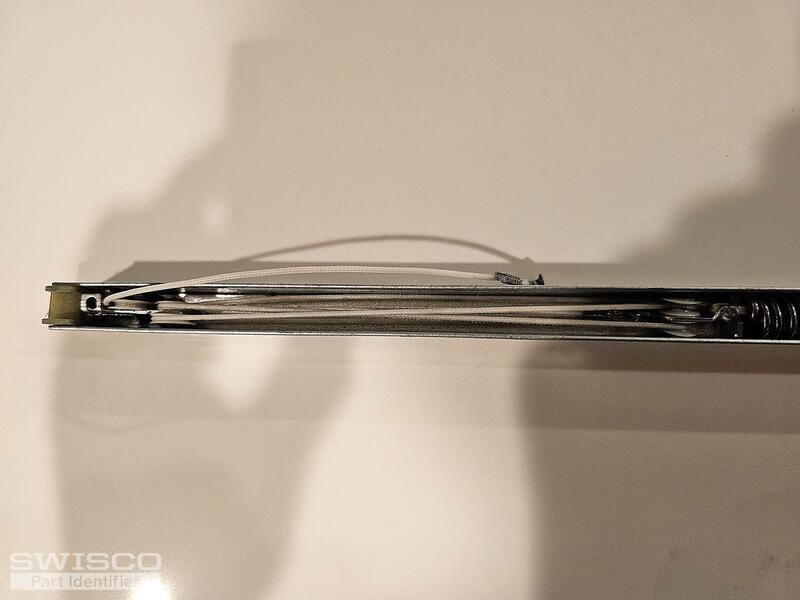

I am looking to replace some defective channel balances. Photos of one of them is attached. The channel balance without the plastic end pieces is 28 inches long. On the side of the balances, there are codes "27 4 HW CMC 7" and "27 4 GW CMC 11".

Any help is greatly appreciated!!

Chuck

Thumbnail of the uploaded file named 20231031_164228.jpg
Thumbnail of the uploaded file named 20231031_164208.jpg
Thumbnail of the uploaded file named 20231031_164222.jpg
Thumbnail of the uploaded file named 20231031_164238.jpg
Thumbnail of the uploaded file named 20231031_164245.jpg
Profile picture of Jasmine
Jasmine from SWISCO responded:

Hi Chuck,

Your balances look like they could be either the S380-28 with a 1" shoe or the S385-28 with a 1-3/32" shoe. To determine which series is needed for your window, look over the dimensions from the diagram below to confirm the depth of your bottom shoe. If either measurement does not match; I'll need to know the exact measurement of your shoe.

You'll need to select the 2740 stamp option.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
