Do I have a Series 400 Balance?

Start a new Discussion

Distributor from LAREDO, TEXAS

Sep 21, 2011 4:27 pm

IM LOOKING FOR PARTS FOR A WINDOW. I THINK ITS YOUR 28" SERIES 400 SPIRAL BALANCE AND THE TOOL FOR IT.

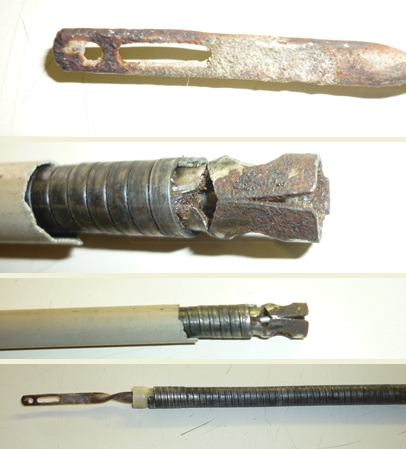

User submitted photo of their spiral balance.

15 Replies

Paul from SWISCO

Sep 22, 2011 2:24 pm

Good Morning,

If your plastic tube measures 3/8" in diameter and the length of your tube is 28", the S400-28 should be your replacement.

The 75-005 Charging Tool would be the tool to use.

Distributor from laredo,texas

Sep 22, 2011 3:14 pm

the piece of brass in the close up view bottom of the balance...what is the purpose of it and does it come off.... My customer says his don't have it and just want's to make sure it can come off if needed....

Paul from SWISCO

Sep 23, 2011 9:20 am

This is what is referred to as a "bowtie brass fitting"; it is not supposed to come off.

The fitting locks into the sash fitting, allowing the window sash to operate.

Distributor from laredo, texas

Sep 23, 2011 12:42 pm

do you have a balance without the bowtie brass fitting?

Paul from SWISCO

Sep 26, 2011 2:24 pm

Can you submit a few photos of a balance that does not have a damaged end (where it hooks to the window sash)?

Distributor from LAREDO, TEXAS

Oct 5, 2011 3:18 pm

I ORDER 28" SERIES 400 SPIRAL BALANCES FOR SOME WINDOWS BUT THEY DIDNT FIT. AS YOU CAN SEE FROM THE PICTURES THEY ARE VERY SIMILAR. THEY CURVE STARTS AFTER 1 INCH AND THE SLOT IS TWICE AS WIDE N LONG. PLEASE LET ME KNOW IF YOU HAVE THESE BALANCES AND IF ITS THE SAME TOOL.

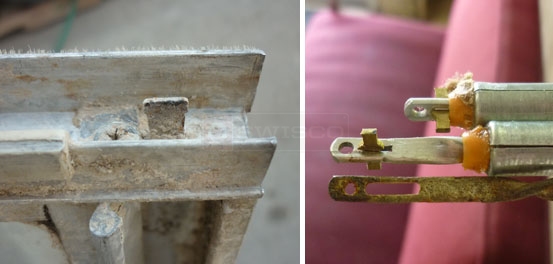

User submitted photo of their window sash and support balance.

Paul from SWISCO

Oct 6, 2011 11:17 am

Now that I see the picture of the sash I see how your original balance works. I originally thought that you had a type of S400 style balance but now I see that someone must of customized the balance to work with this window. I have never seen your balance before and none of the balance manufacturers make a balance that would fit your needs.

Your only option to repair this window would be to customize the S400 balance you ordered to work with your window. Otherwise you may have to end up replacing the window.

Quick Learner from laredo,texas

Oct 18, 2011 3:03 pm

paul would your company be able to make the slot bigger on the series 400 without the brass bow tie?

Tom from SWISCO

Oct 20, 2011 9:22 am

Yes, we can cut a slot in the balances for you.

Was the tube length measurement on your previous order correct? I'm seeing that it was 28".

Please confirm and I can get the ball rolling.

Distributor from LAREDO, TEXAS

Oct 20, 2011 9:54 am

YES SIZE IS PERFECT... MU CUSTOMER MADE THE SLOT LARGER AND IT WORKED... IT'S JUST TO TIME CONSUMING FOR HIM AND HE DOESNTT HAVE THE TOOLS... WHAT WOULD BE THE BEST WAY TO GET THE EXACT SLOT?... SEND YOU A SAMPLE OF IT....OR JUST TAKE PRECISE MEASUREMENTS ON THE SLOT?

Distributor from LAREDO, TEXAS

Oct 26, 2011 10:20 am

YES THE 28" WORK FINE ITS JUST THE SLOT THAT NEEDS TO BE TWICE AS WIDE AND LONG..PLEASE LET ME KNOW WHAT INFORMATION YOU NEED TO MAKE THEM

Tom from SWISCO

Oct 26, 2011 2:50 pm

Can you please give us the size of the slot?

Distributor from laredo, texas

Oct 28, 2011 11:22 am

the slot measure .085 in x .360 in. please let me know if you can make it and how much will each slot cost.

Tom from SWISCO

Oct 31, 2011 2:24 pm

Thank you for your patience.

We can custom punch the spiral balance tips for you. I'm going to email you a purchase link that you can use to place an order on our website.
