Door Handle

Quick Learner from USA

Aug 28, 2024 10:02 am

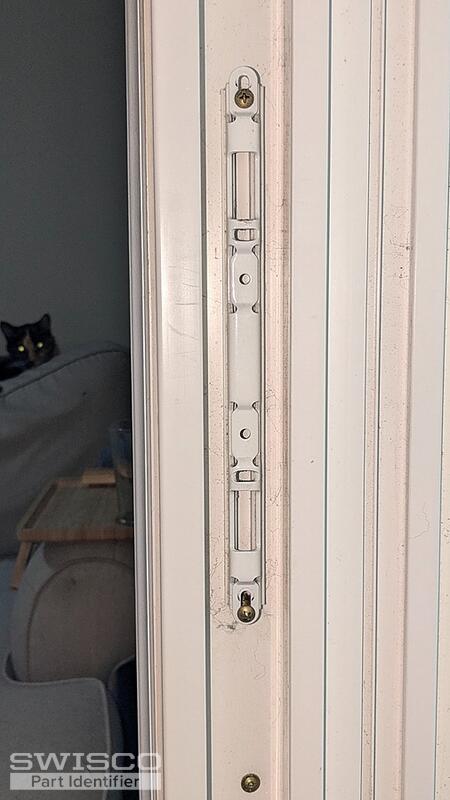

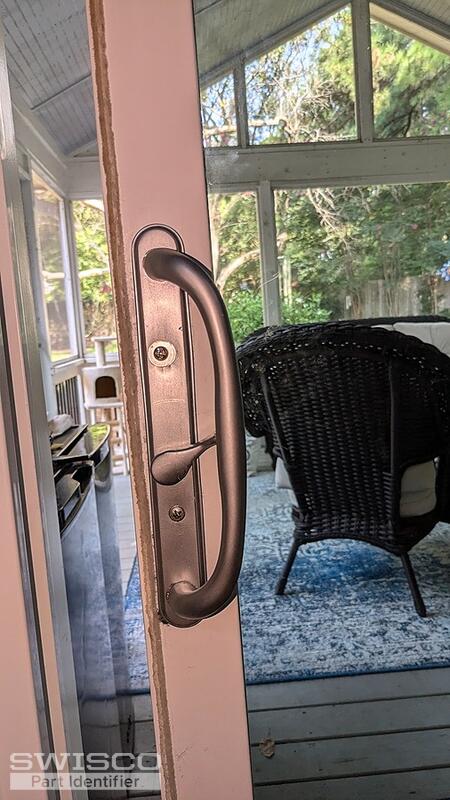

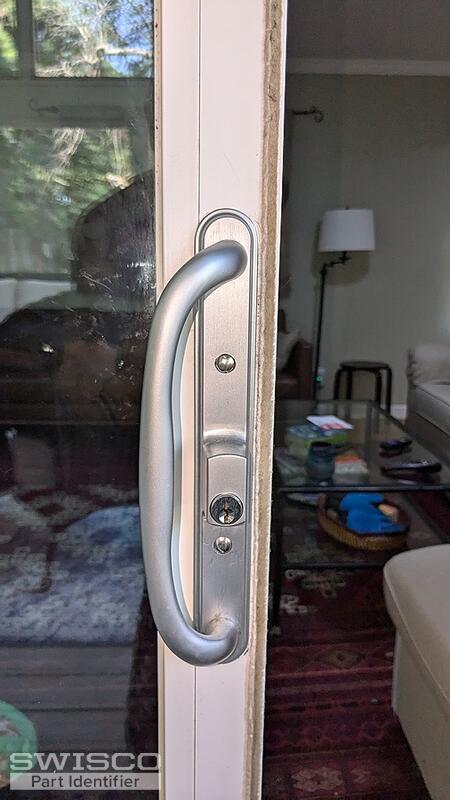

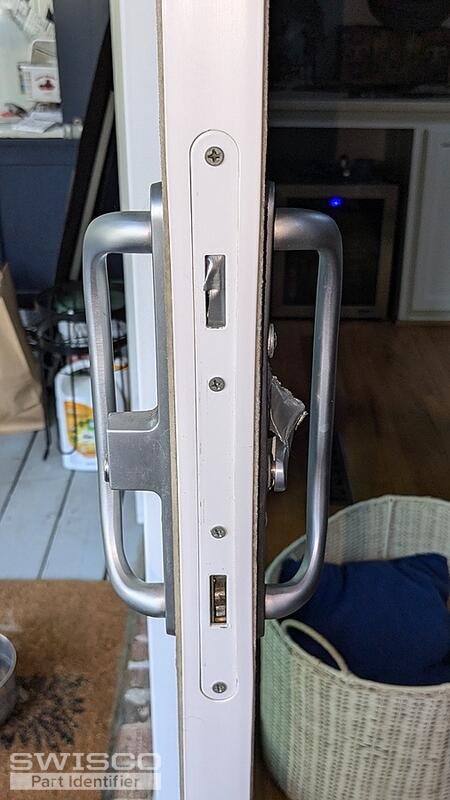

I have an Atrium sliding patio door that was installed during a remodel. The handle/locket failed once and bought parts and tried to fix it but think I did more harm than good. I am attaching shots of the frame bracket and the internal door locking plate. I don't care really what style but I want to buy correct replacement handle, door lock and internal door lock mechanism and give it to a door specialist to install. Thanks for help.

4 user uploaded images

3 Replies

+ Add a Comment

Tom from SWISCO

Aug 28, 2024 10:42 am

EXPERT

Hello! I think we can help with this project. Before I suggest anything, though, I'd like a bit more information. That will ensure that we get you exactly the right parts for the job.

To start, can you tell me the distance between the two installation holes on the handle set, center-to-center?

Regarding the mortise, can you remove it from the door and show me a photo of it by itself?

Once I have those two data points, I'll do my best to find you a good replacement.

Home Owner from USA

Aug 28, 2024 6:32 pm

Hi Tom,

From center to center of the two holes for the handle looks to be 4".

For the mortise, I am reluctant to remove it in case I can't get it back in, which would leave the back entrance to our house with no visible lock as we are on the eve of a trip. I can try to take it out later but it would not be until September 10. Any thoughts?

Tom from SWISCO

Aug 29, 2024 11:10 am

EXPERT

Gotcha, that's totally understandable! I think I can still give you a solid analysis.

So, we don't sell anything with a 4" hole spacing, but we do have a ton with 3-15/16", which is just a hair off. 3-15/16" is a fairly common size for patio doors like yours, so you may want to double check just to be safe. I think that may be what you're looking at.

If so, my top recommendation would be the 82-087 handle set. This matches the color of the original and its thumb lever/key lock are in the same position. If your hole spacing is 3-15/16" (center-to-center) then I think this will be a winner.

And the 82-087 just so happens to be compatible with the 82-265 mortise lock. There is a very good chance this is what you have now. Give it a look and see what you think!
