Door Latch mechanism is not working.

Quick Learner from Simi Valley, CA

Apr 20, 2025 4:25 pm

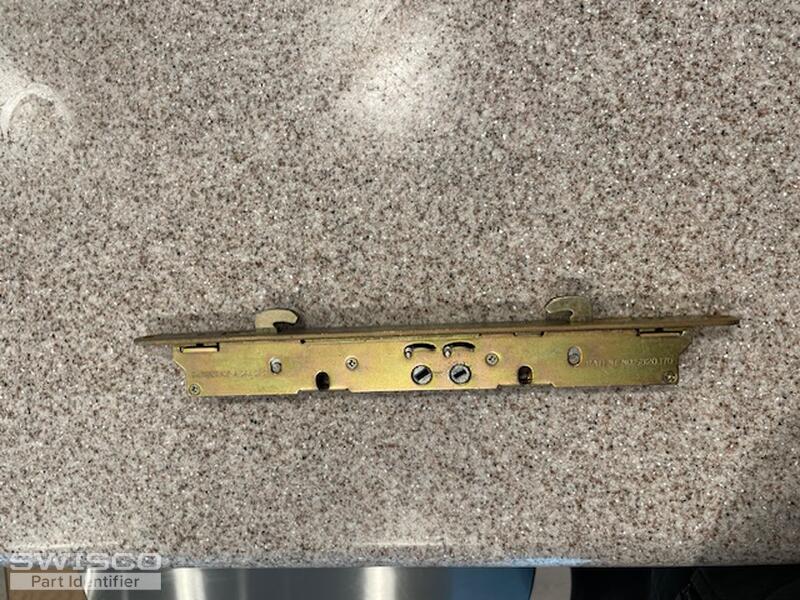

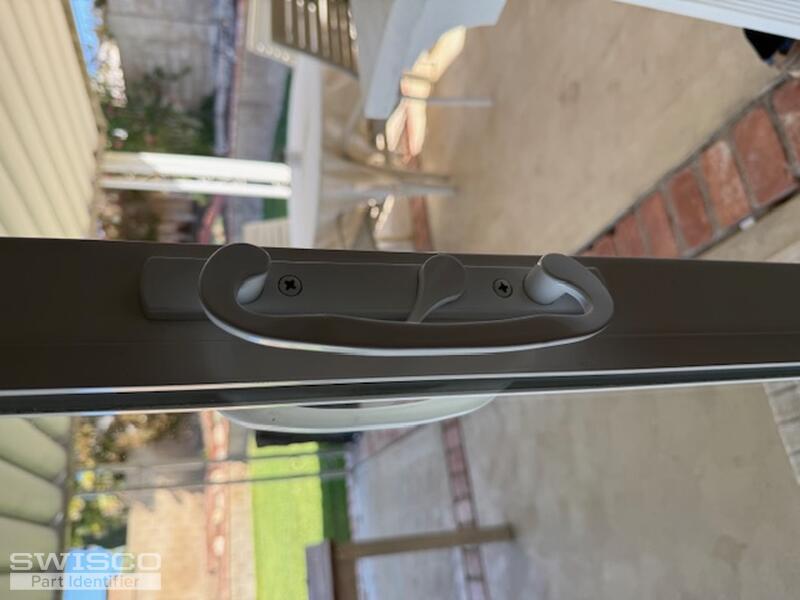

I have attached pictures per instructions showing all angles of the door handle/ latch lock device. It has a patent number:5820.170. I am looking for 2 replacements as I have 2 sliding doors with the same handle/latch. What parts do I need to order. Thank You!

5 user uploaded images

2 Replies

Bob from SWISCO

Apr 20, 2025 9:32 pm

Thanks for posting. See our 82-265 Mortise Lock, along with the 82-249 Keeper. For a handle set, see the 82-086. Let me know if you have further questions.

Alternate image for 82-265
