Dave Sr. from SWISCO responded:
February 15, 2017

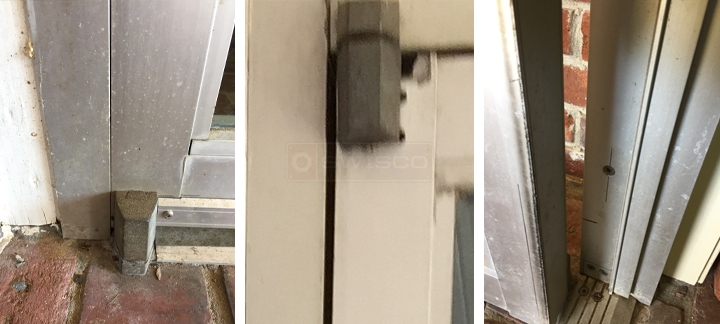

I do see that the bottom of the door is out of alignment with the frame. Try moving the bottom of the door to see if the lower bearing is worn and not keeping the door straight.
This type of pivot does not have a left-to-right adjustment. If your pivot is worn, you might need to install an all new pivot. Look at the 79-128 to start out. I believe this is a newer version of the one you show in your photos. Keep in mind you might need to drill new mounting holes to install it. Furthermore, if you do install a new one, I believe you could possible moving the lower portion of the pivot away from the side jamb. You will have to cut the threshold a little to move the location of the pivot. Look at the related video for more clarification. |
