Door handle / lock mechanism for pinnacle by Lindsay doorwall

Question

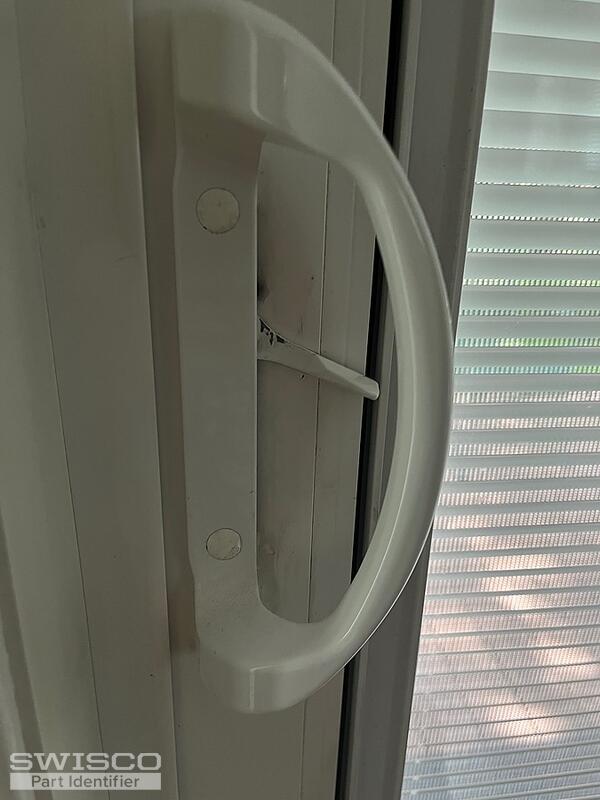

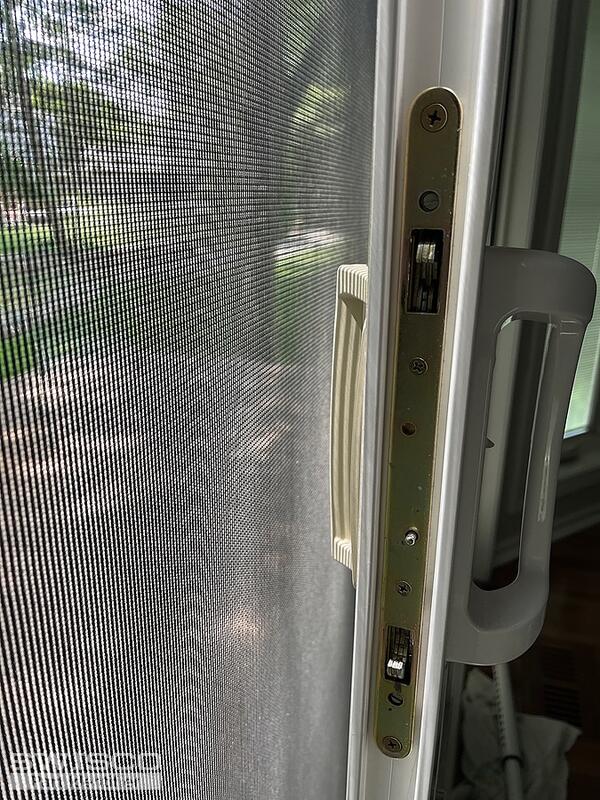

Hello. The lock stopped working on my Lindsay doorwall. I a looking to replace both the lock and the handle as I don't know which one is causing the issue.  Do you stock this part?

Tom · Accepted Answer

Sure, I think we can help with both. See our 82-030 handle and 82-265 mortise lock. As long as their dimensions match up to the original parts then they should work quite well.

Odds are it's the mortise that broke. A good way to confirm is to simply remove the handle and attempt to throw the mortise with a slotted screwdriver. If it still hangs up, then the mortise is the culprit. If it works fine, then something is wrong with the handle's thumb lever.

Hole center dimensions for 82-030

Alternate image for 82-265
