Double Hung Window Latch Release clips

A quick learner from Glassboro, NJ says:

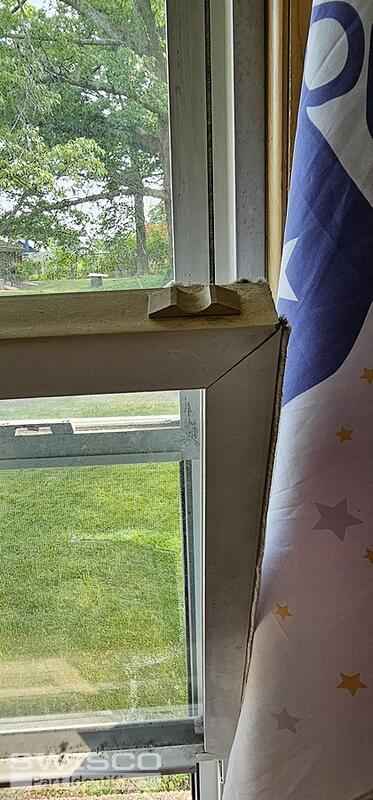

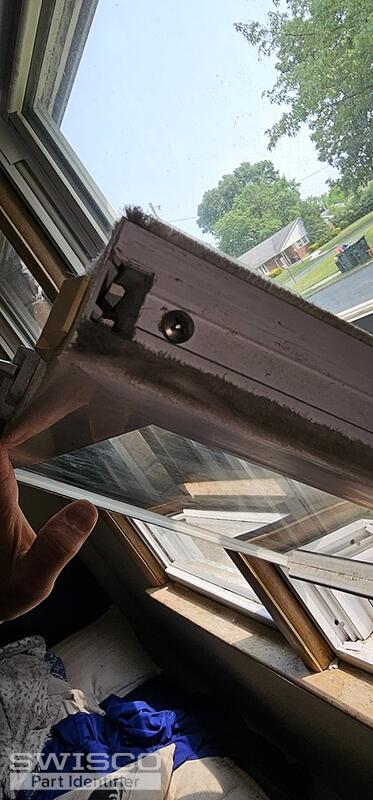

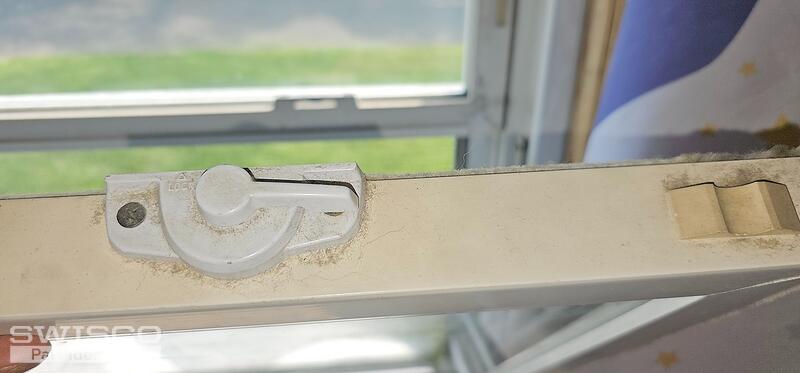

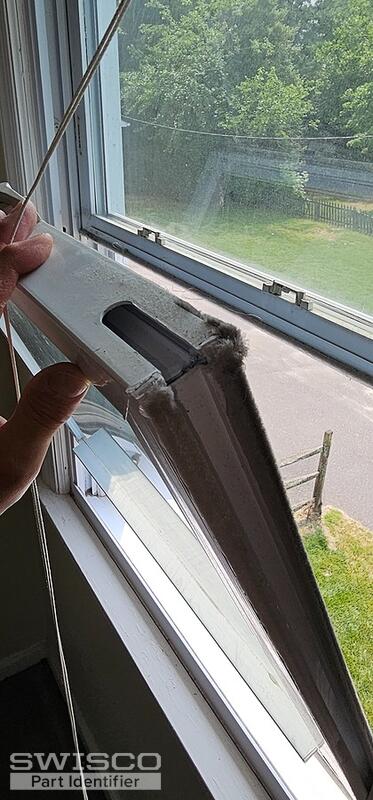

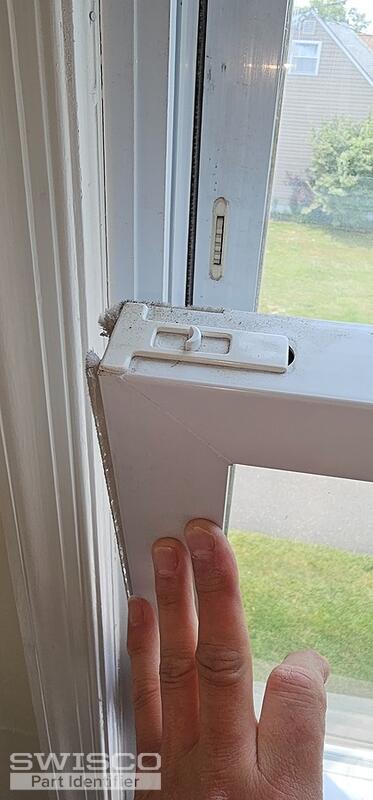

Window release clips/latch for double hung window.

Two separate units labeled 14 & 401

Please help

Carmen

Thumbnail of the uploaded file named 14 Release Latches Needed (2).jpg
Thumbnail of the uploaded file named 14 Release Latches Needed (3).jpg
Thumbnail of the uploaded file named 401 W. New ST Latches needed (1).jpg
Thumbnail of the uploaded file named 401 W. New ST Latches needed (2).jpg
Thumbnail of the uploaded file named 401 W. New ST Latches needed (3).jpg
Profile picture of Casey
Casey from SWISCO responded:

Hello,

Your tilt latch reminds me of the 26-266 shown below. Unfortunately, the opposite-handed version has been discontinued and the 26-266 will be as well once we run out of our current supply. We do not have a confirmed substitute at this time but the 26-393 is one possibility. Take a look and review the dimensions below to determine if they could fit your sash opening. If you decide to give them a try, please let us know how it works out for you. If you run into any issues, our return policy can be found here

Dimensions for 26-393
Dimensions for 26-393

As for your internal latch, we would need to see yours fully removed from the window to determine if we carry a possible replacement. Thank you.

A quick learner from Glassboro, NJ says:

Thank you Casey I will try them both! How about the other sash. There are two types.

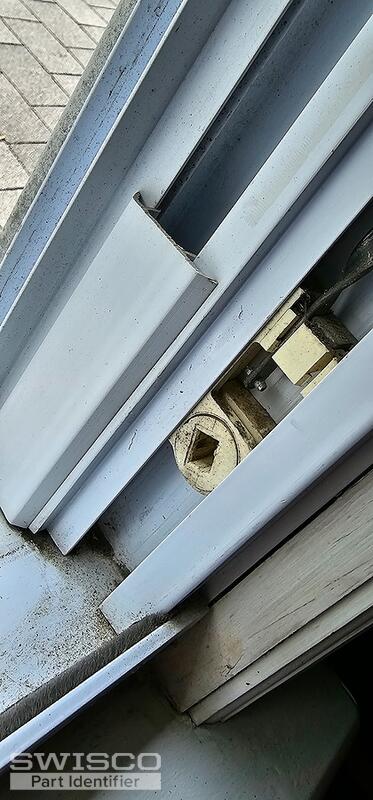

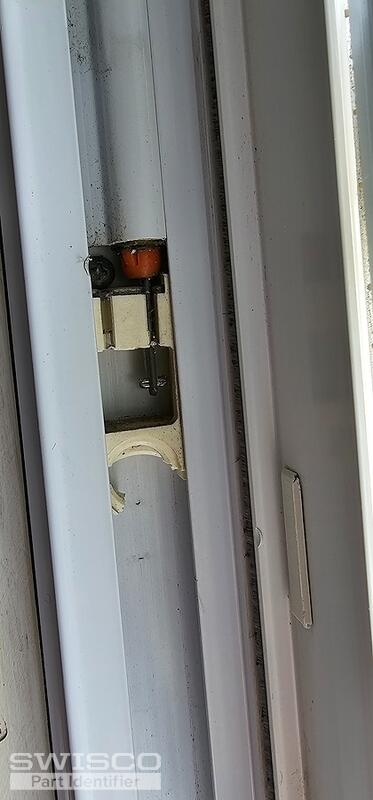

Also, I added two more picks of a broken shoe that I will need as well.

Thanks!

Carmen

Thumbnail of the uploaded file named 14 Bath Window (1).jpg
Thumbnail of the uploaded file named 14 Bath Window (2).jpg
Profile picture of Tom
Tom from SWISCO responded:

Hello, Carmen. Casey is out this week but I'm happy to help as best as I can.

Looking over her response, it appears Casey needs to see the internal latch removed from the window before she can make a recommendation for that. Would that be possible?

As for these new photos, you have an old style pivot shoe that is no longer made. I believe our 15-046 works well as a replacement but you should review our dimensions to verify.

Alternate image for 15-046
Alternate image for 15-046
