Double Hung Windows Tilt in

Home Owner from Massachusetts
Good Afternoon,

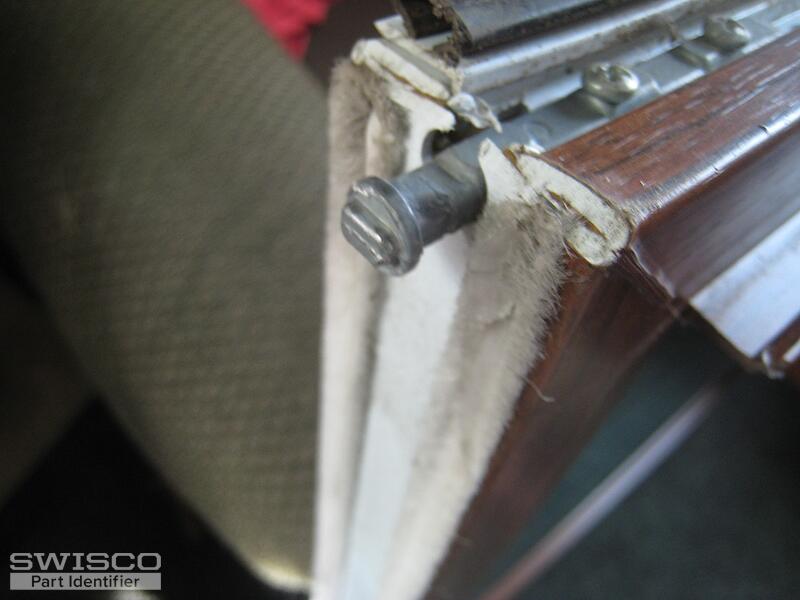

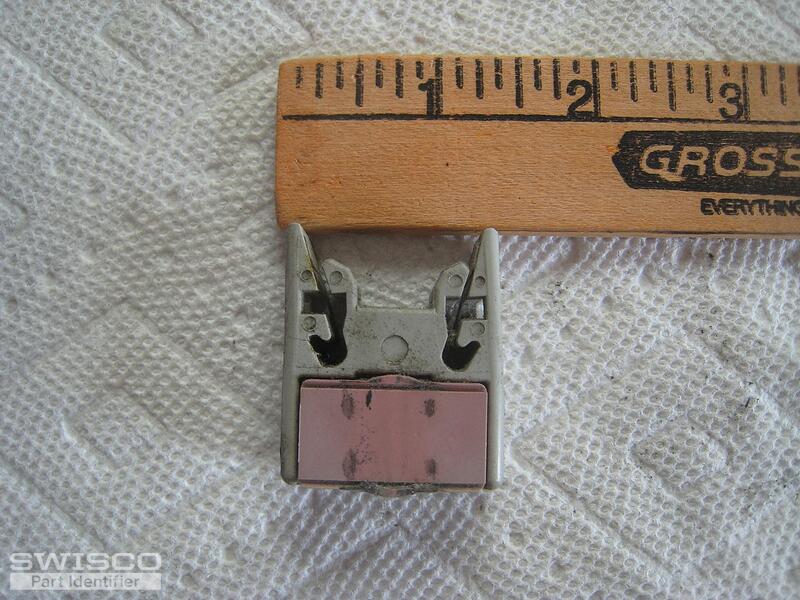

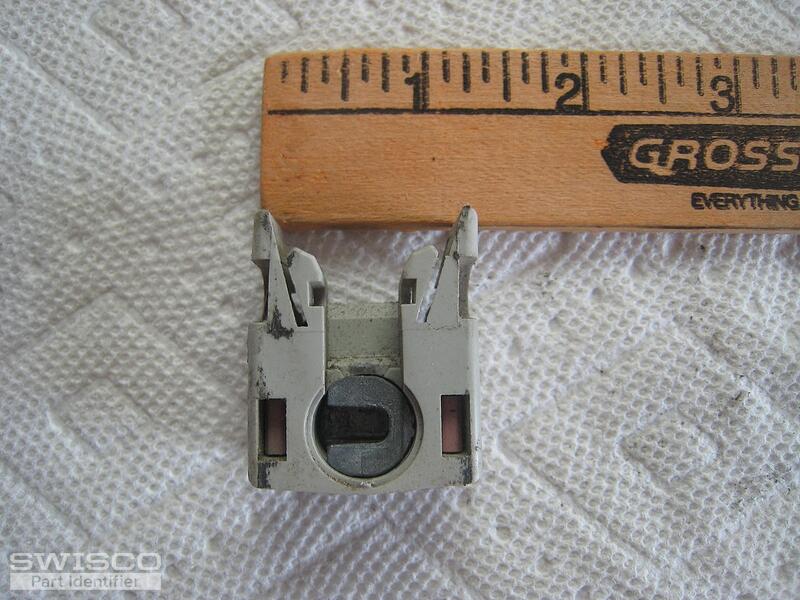

We are looking to replace the window pivot blocks and constant force springs on both sides of the window. The Window weighs 24 lbs. for that pane.

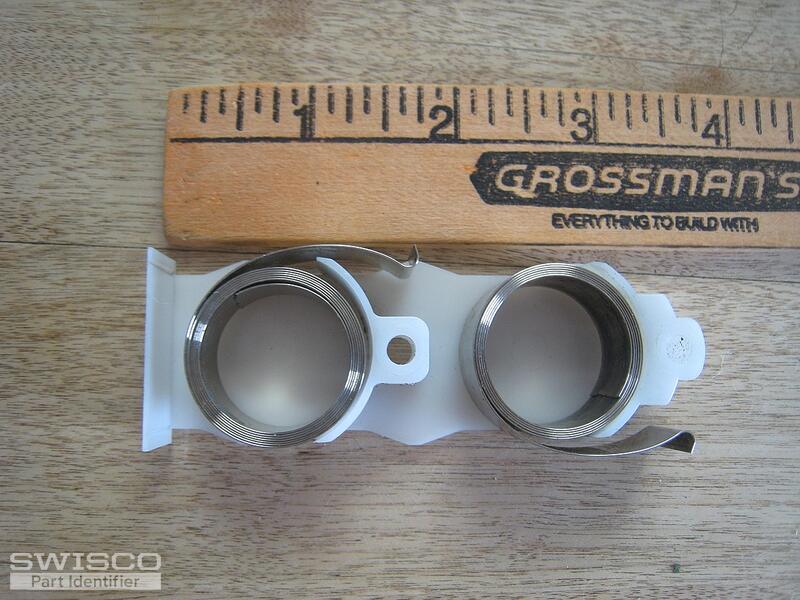

The springs are 1/2 inch deep, and 1 1/8 inches wide. There are two springs per side, and they have j hook ends. They are stamped with CL and C.

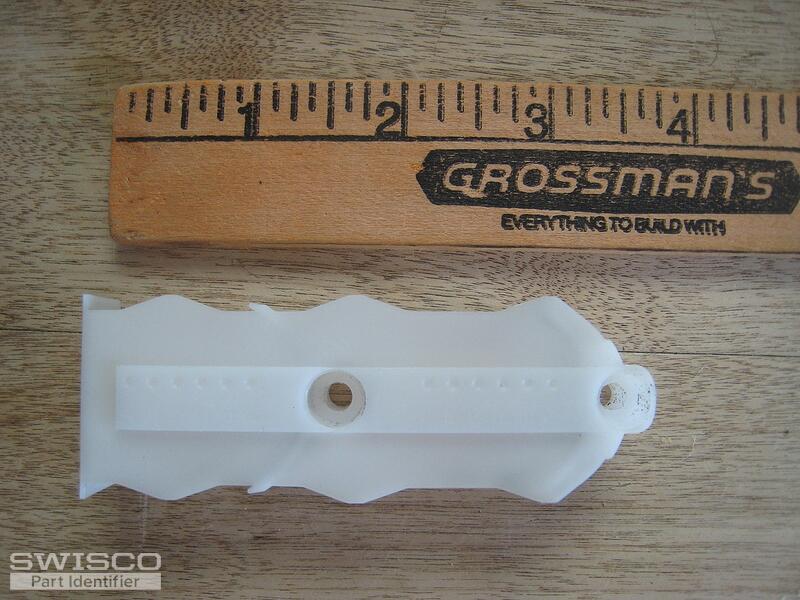

The plastic carriers are 1/2 inch deep, 1 inch wide, 3.5 inches long and have two screw holes in each one.
It is a Kensington Window product: 3510/4510 Vinyl Double Hung
32.5 inches wide, 59 inches tall.
Thanks Jon

5 user uploaded images
2 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hi Jon,

This resembles our 15-177 Pivot Shoe. This shoe connects to our Series 152 Coil Balances. I'd also recommend removing your pivot shoe and see how the dimensions compare to our 26-226. Let us know if you have any other questions. Thank you!
