Double, Pivot shoes

Handy Person from Sarasota

Oct 2, 2023 7:42 am

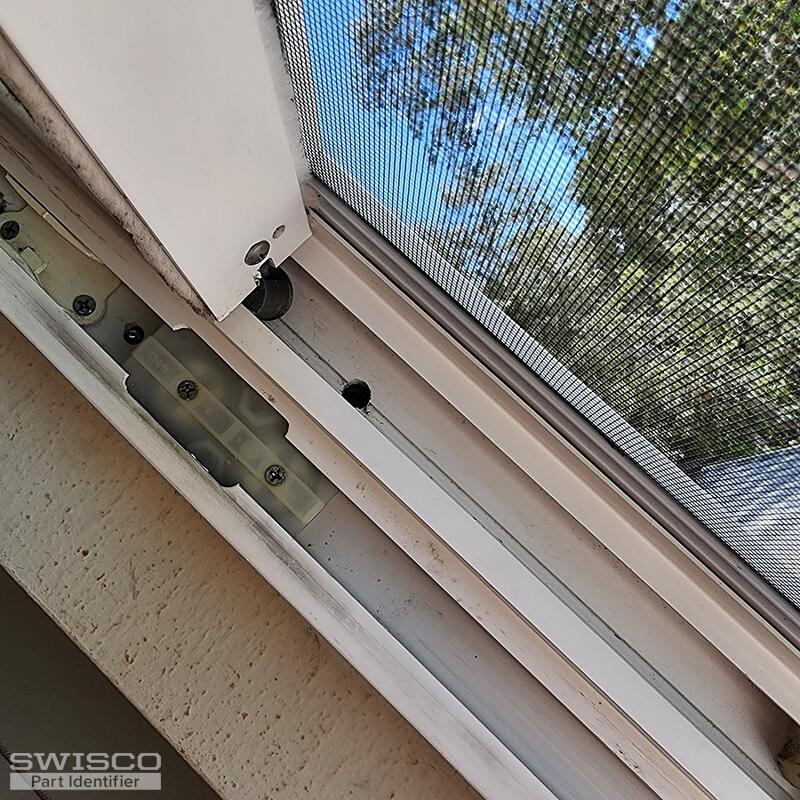

I BELIEVE it's just the plastic housing the pivot shoes sit in that is broken but I don't know what kind I need. I need whatever it is going to take to make this window functional. There were no stickers left on window identifying what series...that I could see...

4 user uploaded images

4 Replies

Lauren from SWISCO

Oct 3, 2023 12:54 pm

Hello, thank you for posting,

To further review, are you able to show us the pivot bar on the bottom edge of the sash that engages with the pivot shoe in the window channel? From there we will be able to determine the best replacement options. Thank you!

Handy Person from Sarasota

Oct 4, 2023 12:40 pm

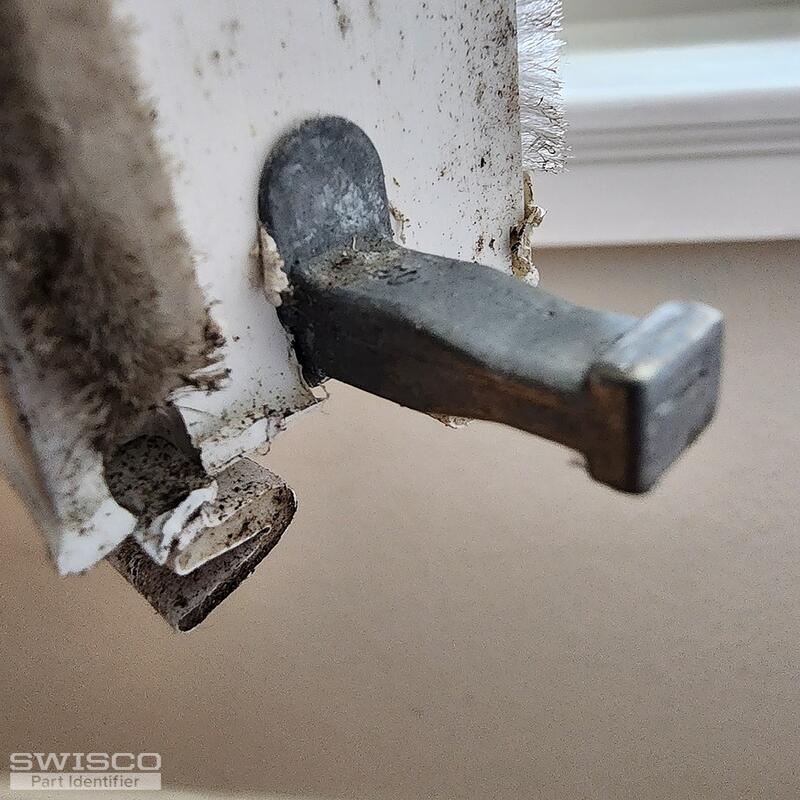

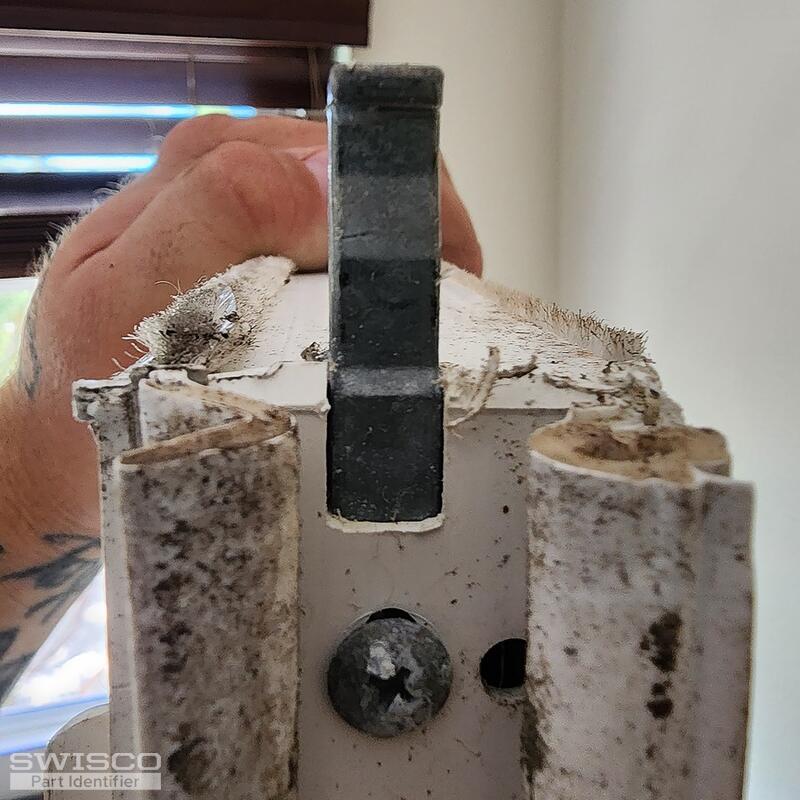

Here is the pivot bar

2 user uploaded images

Lauren from SWISCO

Oct 4, 2023 1:21 pm

Thank you,

Your balance assembly resembles an older Simonton style that is no longer made. We recommend converting the the 15-259 and Series 159 coil springs. Please review the step by step video below that details the conversion below and additional parts needed.

If it is only the pivot shoe that is broken, we also offer the 15-192 style. Please note that we have had past customers inform that they had to shave down the front aligners to get the shoe to fit in the channel. Based on the pivot bar style, you may also need to use the original metal cam and switch it out into the new shoe. Please review the dimensions below and let me know if you have any additional questions.

detail of 15-192
