.5in width

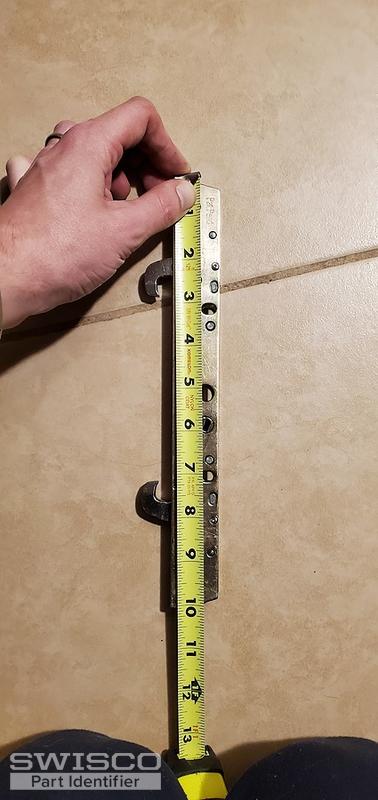

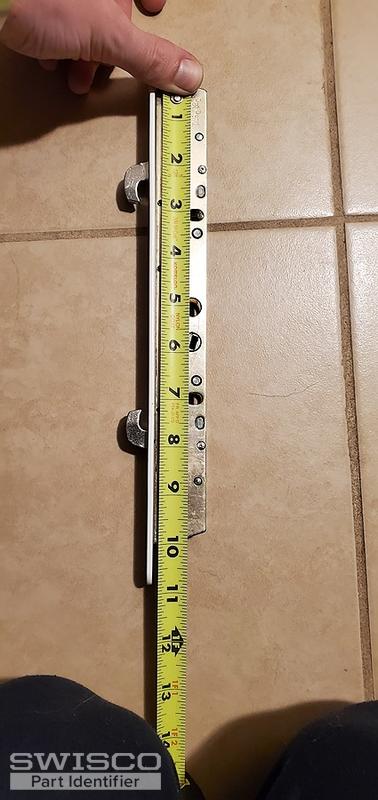

10+2/16in total length (includes extreme edge for faceplate mounting screws. 10in without mounting screw housings.
5¾in between center of each hook when extended.
Latch operation slot centered at 6¾in from "top" (hooks facing left) (4+5/16in from "bottom" hooks facing left)
Through and through mounting holes located (from their center) at 3+2/16in and 7+¹/16in from top.
Faceplate 11+¾in total length. 11in between center of top and bottom mounting screw points.
The only part that's in need of replacement is the double mortise latching mechanism itself. If I cannot get another like it, I'd consider a kit that would fit my setup. Request more info if needed. Thank you!
Very Respectfully,
David
