Double hund window piece needed
Quick Learner from Sneads Ferry, NC
Mar 18, 2025 1:15 pm
The piece I need is 1 3/4 inch long and the face is 3/4 inch and sits in a track that is approximately 1 1/4 inches. Or another piece that might work for these double hung windows.
2 user uploaded images
3 Replies
Quick Learner from Sneads Ferry, NC
Mar 19, 2025 12:42 pm
Double hung window piece needed. The width is 1 5/16. The length is 1 11/16 and the depth is 9/16. See photos below.
2 user uploaded images
Casey from SWISCO
Mar 20, 2025 1:27 pm
Hello,
We do not carry an exact match for your pivot shoe but our senior experts have used the 15-129 pivot shoe in the past. Keep in mind that the height of the pivot shoe is not as important as the width and thickness.
Detail of 15-129

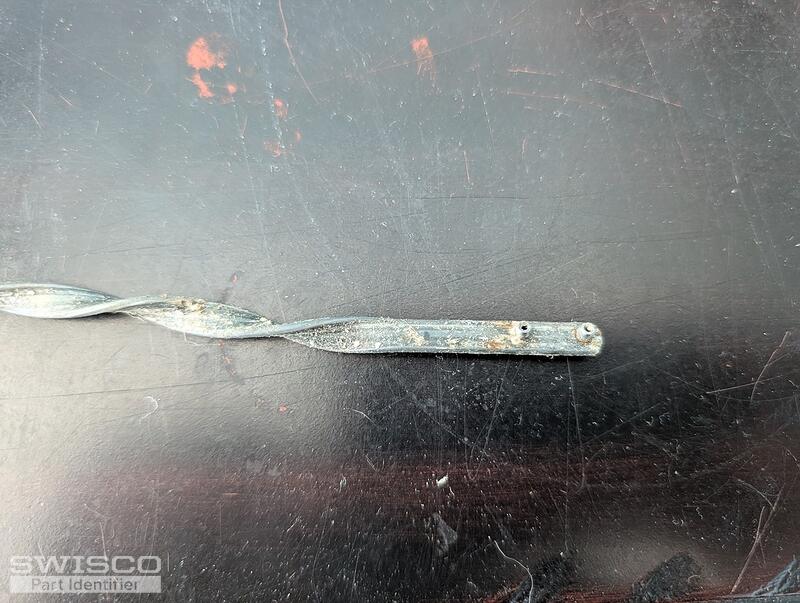

The balance resembles the S600 or S900 depending on if the housing tube measures 5/8" or 3/8" in diameter. Thanks for posting!
How to measure the tube length of the S600 spiral balance.
