Double hung window spring assembly replacement

Question

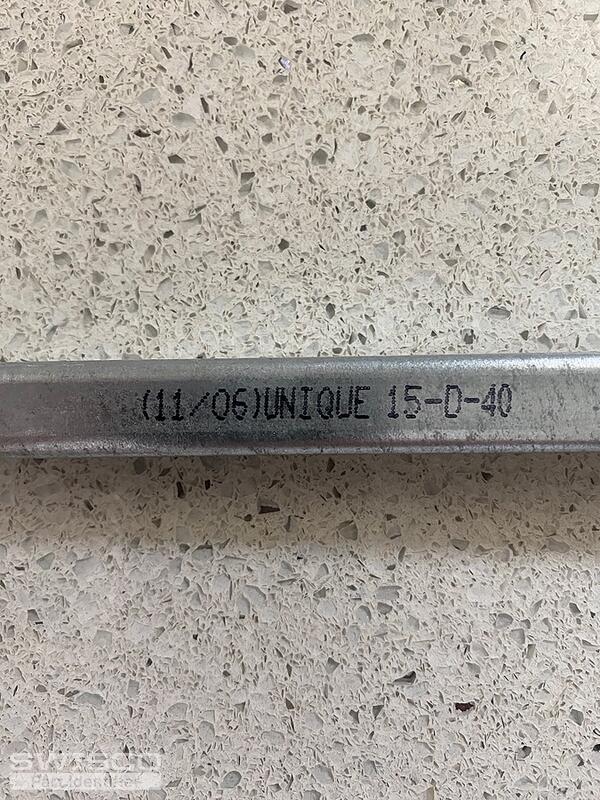

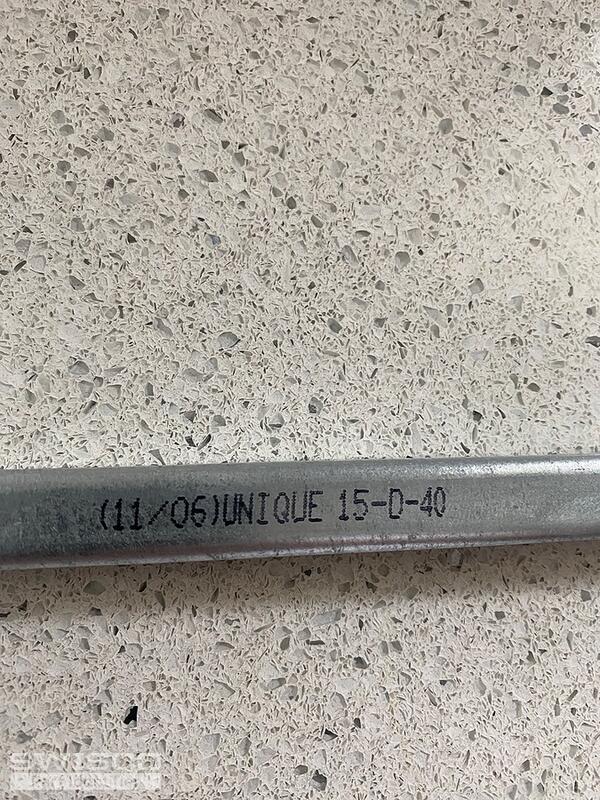

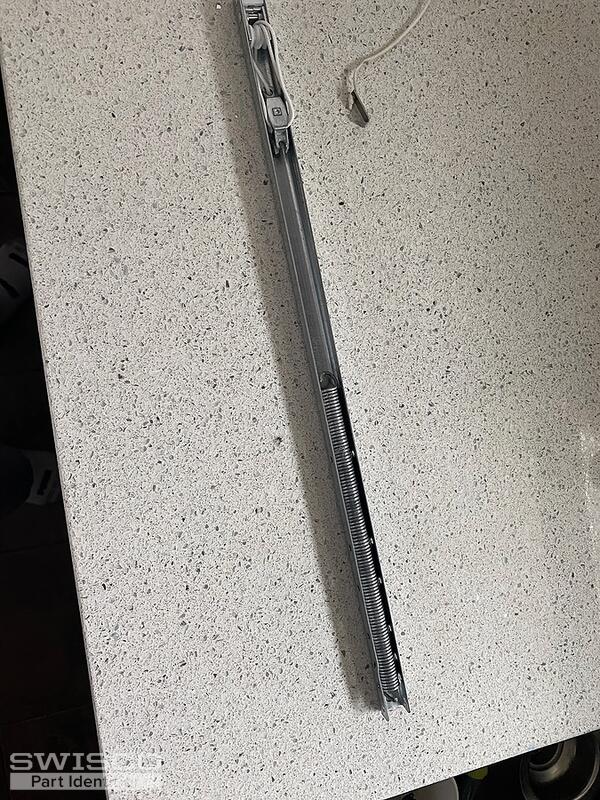

Metal bar is 1/2 x 1/2 wide and 16 inches long ? number on bar is Unique - 15-D-40

Jasmine · Accepted Answer

Thanks for writing in! I am confident that we can supply you with the replacement balances you need. They will just need to be a custom made assembly. However, before we move forward, there are a few details I'll need to confirm.

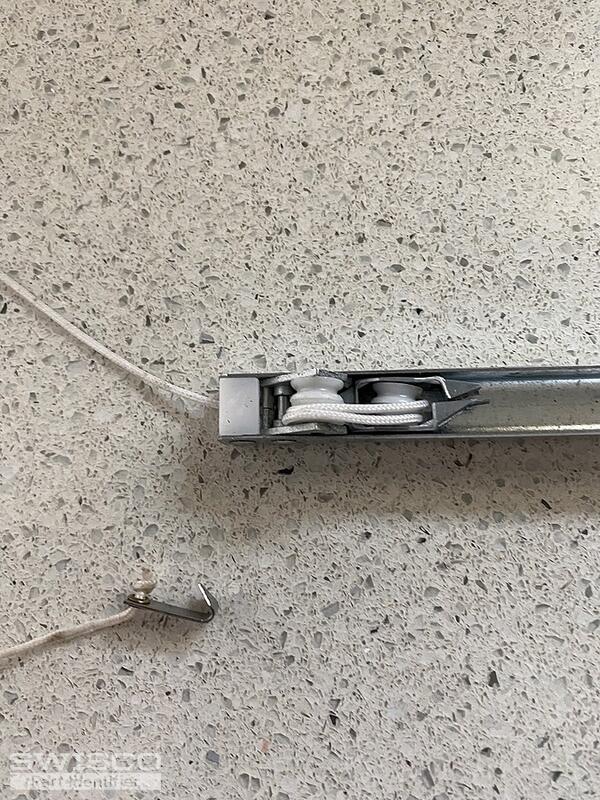

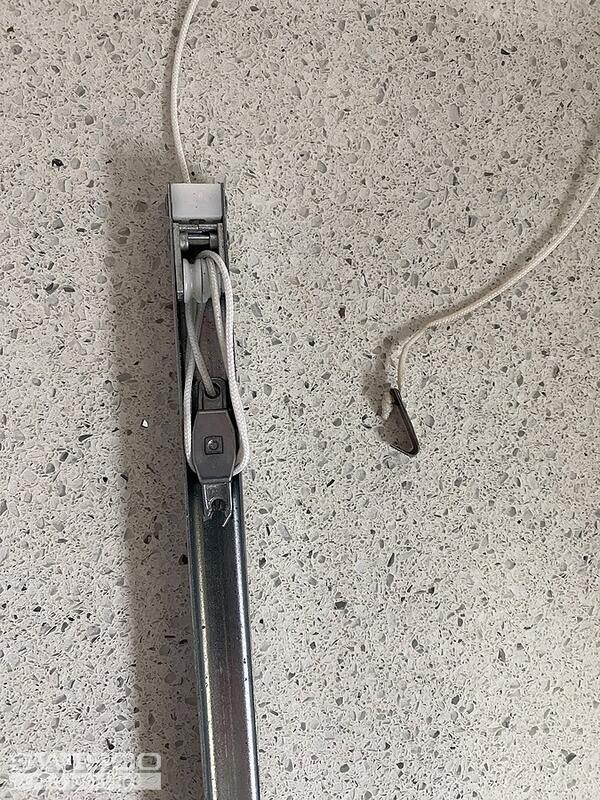

You have the Series 770 Channel Balance with a 62-105 Heavy Duty Pointed Hook attached. Since the length of your balance is 16", you'll need the S770-16. Although, you should be aware that this balance will have a 15D stamp which can support a sash weighing 16 to 19lbs. So you'll want to confirm that your window weight falls between that range, especially since these are a custom order, which are non-refundable and non-returnable.

I'll need to know the exact number of balances you intend to purchase so that I can get the custom order link made up for you. There is an order minimum of (2) balances.

Please let me know if you have any questions.
