DoubleCoil balance

Question

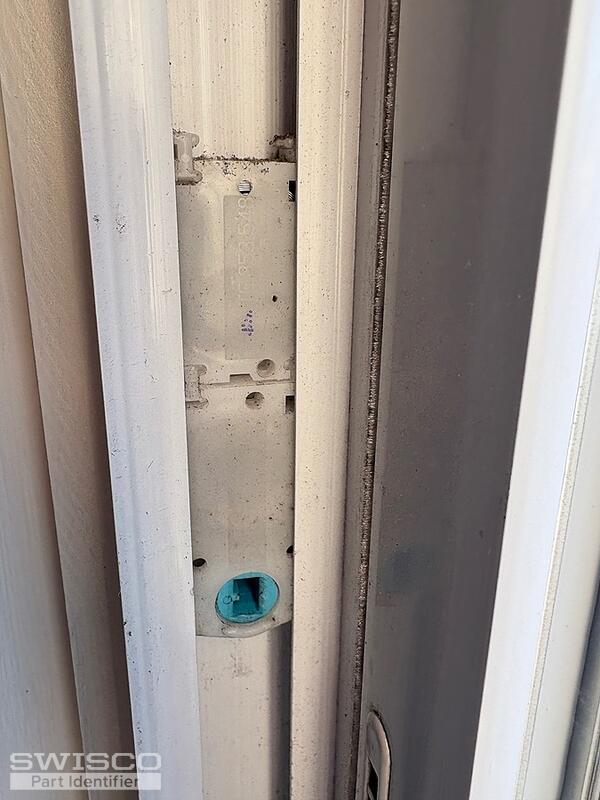

Is this your 140 style coil balance? Cam housing looks a little different

Jasmine · Accepted Answer

Hello,

The Series 140 would not be an appropriate replacement for the assemblies you're replacing. These housings are a match for the remind me of the 15-087 and 15-086. The dimensions for both of them can be found on the website.

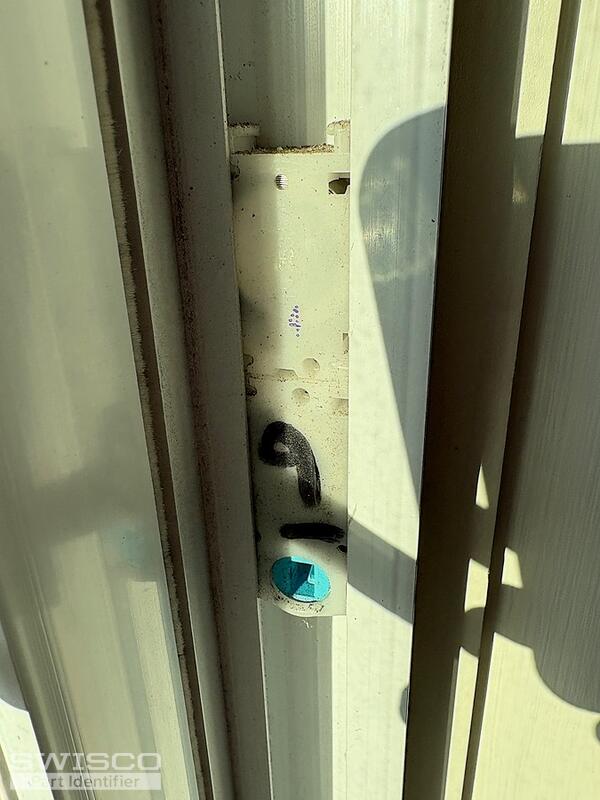

These are compatible with the Series 180 Coil Balance. It appears your housings are marked with a 4 and a 9, so you'll need the S180-04 and S180-09 to replace the existing coils.

Be sure to double check that you sash weighs 26lbs.

Series 180 coil balance diagram
