Drawer track back plate. 471029

Start a new Discussion

Home Owner from Phx AZ 85310

May 21, 2020 1:53 pm

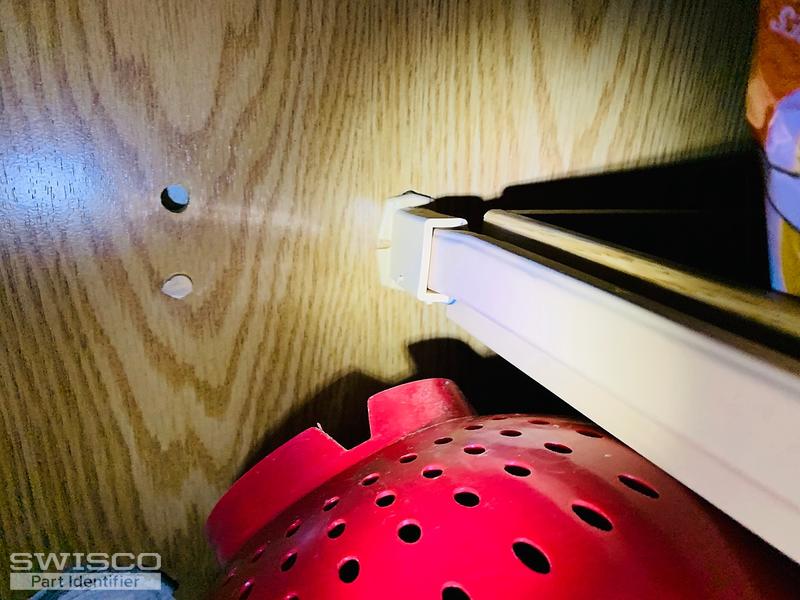

Looking for something to replace this breaking off. House built in 1991.

4 user uploaded images

7 Replies

Casey from SWISCO

May 26, 2020 7:09 am

Hello,

Take a look at another customer's discussion here where our expert indicates that even though this drawer socket is no longer made, you may be able to use our 32-012 as a substitute. Take a look and see what you think. Thanks for posting!

Home Owner from OH

Jan 23, 2023 7:58 am

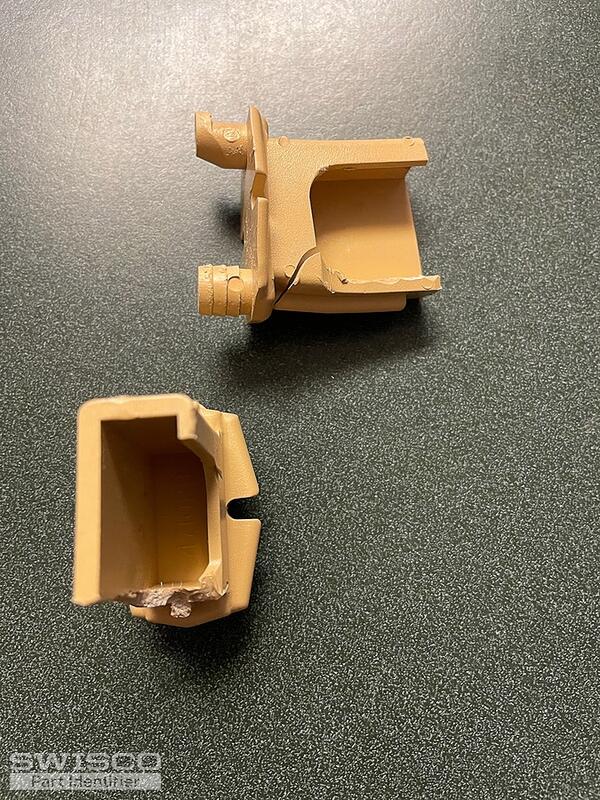

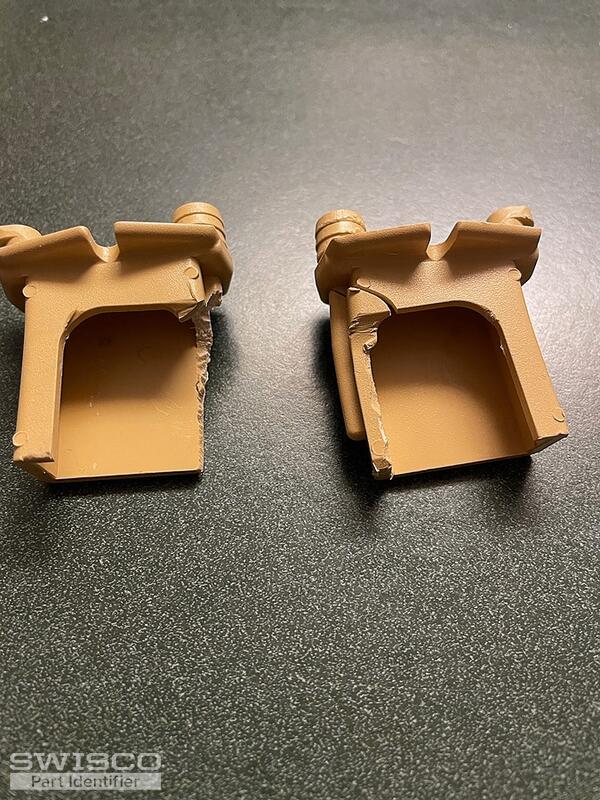

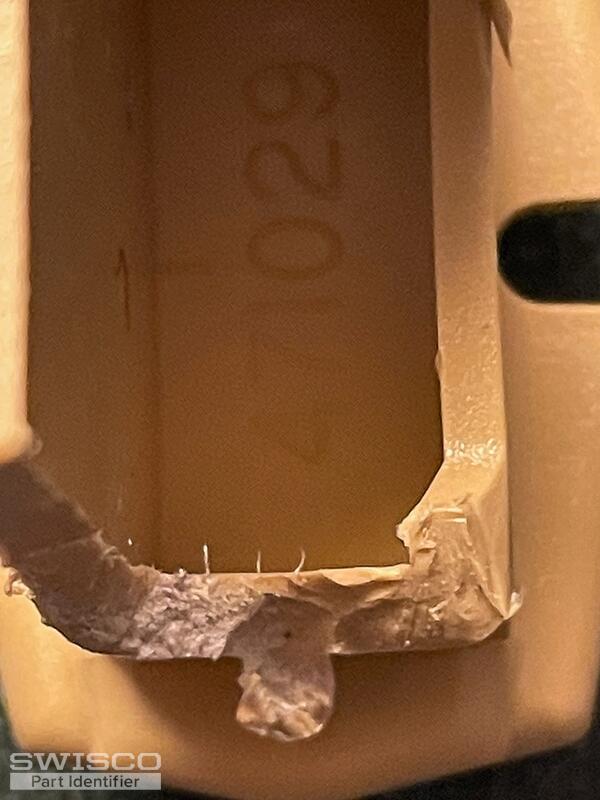

I'm also looking to replace Merillat drawer brackets 471029/471037. Have you heard back from any customers to verify that your part 32-012 actually fit?

I need 8 pairs and although they're not expensive, I'd hate to order them, only to find out that they didn't fit.

Please send me some good news as I know the original part is no longer made.

Thanks

Harry

Home Owner from OH

Jan 23, 2023 8:10 am

Hi again. I did more searching and found a post on your site that recommends using part 32-119 ??? So Now I'm even more confused on which part to order.

3 user uploaded images

Tom from SWISCO

Jan 23, 2023 11:38 am

The 32-119 and 32-012 are honestly pretty interchangeable. I personally prefer the 32-119 because it's a less complicated part, but the differences are marginal. It's really a matter of personal preference.

As for verification, I've had many, many customers tell me that both the 32-012 and 32-119 worked well. It just took a little handy work (drilling new holes for installation, packing out the back wall if necessary, lining it up with the old socket, etc.). It's not a 1:1 replacement but in my opinion it's the best you're going to find.

Quick Learner from Columbus, ohio

Oct 14, 2024 10:28 am

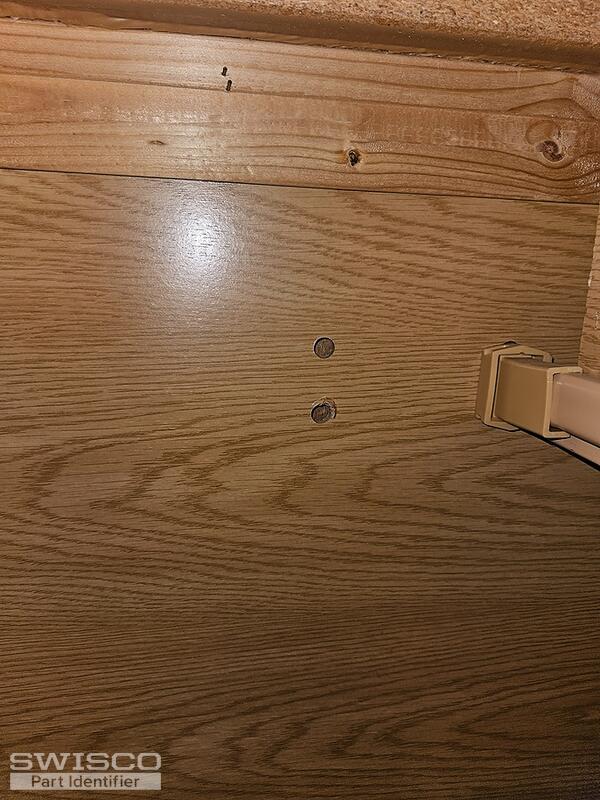

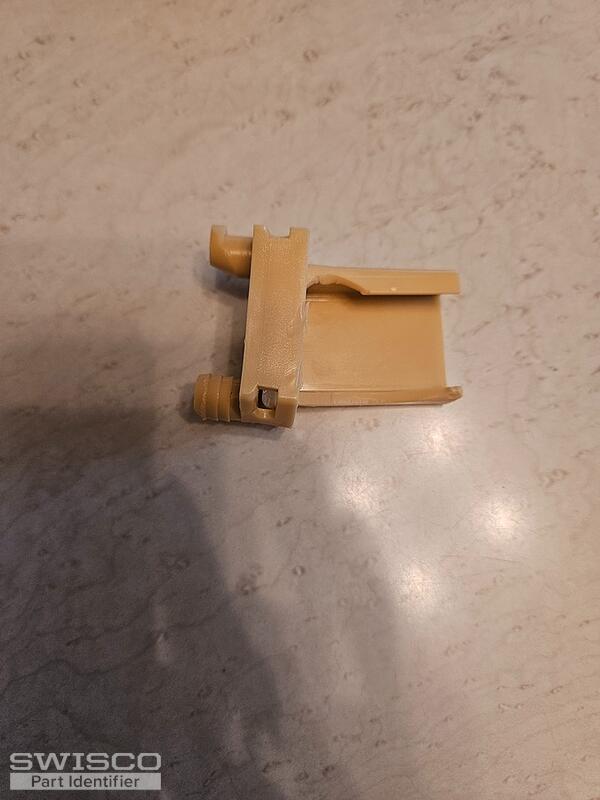

Hi there. I'm looking for the same thing. The problem is that drawer is located in an island with a very thing wall behind it so drilling holes to support is not an option. Any suggestions? Thanks.

2 user uploaded images

Tom from SWISCO

Oct 16, 2024 12:12 pm

If you can't drill into the back wall of the cabinet, you could potentially use a staple gun. That's really the only alternative I can think of, unfortunately. Your old socket isn't made anymore, so any replacement that's compatible will either have to screw to the back of the cabinet, or be stapled on.
