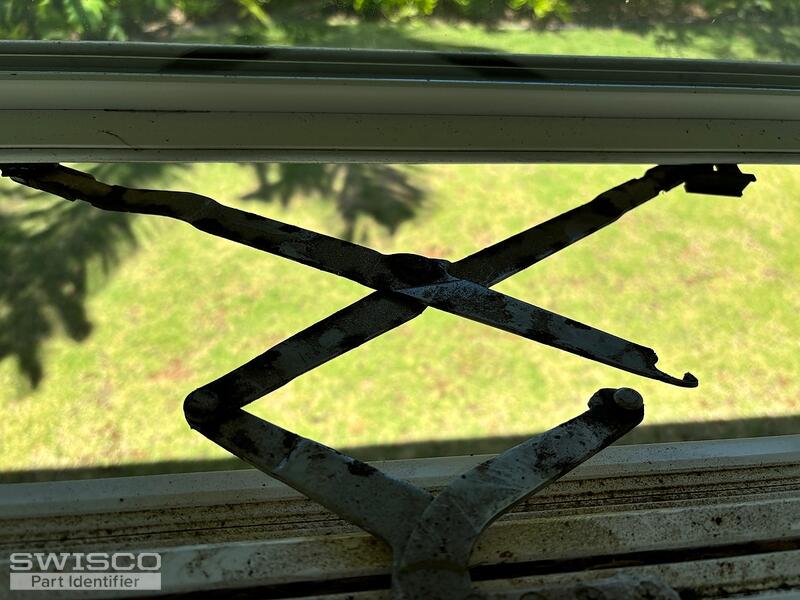

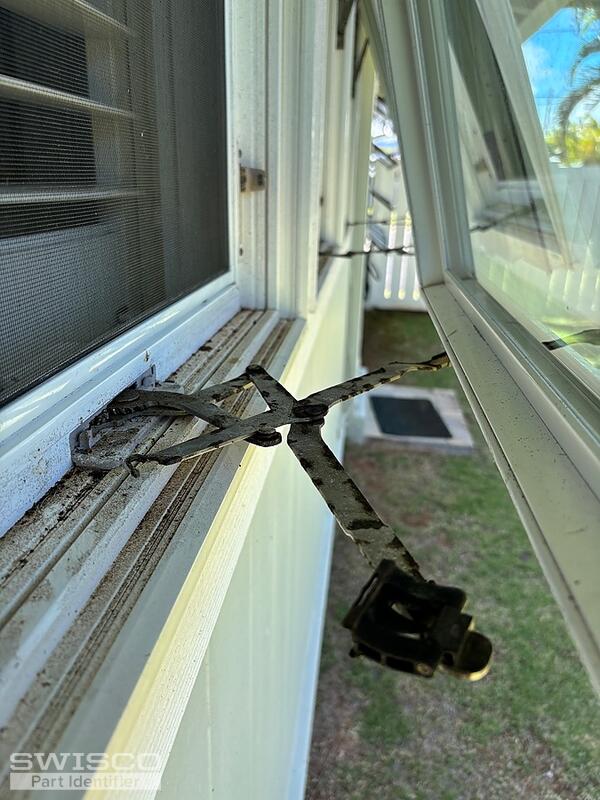

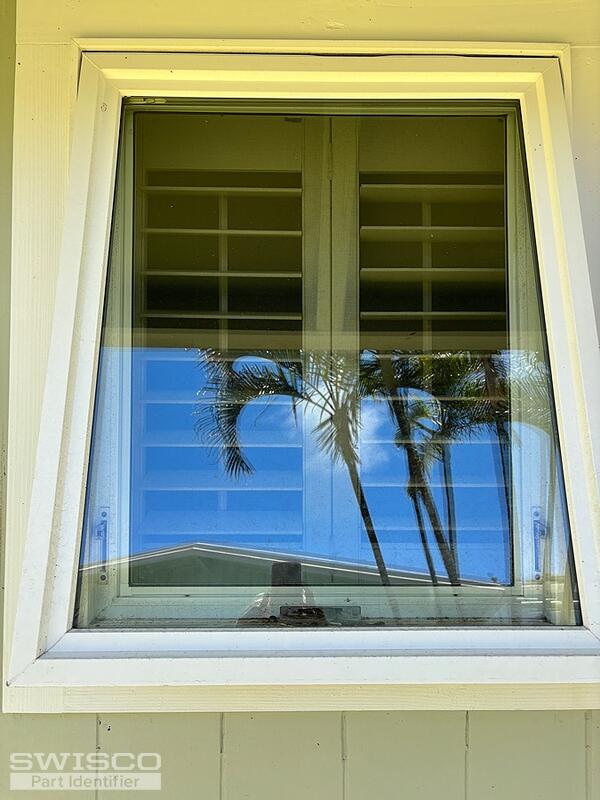

I would like to order an encore awning operator for a Milgard Tuscany series window but am not sure which one to order. It looks like the extender opens the window 15 1/2 inches.

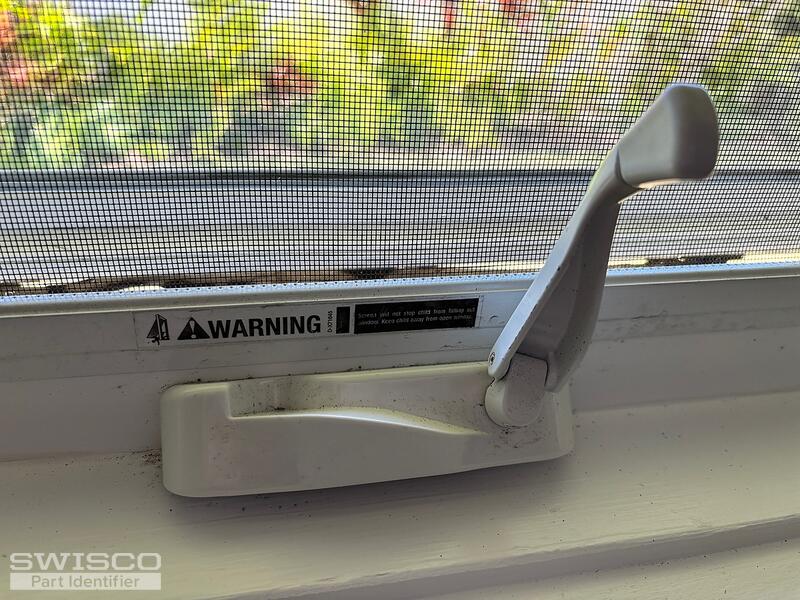

I am also wondering if I need to reorder the crank. It appears to work fine.
Any ideas which one I should order?
Thank you,
marci
Encore Awning Operator
Home Owner from Hawaii
Jul 15, 2024 11:08 pm
4 user uploaded images
4 Replies
Jasmine from SWISCO
Jul 17, 2024 1:19 pm
Hi Marci,
The operator you have here can be replaced with our 39-239C SS Encore Awning Operator. This operator comes with the detach clips attached to the arms but you'll need to purchase the 39-536 Truth Hardware Pivot Slide Assembly, separately.
If the crank handle is working fine, you shouldn't need to replace it but the compatible folding handle and cover kit is the 39-375.
DImensions for 39-239C
Alternate view and dimensions for 39-239C
Alternate view and dimensions for 39-239C
Home Owner from Hawaii
Jul 18, 2024 1:59 am
Thank you so much. I have ordered the parts and hope this is a repair I can do on my own.
Jasmine from SWISCO
Jul 18, 2024 10:07 am
I'm happy to help! Please don't hesitate to reach out with any other hardware repair questions and/or projects you might have.
Have a great weekend!
