Extended-Travel Channel Balance Quote

Quick Learner

Aug 11, 2021 6:20 pm

metal channel: 21 inches

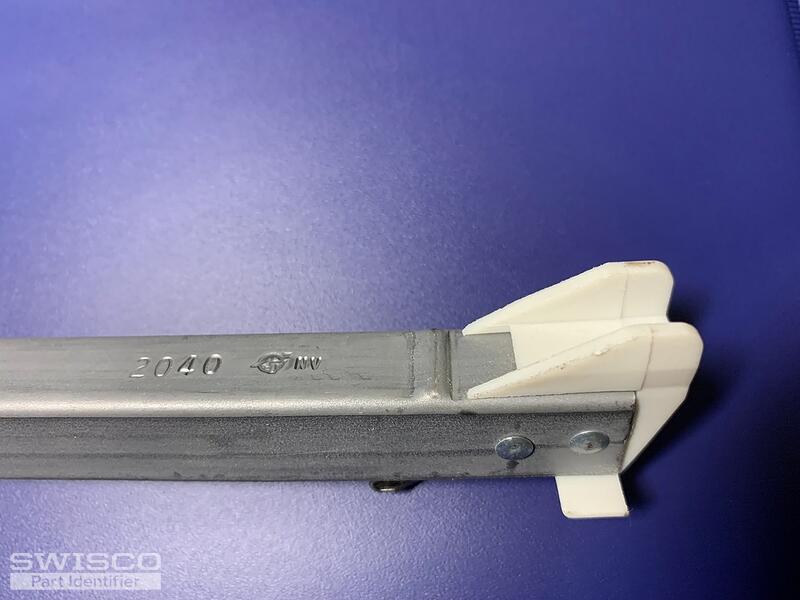

stamp: 2040 (see Bottom Fitting)
windows origin: Don't know
I need 2 windows sash balances as for now.

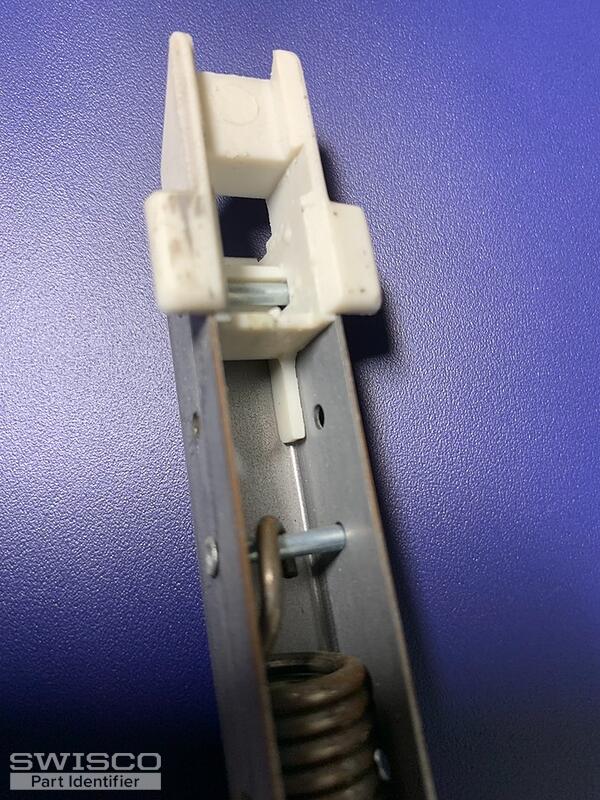

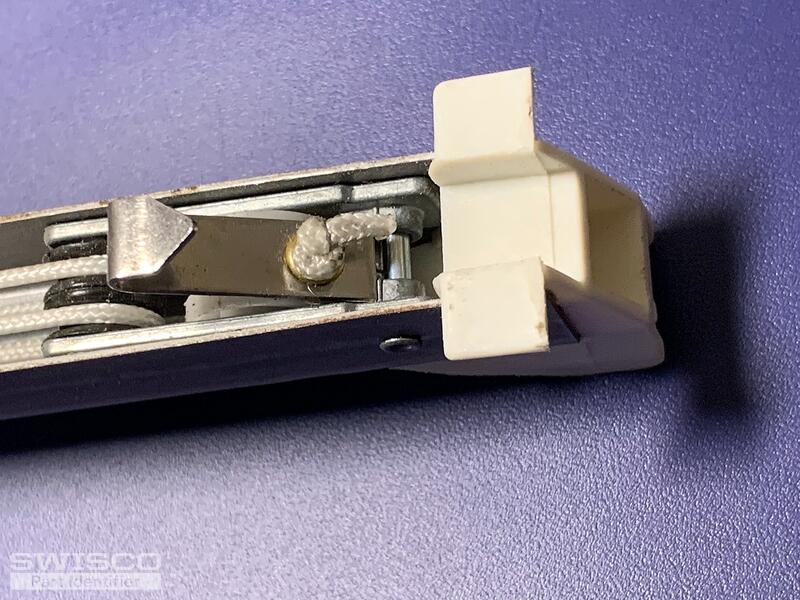

3 user uploaded images

4 Replies

Tom from SWISCO

Aug 16, 2021 2:48 pm

Thanks for your photos. Based on what I see here, you have either our S380-21 or S385-21, depending on the depth of the bottom shoe. That's the only difference between them. I recommend measuring your shoe and referring to our dimensions to confirm the best match.

Comparison of the S378, S380 and S385 balance shoes.

Quick Learner

Aug 16, 2021 3:16 pm

It is 1 3/32 inches.
Does that means I can order S385-21 for my replacement?

Thanks.

Tom from SWISCO

Aug 17, 2021 1:01 pm

Yep, if the shoe is 1-3/32" then you want the Series 385.
