Extended-Travel Channel Balance Quote

A quick learner says:
28 INCH METAL CHANNEL
279 BSI re
ORDERED DEC 2005 PUT IN EARLY 2006 CUSTOM WINDOW SYSTEMS VINYL FRAME
please make two
Thumbnail of the uploaded file named 0122231536.jpg
Thumbnail of the uploaded file named 0122231537.jpg
Thumbnail of the uploaded file named 0122231537a.jpg

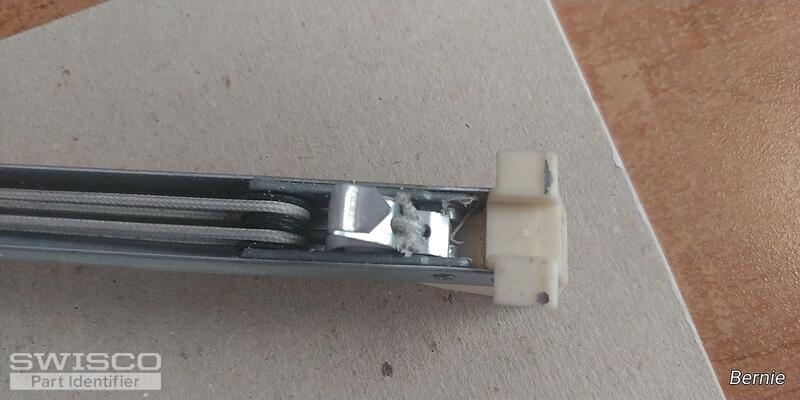

Thumbnail of the uploaded file named 0122231533.jpg

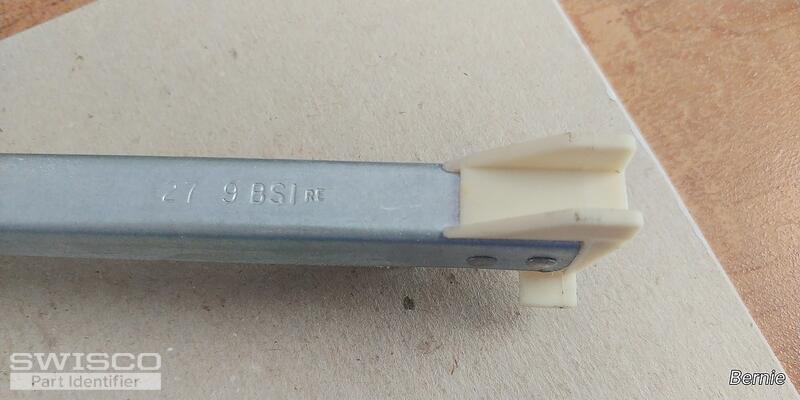

Thumbnail of the uploaded file named 0122231533a.jpg
Profile picture of Emily
Emily from SWISCO responded:

Hello there!

This doesn't appear to be an extended travel channel balance. It looks like you have a stock balance such as our S380-28 or S385-28 depending on the depth of the bottom shoe. Measure as shown below to see which one you'll need for this repair. The 27 9 stamp on the metal channel doesn't match our rating system so you'll need to weigh your sash and refer to the chart under the product description on the S380 and S385 store pages to determine the appropriate spring strength option for your balance.


Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
