Extended-Travel Channel Balance Quote

Quick Learner

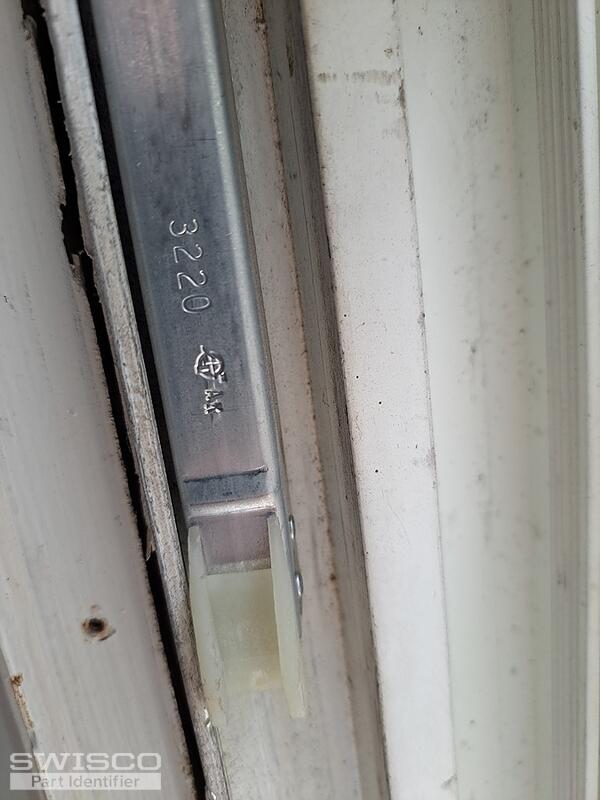

33" 3220 stamp also parts on sash need replaced.
5 user uploaded images
8 Replies
Tom
Tom from SWISCO
SWISCO
Expert

I think we can help with this balance, but looking at its design I don't think it's the extended-travel type. This looks like a pretty typical non-tilt channel balance.

Before we go any further, can you show me a picture of the top fitting? Your photos show the bottom, but that only tells half the story. Seeing the top fitting will allow me to narrow down the list of possibilities.

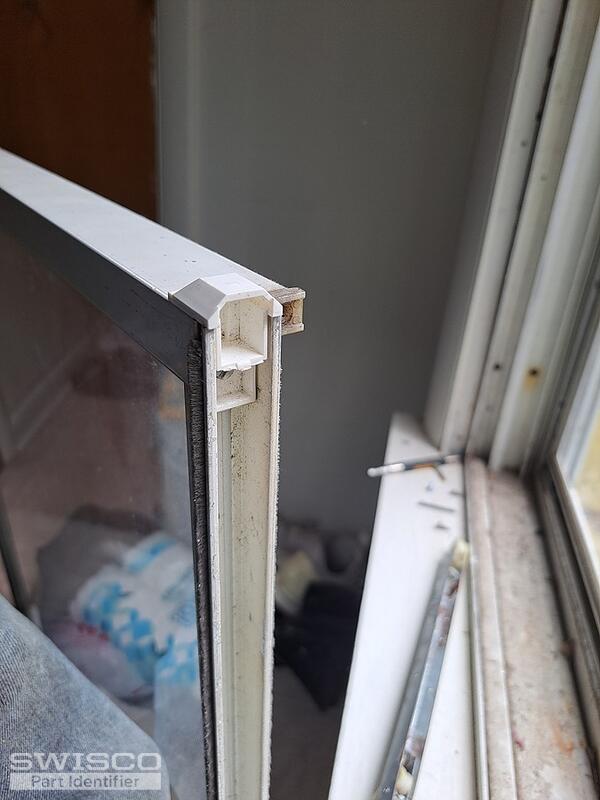

As for your top sash guide, at first glance it looks like our 18-033, but you will need to review our dimensions to confirm.

Alternate view of 18-033
Alternate view of 18-033

Alternate view of 18-033
Alternate view of 18-033

Quick Learner

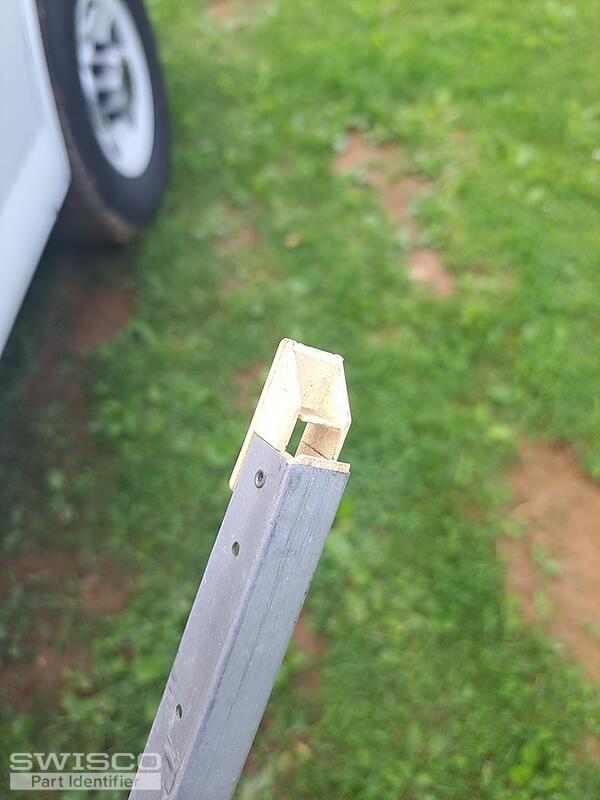

Here is the top fitting, thank you for helping resolve my issue!
1 user uploaded image
Tom
Tom from SWISCO
SWISCO
Expert

Thanks! Based on what I see here, you have either our S351-33 or S390-33, depending on the depth of the bottom shoe. That's the only difference between them. I recommend measuring your shoe and referring to our dimensions to confirm the best match.

Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.

Quick Learner
Question, does top sash have same balance as bottom sash?
Tom
Tom from SWISCO
SWISCO
Expert

Not necessarily. In a lot of cases, sure, the top and bottom sash will have identical balance configurations. But I've seen them be different enough times that my official recommendation is to always double check. When it comes to balances, you never want to guess.

Quick Learner
Good morning, I have the 1 1/8"shoe on bottom ,I need 2 33"and 2 39" balances,4 top sash guide, where do I order at? Also the take out clip 4 of them.
Tom
Tom from SWISCO
SWISCO
Expert

Great! All orders can be placed directly on our site at your convenience. I've linked to each product in my responses above. For the take out clip, see our 16-002.

Please let me know if you had any other questions.
