Extended-Travel Channel Balance Quote

Quick Learner
29" Length 1/2" wide 28 9 RE Stamped
3 user uploaded images
4 Replies
Lauren
Lauren from SWISCO
SWISCO
Expert

Hello, thank you for posting,

We can assist with a replacement balance, but to further review, are you able to show us an undamaged balance where we can see how it installs at the top into the window channel? Does it screw or hook in?

We will also need to know the weight of the window sash. The sash will need to be removed and placed on a bathroom scale. From there we can determine the right fit for your window. Thank you!

Quick Learner
I haven't been able to get back to that Location yet to Take a picture of the Weight of the Window but the Window is between 23-25lbs. When I'm able to get back there I will take the Needed Pictures for You. Thanks

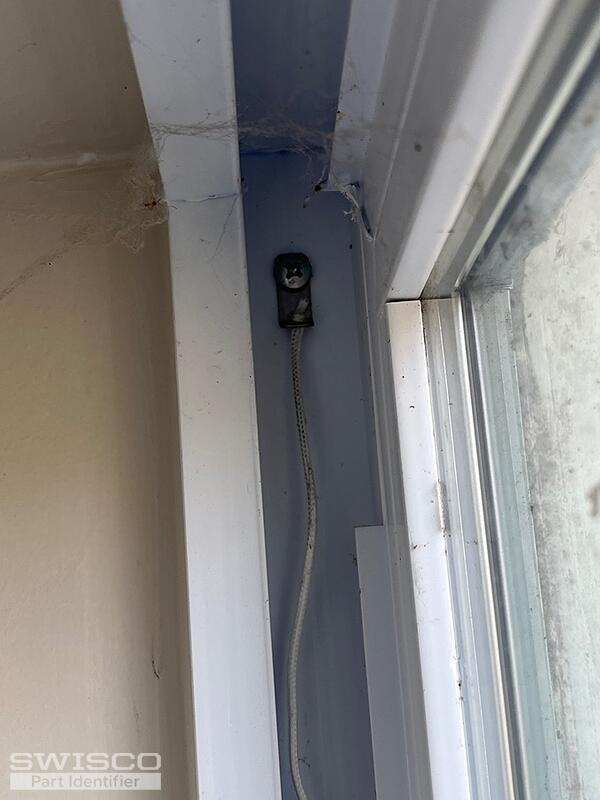

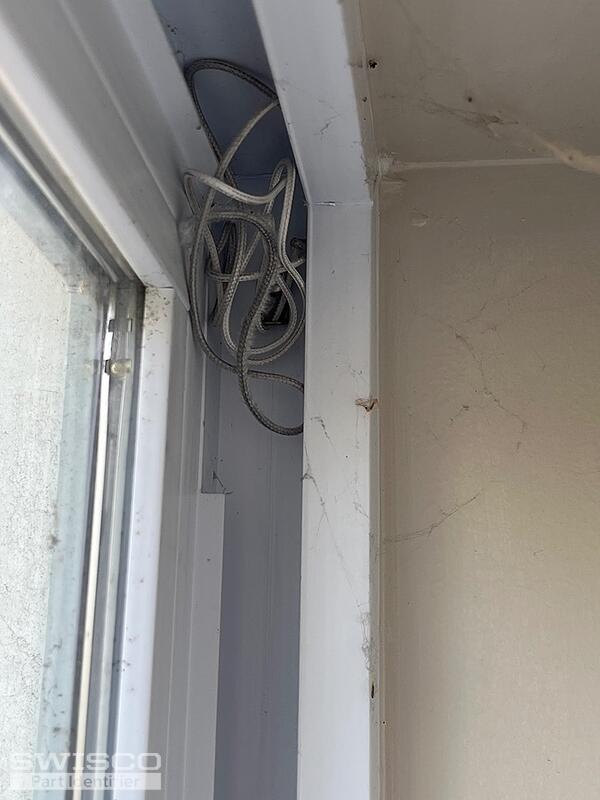

2 user uploaded images
Lauren
Lauren from SWISCO
SWISCO
Expert

Thank you,

Please review the Series 795 channel balance as a replacement with the 15-224 Inverted Link. The 15-224 Inverted Link will need to be purchased additionally and swapped out with the stock Series 795 shoe before installation.

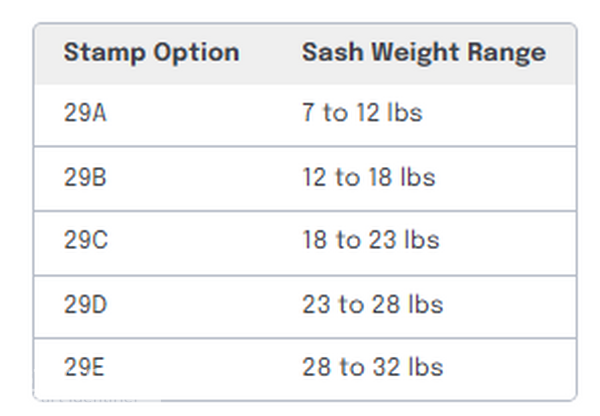

If the window sash weighs between 23-25 pounds, you can use a 29D stamp that can support a 23-28 pound sash, but we recommend getting the exact sash weight to confirm before purchasing and compare to the chart below. Please let us know if you have any additional questions!

swisco
