Extended-Travel Channel Balance Quote

Quick Learner
30" metal to metal
3220
4 user uploaded images
5 Replies
Quick Learner

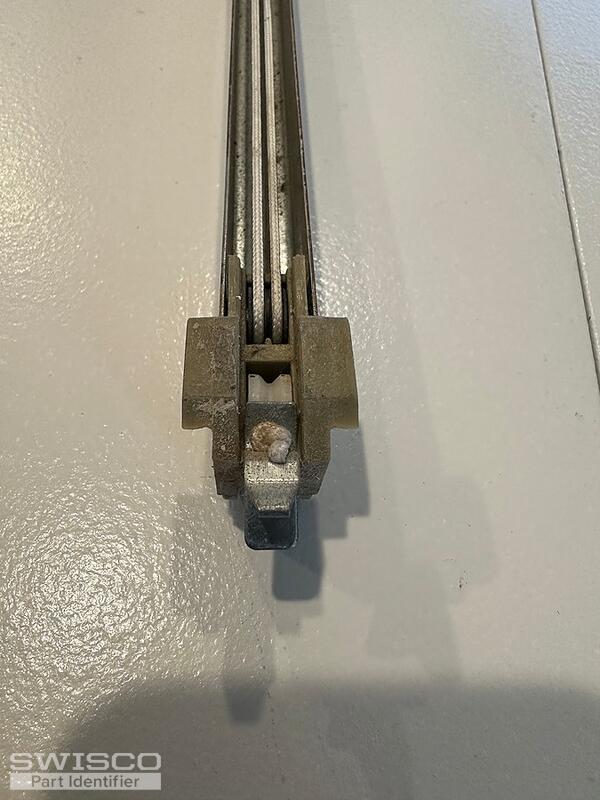

I have another window balance thta I need to replace. The part number is 1430, these is shorter than the previously attached photos.
Emily
Emily from SWISCO
SWISCO
Expert

Hello there!

Thank you for reaching out to us. We can help supply this balance but it will have to be a custom order due to its configuration. The pulley wheel is built into the bottom fitting itself and this balance features an extended cord travel as well as a metal channel length ending in 7/8" which is what makes it custom. For example, the metal channels should measure 32-7/8" and 14-7/8" long. Can you double-check and confirm this for us? Can you also confirm the 1430 balance has the same configuration as the one shown in your photos, other than the length and stamp?

Lastly, how many of each are you looking to purchase?

Quick Learner
Both lenght are correct and both has the same configuration. I need one of each and I also need take out clips ( 6 clips)
Emily
Emily from SWISCO
SWISCO
Expert

Thanks for confirming. Our minimum for custom orders is two so I'll email you a purchase link for (2) with the 3220 stamp and (2) with the 1430 stamp.

I'm unsure what kind of take out clips you have but start by taking a look at the 16-002 and see how they compare with your old clip. You are also welcome to upload photos of the take out clip you have for us to review.

Please note that the take out clips cannot be included in the purchase link so don't forget to add your needed quantity to your cart separately.

Alternate image for 16-002
Alternate image for 16-002
