Fix window slide/spring

A handy person from Queens says:
June 26, 2020
As You see, I need t

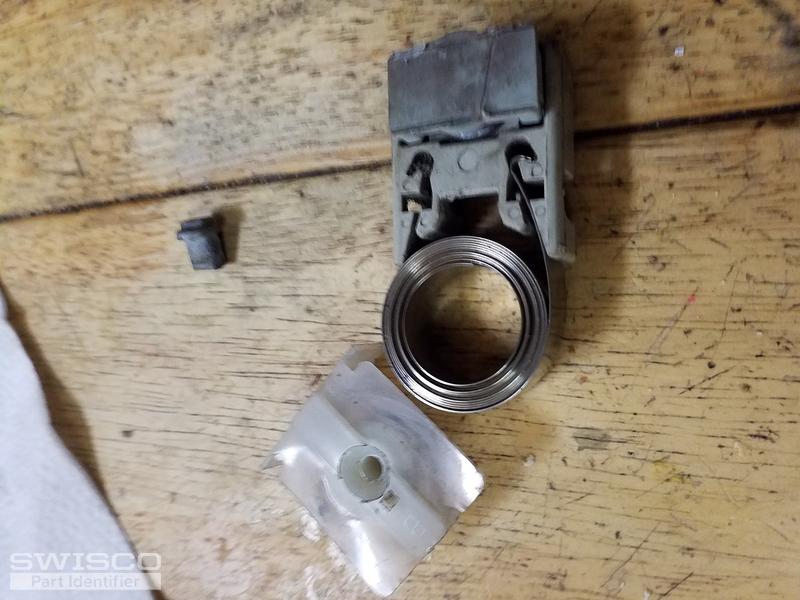

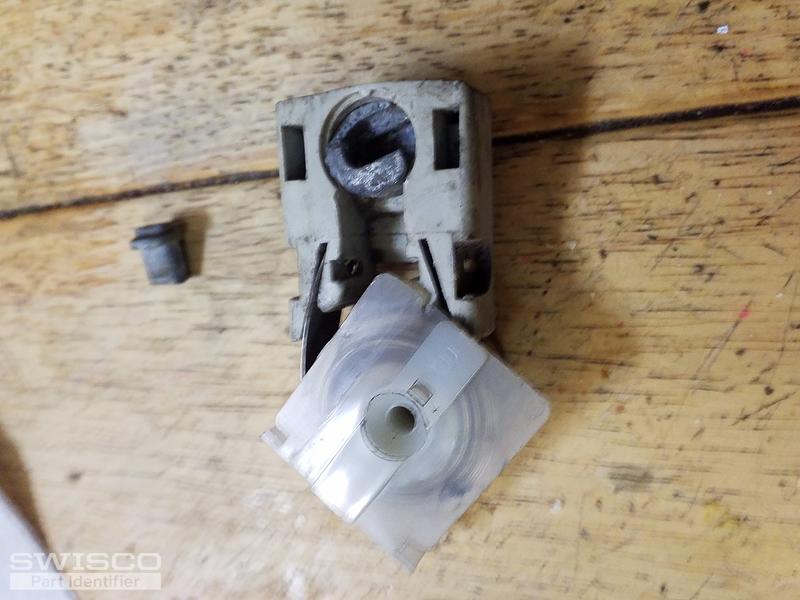

He part shown and the pin that goes into the window. They both broke.
Thumbnail of the uploaded file named 15931892627591337877890.jpg
Thumbnail of the uploaded file named 15931893975271234998284.jpg
Profile picture of Casey
Casey from SWISCO responded:
June 30, 2020

Hello,

Take a look at our 15-177 pivot shoe that is used with the Series 152 coil springs. If you need a new pivot bar as well, we will need to see an undamaged bar removed from the window, along with dimensions, to find a suitable replacement for you. Thank you!
A handy person from Queens says:
July 13, 2020

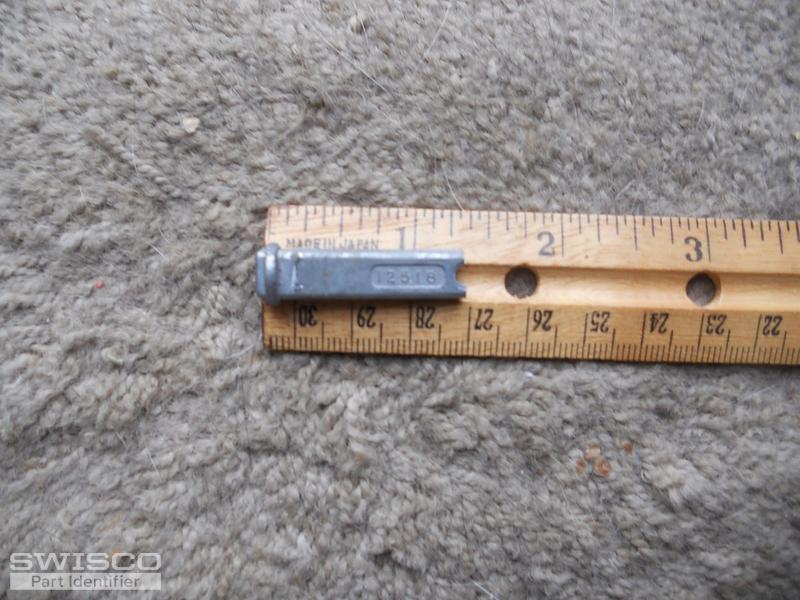

I am enclosing a picture of the remaining pivot bar. It too is broken, but you can see the screw hole is 1-3/8 inch from the end. Please let me know the part number so I can order it and the other replacement parts
Thumbnail of the uploaded file named DSCN1167.jpg
Profile picture of Casey
Casey from SWISCO responded:
July 13, 2020

Great. Take a look at our 26-352 pivot bar and see how it compares to yours. Thank you!
Coil Balance Shoe, Slate Blue
Coil Balance Shoe, Slate Blue
15-177
$3.47
Pivot True Pivot Bar
Pivot True Pivot Bar
26-352
$1.90
