Folding Handle and Cover Kit.

A home owner from Austin Texas says:

June 8, 2020

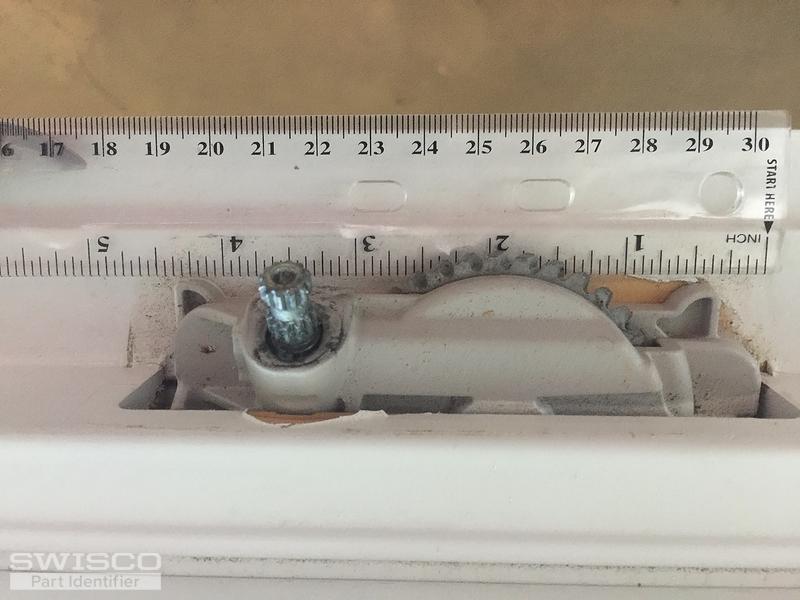

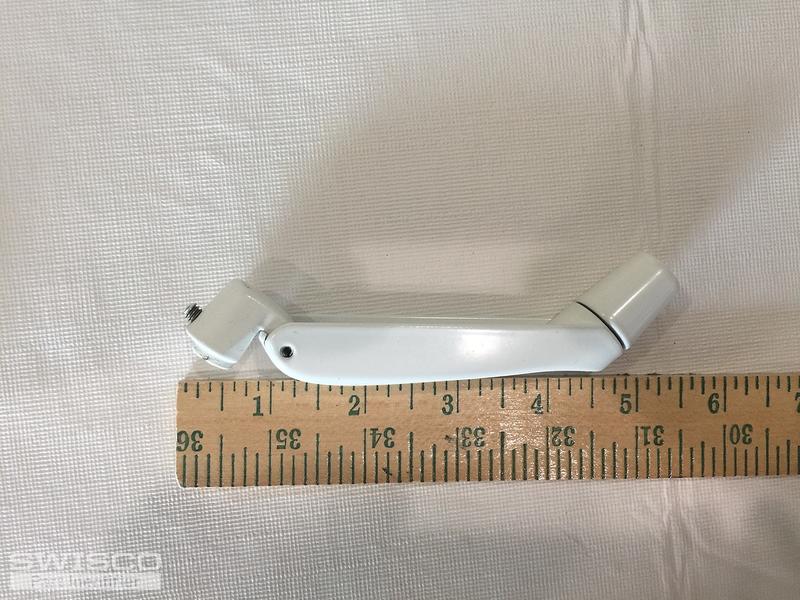

I am sending back the Truth Folding Handle and Cover Kit that we thought would be the correct replacement. Now need to try to identify the correct part. The handle in photo as shown is about 5 inches long from pivot pin to tip of handle. In second photo you can see that the opening in the window frame is 4 1/2 ". The mechanical part seems to be 4 1/4. The tips in the cover that go in the frame appear to be about 4 1/4 as well. The sprocket/gear is on right side of cover as shown in last two photos.

I have no way to confirm that this is a Truth product. We built house several years ago and in contract Truth windows were listed but builder may have used something else. Do know that he used BMC for many materials.

Thumbnail of the uploaded file named DEFE730F-19AA-4851-B7C7-A4737FF20B5F.jpeg

Thumbnail of the uploaded file named 47FCFD28-EDE9-40A2-AC51-65FF95916F5D.jpeg

Thumbnail of the uploaded file named 273E15A3-B11E-4F06-A44E-98A8308C5DAD.jpeg

Thumbnail of the uploaded file named C625662A-CAA8-4308-94C1-A6B951D8CD39_1_201_a.jpeg

Thumbnail of the uploaded file named 1BF51002-F68D-4A26-99BD-1FF3C9EC2346.jpeg

Tom from SWISCO responded:

June 11, 2020

Based on your photos, I think the 39-375 would be a better option. The problem with the 39-107FK is that the handle is centered in the base, while yours is set to the right, as you mentioned. The 39-375 will fix that problem.

A home owner from Austin Texas says:

June 11, 2020

I have now been able to identify the window via my builder. Intergrety by Marvin, /wood exterior and ultra exterior. Does this help identify the parts better?

Tom from SWISCO responded:

June 12, 2020

That information doesn't really lend itself to what operator cover you want. Marvin may have made the window, but I believe Truth made your operators. The 39-365 is the best option we carry. We have detailed pictures and information on its store page that you can use as a reference.

Encore Truth Folding Handle with Cover

39-375

$11.97

Truth Folding Handle And Cover Kit

39-107FK

$15.45
