Length is 28" for a CWS storm door for mfg house
Part # on piece pictured is 27 2 RG
For a CWS storm door window

Home Owner from Micco, Florida
Jul 18, 2021 11:53 am

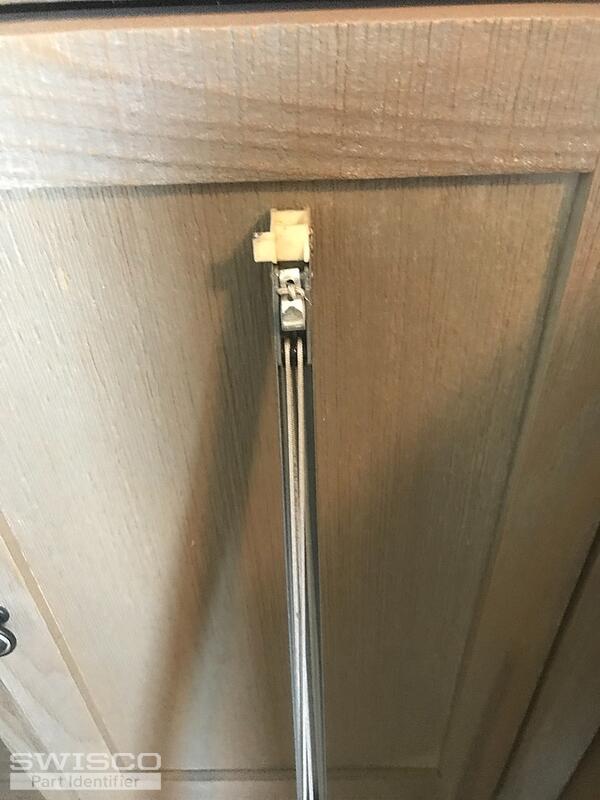

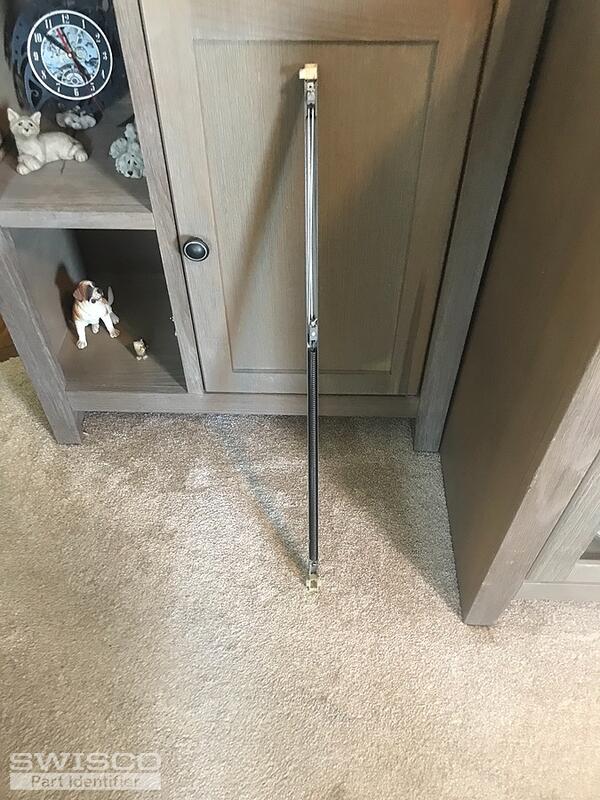

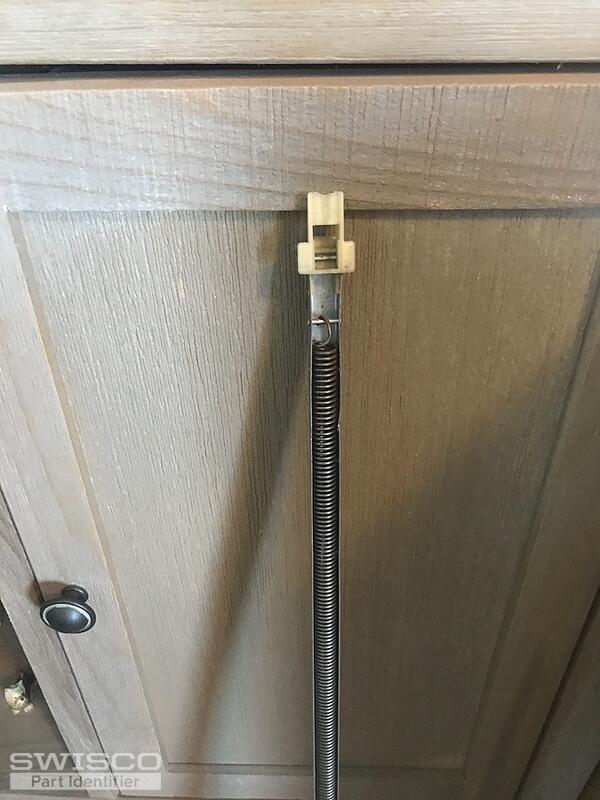

3 user uploaded images
2 Replies

Casey from SWISCO
Jul 21, 2021 10:06 am


Hello,
With this combination of attachments, you could have either an S380-28 or S385-28 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 2720 spring strength options for your replacement balances.
Thank you and let us know if you have any other questions or concerns.

Comparison of the S378, S380 and S385 balance shoes.
