Garden window

Quick Learner from Lorain, ohio
Nov 6, 2023 3:36 pm

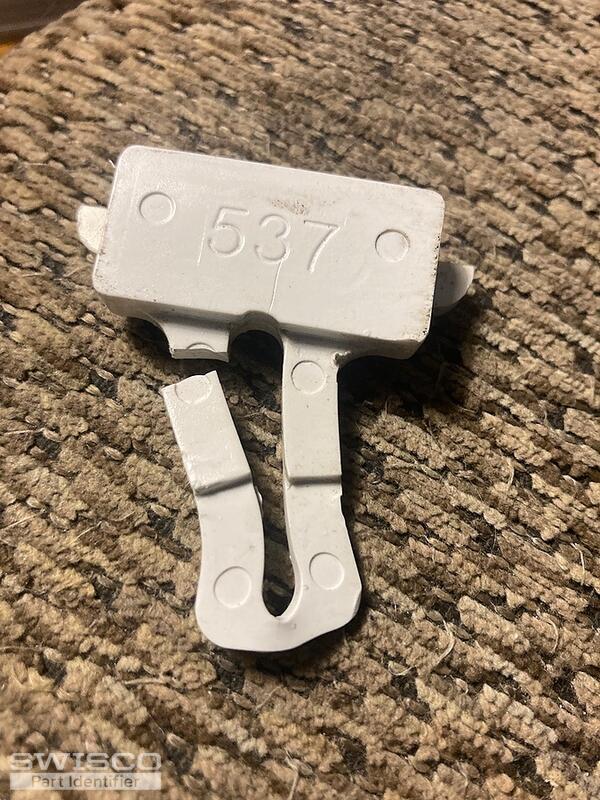

This is a part out of a garden window. It is a pressure lock on the left inside of the window. There is one on the right side also and has a crank at the bottom. As you can see the part in the picture is broken. Thank you for your help.

IMG_1550
1 user uploaded images
3 Replies
Casey
Casey from SWISCO
Nov 7, 2023 1:41 pm
SWISCO
EXPERT

Hello,

I do not recognize the part shown in your photos but I can tell you that we do not carry many parts used in garden windows. With that being said, we would need to see a photo of the part installed to confirm if it is something that we can supply. Thank you.

Quick Learner from Lorain, ohio
Nov 8, 2023 9:15 am

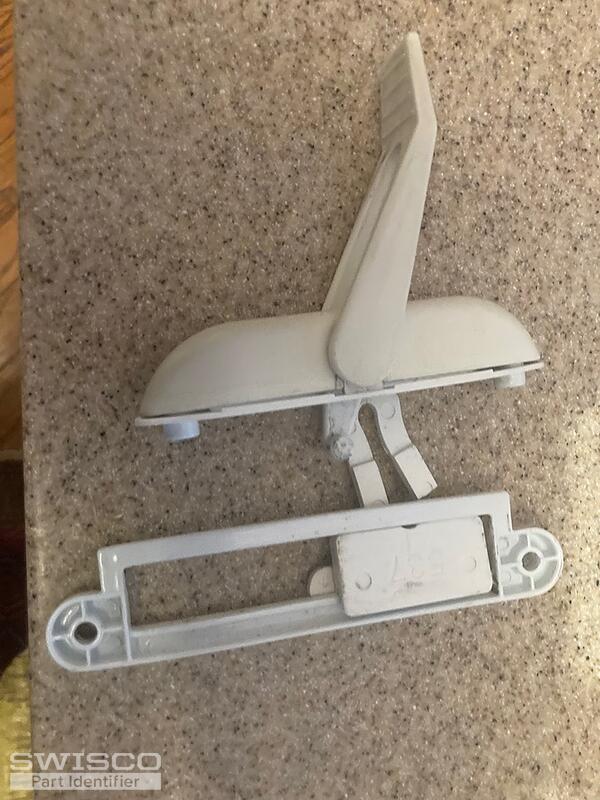

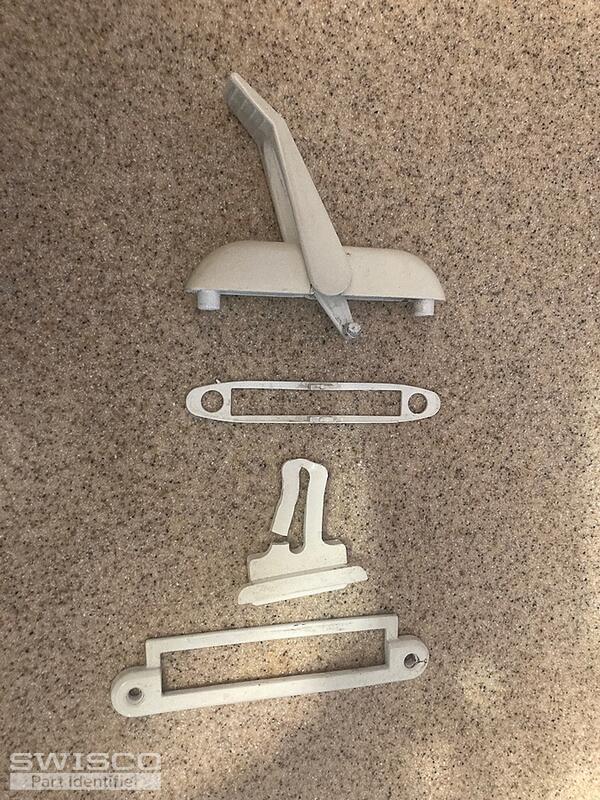

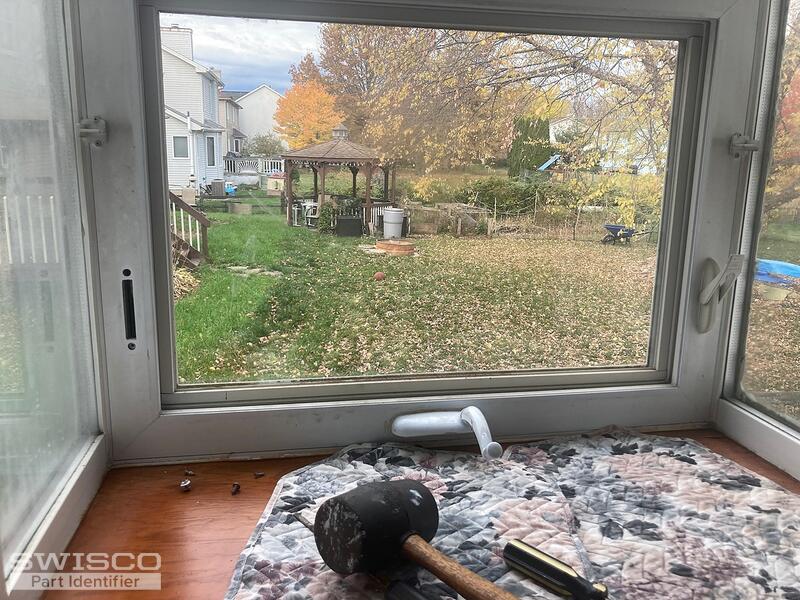

I've added three more photos. I can't really re-install it because one of the parts is broken. One of the photos shows the lever completely disassembled. One photo shows the part partially assembled. And the last photo shows the window from where the broken part came out of. Note the left side.
IMG_1553 IMG_1552 IMG_1551
3 user uploaded images
Casey
Casey from SWISCO
Nov 8, 2023 9:48 am
SWISCO
EXPERT

Thanks for getting back to us. Unforutnately, we do not carry an exact match for your lock assembly but it is similar to the parts shown in other customer's post here. Take a look and see if you might be able to have a local professional adapt something like our 38-099 and 38-100 to work for your application.

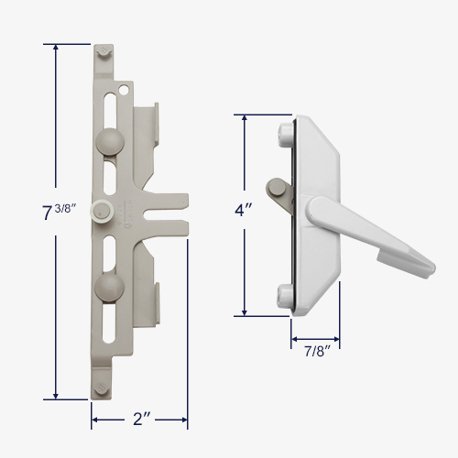

Dimensions for 38-100
Dimensions for 38-100
