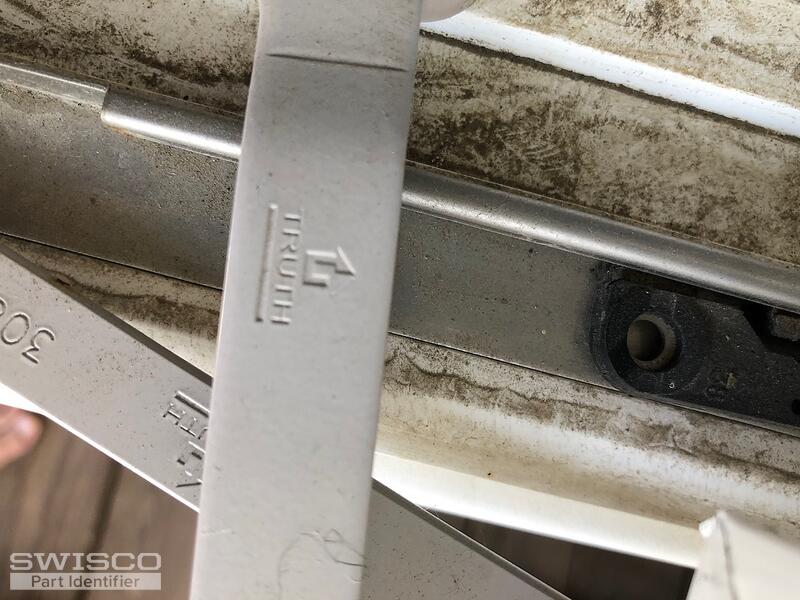

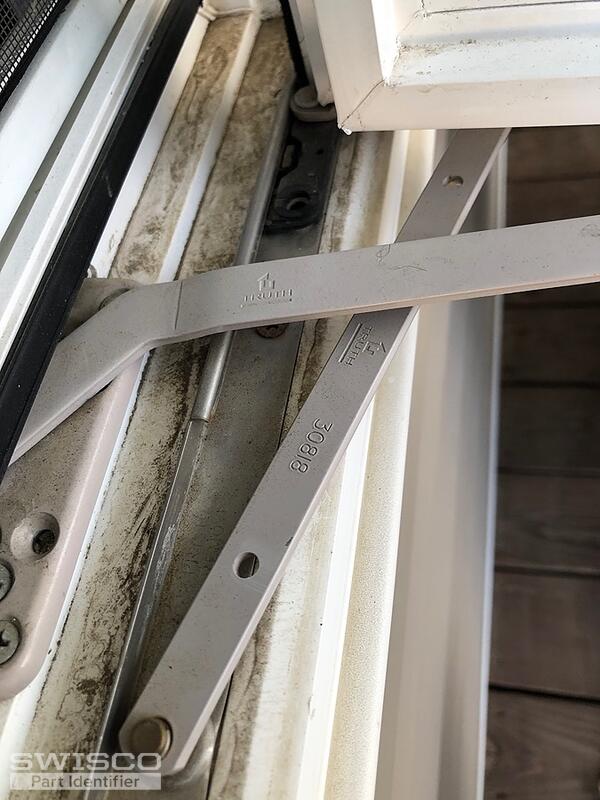

Gears slip as opening window and closing, the handle assembly gear seems ok, all I see on crank is stamped word Truth 30818. Right side is that all I need to replace crank assembly.
Please not this is a right side crank needing replaced but the photo is left side crank
Gears slip
Home Owner from Des Moines Iowa
Jun 16, 2023 9:48 am
2 user uploaded images
2 Replies
Bob from SWISCO
Jun 16, 2023 11:42 am

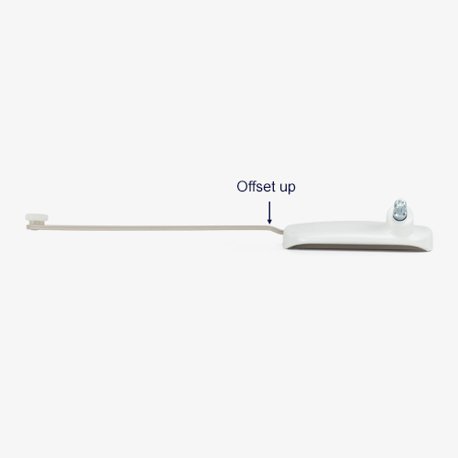

Thanks for writing in. Start by looking at our 39-413 and its opposite-handed counterpart, the 39-412. These are straight arm operators replete with that similar 'offset' in the arm that your old mechanism features. Compare the diagrams below with your existing hardware to see if it matches what you need. Let me know if the measurements differ at all, and if so, by how much.
Alternate image for 39-413
Alternate view of 39-413
Alternate image for 39-412
Alternate view of 39-412
