Product Code: 39-412

Offset Single Arm Operator, 9-1/2

Name: Offset Single Arm Operator, 9-1/2
SKU: 39-412
Price: 35.55 USD
Availability: InStock

$35.55

Quantity	Price
1-9	$35.55/ea
10-24	$34.55/ea
25-49	$33.61/ea
50+	$32.79/ea

Please Note: Bulk pricing applies only to purchases of the same option

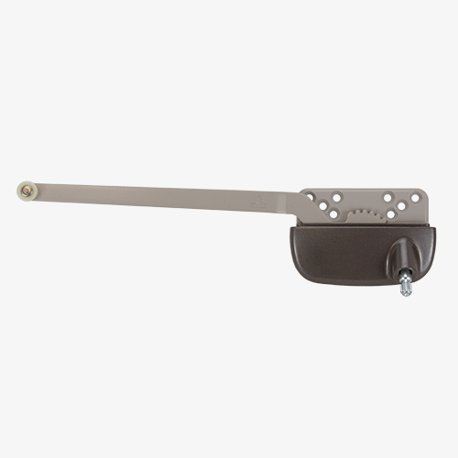

white bronze

Quantity

Add to Wishlist

Product Description

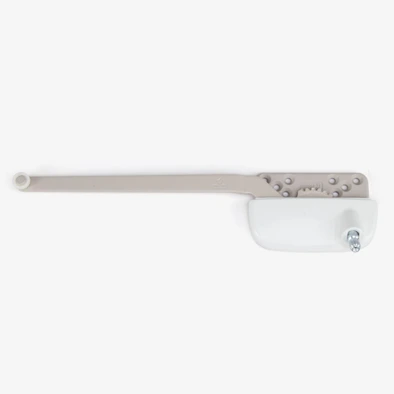

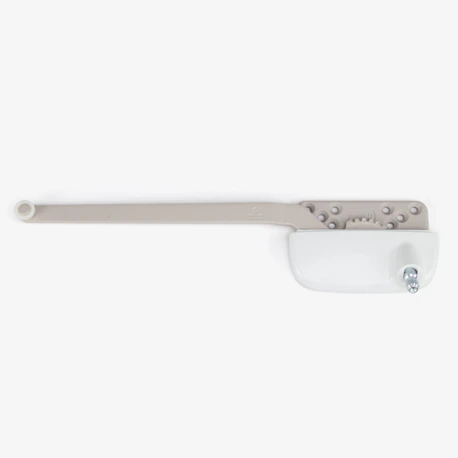

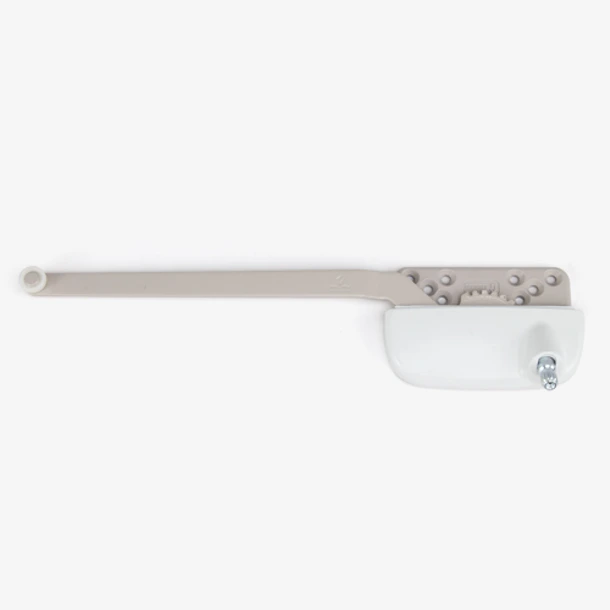

Sill mount, single arm crank operator. Used to open and close wood, metal, and vinyl casement windows.

See SWISCO product 39-413 for the opposite handed version.
Will provide a full 90 degree window opening.

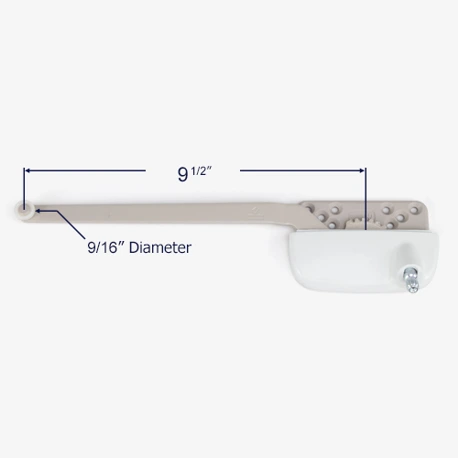

9-1/2" long arm, measured from wheel center to gear center.
11/32" spline; handle sold separately.
Ellipse style case is manufactured of high-pressure die-cast zinc; hardened steel drive worm and gear arm with nylon roller.
Finish is electrostatically applied, durable coatings that provide excellent resistance to chipping, scratching and corrosion while maintaining color stability for years in direct sunlight.

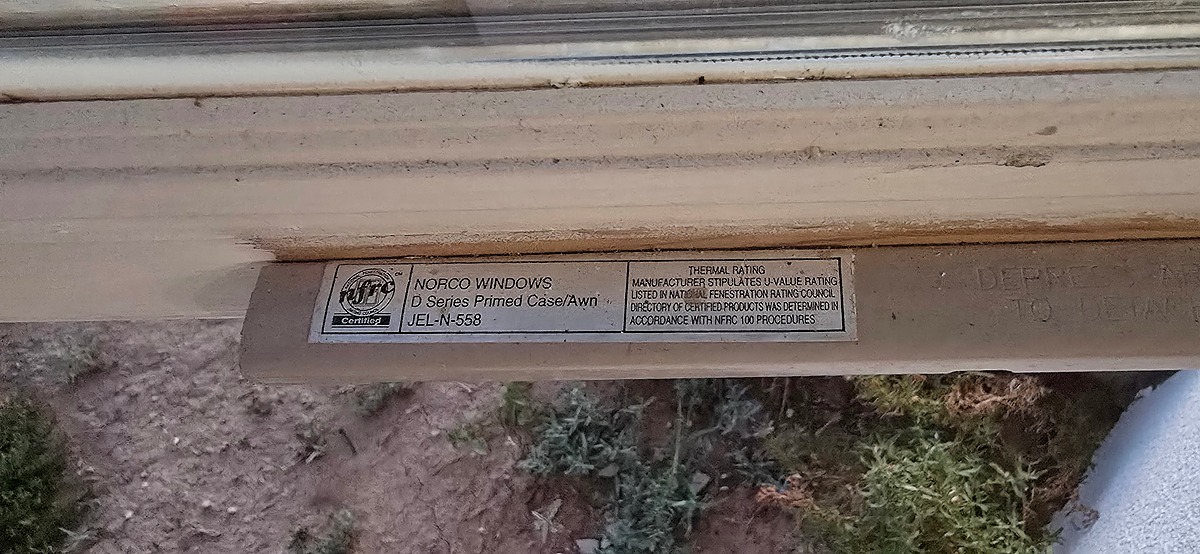

ORIGINAL NORCO

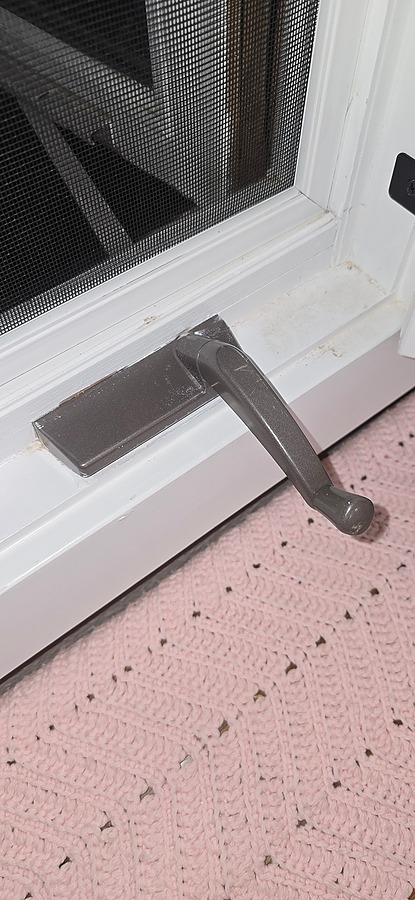

Need [R] and [L] casement parts. 30 year old parts need total replacement

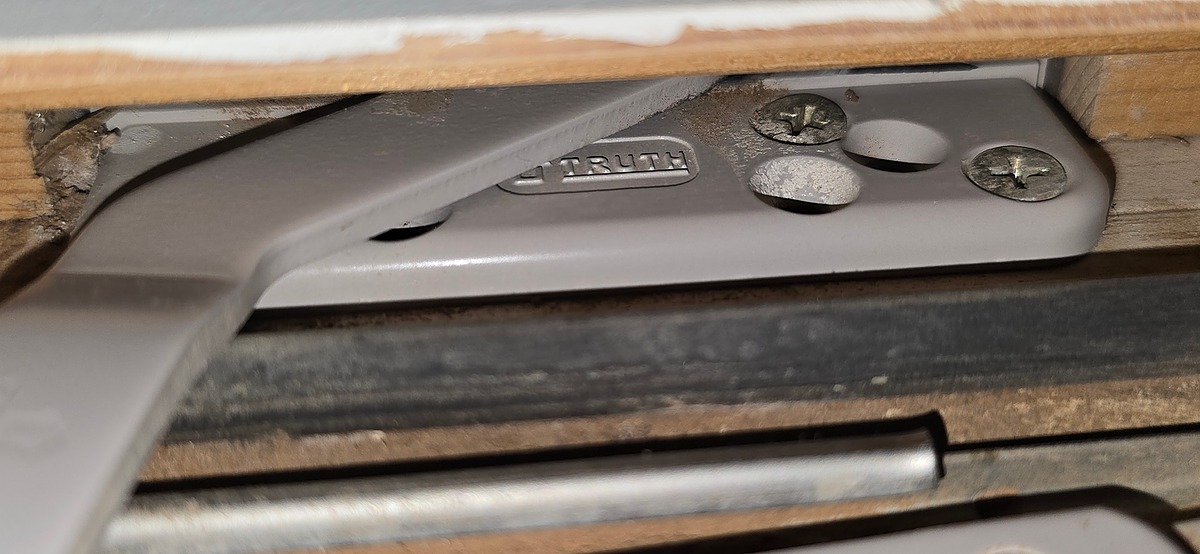

Truth 15 series operator 9-1/2 window crank

Looking for replacement window crank for casement windows

Window Operator with strike plate

Hello, I need a window operator that will fit with the strike plate on it. See my pictures attached. The arm is straight.

Window crank handle replacement

I'm looking for window crank handle replacements. To right side and two left side. The product has an etching on it from Nordic, apparently the manufacturer. The home was built around 1980, and this is the original window hardware. From the point about which the crank pivots to the tip of the cra ... (cont.)

Casement Window Crank and Mechanism

Need replacement parts for casement windows for both left and right side. I have included pictures of the left side casement so would need part number for right side as well. The mechanism arm is 7.5" from the bend to the roller. Also, looking at Outside Pic2.jpg shows the mechanism mounted with ... (cont.)
