Georgia Pacific Windows?

Contractor from Los Angeles

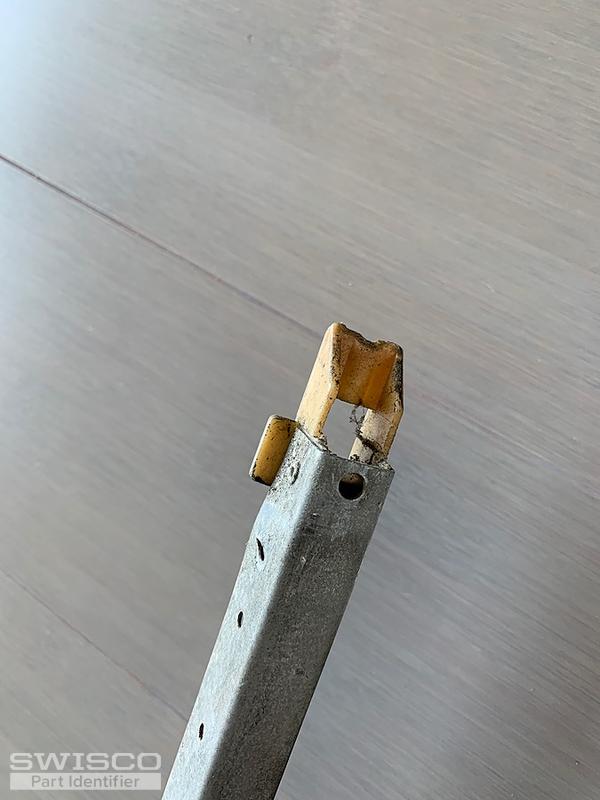

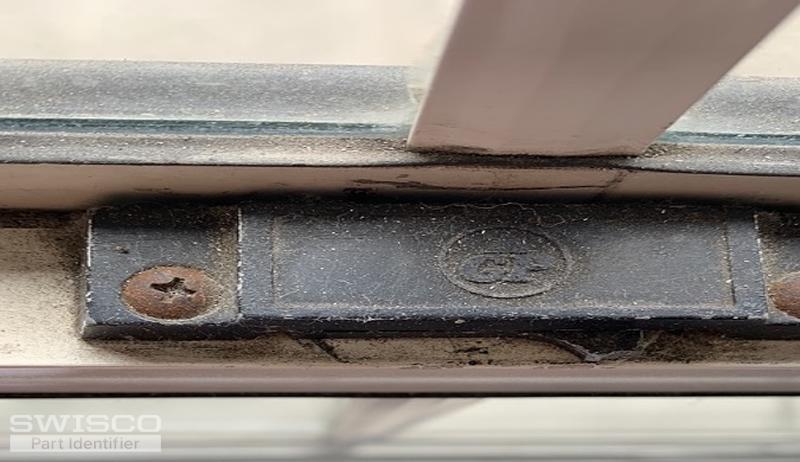

The metal channels most closely resemble the 395 series but the shoes have wings/ flanges. It's hard to tell but my top (1-1/4") looks a little longer than what is shown in the "Series 395 Channel" pictures. I've also attached a picture of the window lock. Not sure if you guys sell those, too.

Any help is most appreciated.

5 user uploaded images
3 Replies
Tom
Tom from SWISCO
SWISCO
Expert

Hello! If your bottom shoe has wings then you don't want the Series 395. Fortunately, we have two balances that match your description: either the Series 380 or Series 385. The only difference is the depth of the bottom shoe, so you'll have to measure that to confirm which one to go with. Refer to the diagram below for what I mean.

We don't have that exact lock, but our 90-313 is close. That may work for you. Review the dimensions and pictures we show on its store page to confirm.

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.
Contractor from Los Angeles
Thanks for the help!
