Looking to replace the constant force balancers on an older (2012) Gorell Double Hung Impact Window. Need the setup shown in the picture. Need two sets (right and left side).
Thanks.
Gorell balancers
Contractor from Florida
Aug 19, 2024 2:56 pm
1 user uploaded image
4 Replies
Casey from SWISCO
Aug 21, 2024 3:59 pm
Hello,
We can't be sure with the original balances still installed but what I can make out resembles the Series 210. Review the dimensions below to confirm they match up to yours. It also looks like your housings are stamped with 8, 7, and 7. If so, that indicates that you would need S210-22 balances for each side. Note that these balances are calibrated to support a sash between 41 to 44.99 lbs. I'd recommend weighing your sash to confirm that it falls within the weight range for these parts. Thank you!

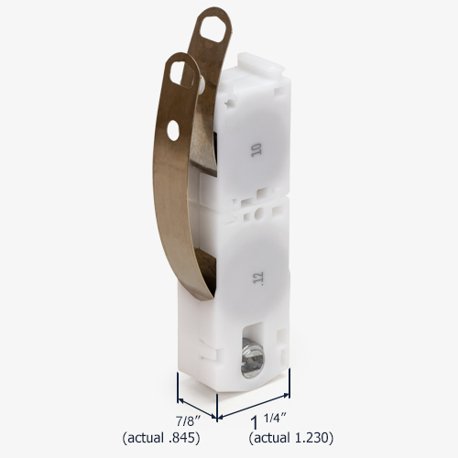

Alternate image for S210-22
Contractor from Florida
Aug 22, 2024 9:26 am
Thanks casey. Unfortunately, i guess i realize i did not give you the channel depth. We measured it at 9/16 so i do not think this system will work. What is the alternative setup i need for a 9/16" channel depth.
