Gorrell 5155 tilt window hardware

Contractor from USA

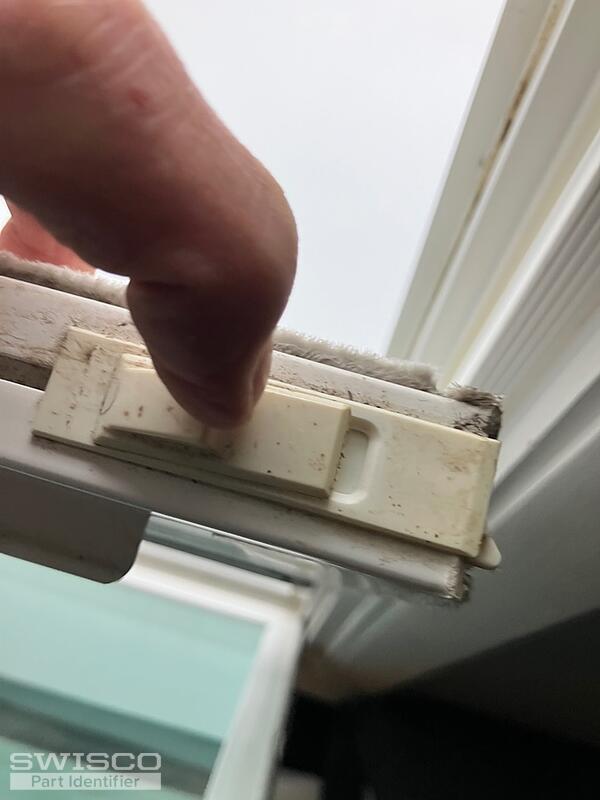

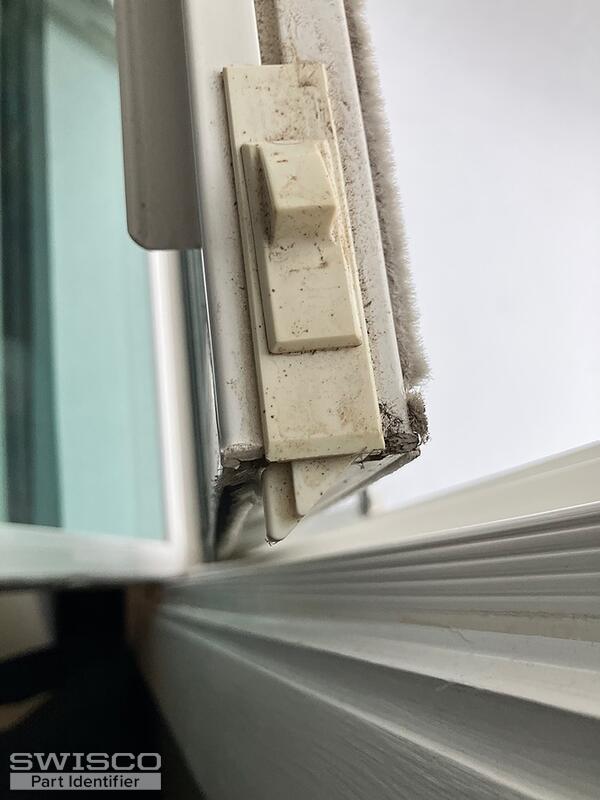

The window springs are 9/16" thick, 1 3/8" wide to fit the tracks. The corner latch wraps the side.
5 user uploaded images
4 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for reaching out! The housing pictured here is the 15-087 Coil Housing Pivot, which uses the Series 180 Coil Balance. Since your housing is marking what what appears to be a 6, you'll need the S180-06 Coil Balance.

To replace the mounting bracket, you'll need the 16-024.

Detail of 15-087
Detail of 15-087

I'm happy to recommend a replacement for the tilt latches. Although, I will need to see a photo of them removed from the window to determine the best recommendation. It is important to see exactly how the latch installs to the top of the sash.

Please don't hesitate to reach out with any questions.

Contractor from USA

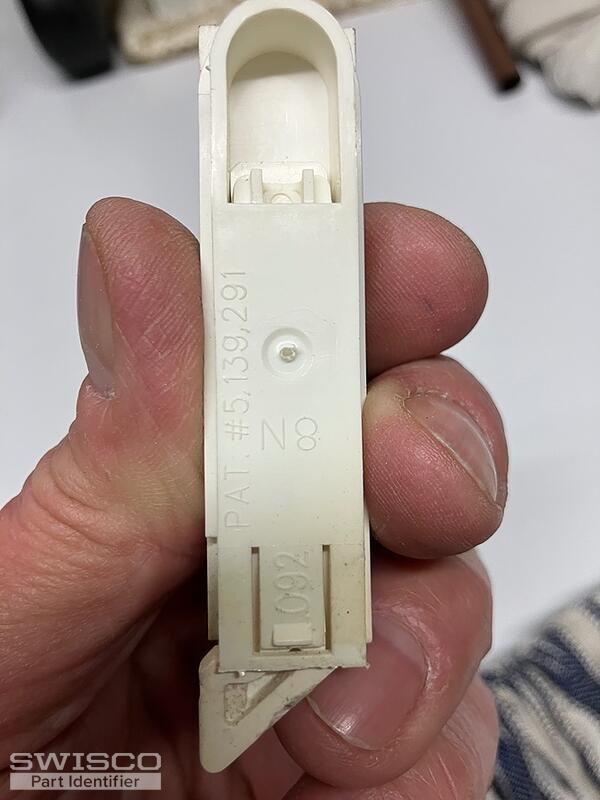

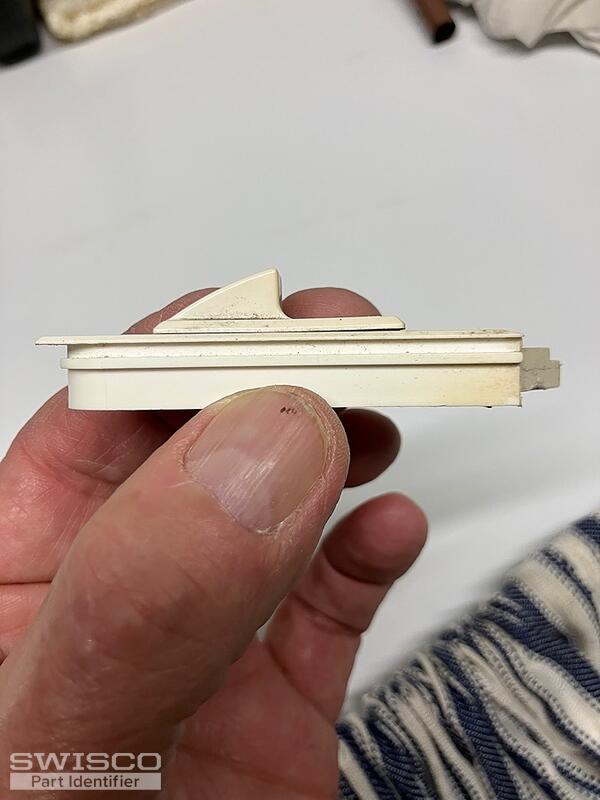

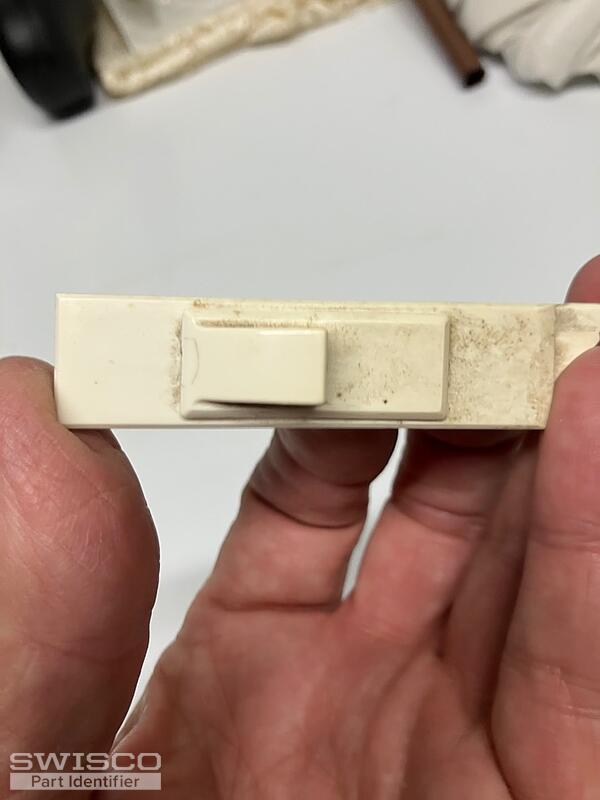

I have added a picture of the latch. Also, my windows are 2 sizes. The springs on the smaller have a 6 in them and the others have a 7. I will need both sizes as well as the latch
3 user uploaded images
Jasmine
Jasmine from SWISCO
SWISCO
Expert

We do not have an exact replacement match for this latch but I believe the 26-243 and 26-244 would work for your repairs. You'll need to carefully review and compare the dimensions on the website to confirm that these will be a fit.

The other assembly would need a 7lb coil, so that part number would be the S180-07.
