Grandview window parts

Hello, thank you for posting,

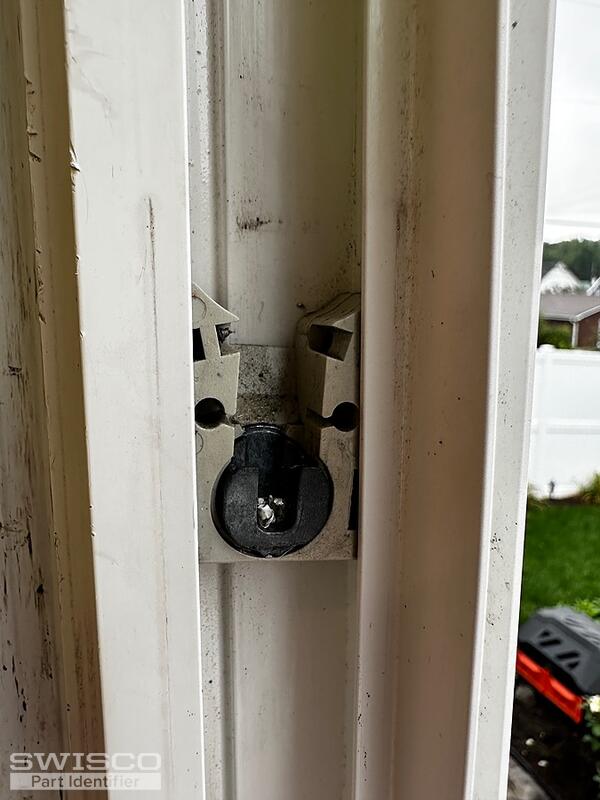

Your original pivot shoe has been discontinued, but we recommend comparing the 15-177 as a replacement option. This pivot shoe is compatible with the Series 152 coil springs.

Alternate image for 15-177

Each coil should have a number stamped on the metal that indicates the weighted option needed. If there are no markings present, please provide the weight of the window sash to move forward.

Also see the 15-143 coil bushing, 15-144 bushing cap and 15-145 support barrel.

For the pivot bar, start by comparing the dimensions of the 26-226 or 26-030 to see how they match up to your original. Let us know what you think and if you have any additional questions!

Thank you,

For a 16 pound window sash, you can switch to using (1) S152-8 coil spring on each side of the window. Let us know if you have any additional questions!
