Guardian Sliding Glass Door - Replacement Handle

Question

Hello,

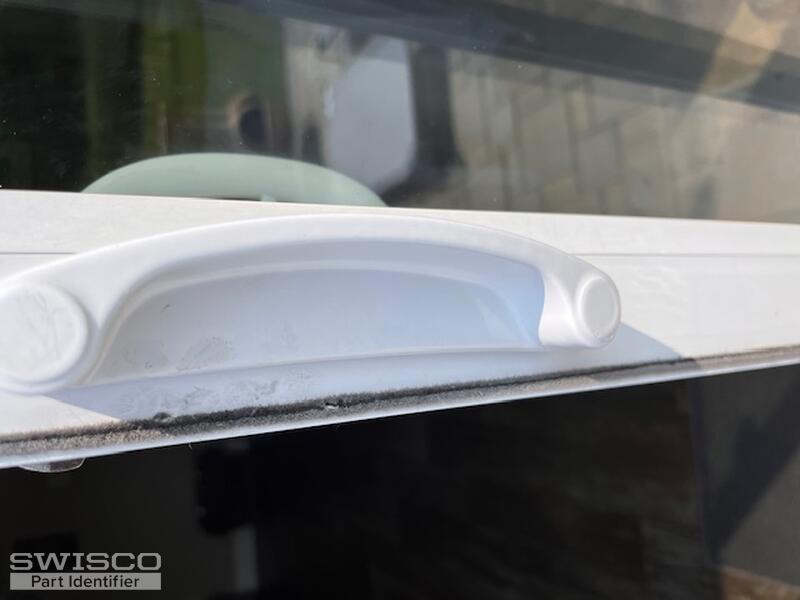

We have a 2009 Guardian Sliding Glass door. The lock mechanism on the interior door handle is stuck (stuck inside as well) - see picture, it's stuck 1/2 way. We did W40 it, which did not help.
Which parts do we need to order to replace it?
Guardian Z-97-1-2009 SGCC2020 1/8 IC CFA 201 11

Bob · Accepted Answer

Hi there. The 82-030 Handle Set will replace your old one. You will want to make sure the mortise lock isn't damaged and the cause of the handle set jamming. To find out, remove the handle set from the door and try manually 'throwing' the lock with a slotted screwdriver. If it doesn't budge then you know it must be replaced. See the 82-265 Lock and 82-249 Keeper.
