H-LC25 Window Coil Balancers

Contractor

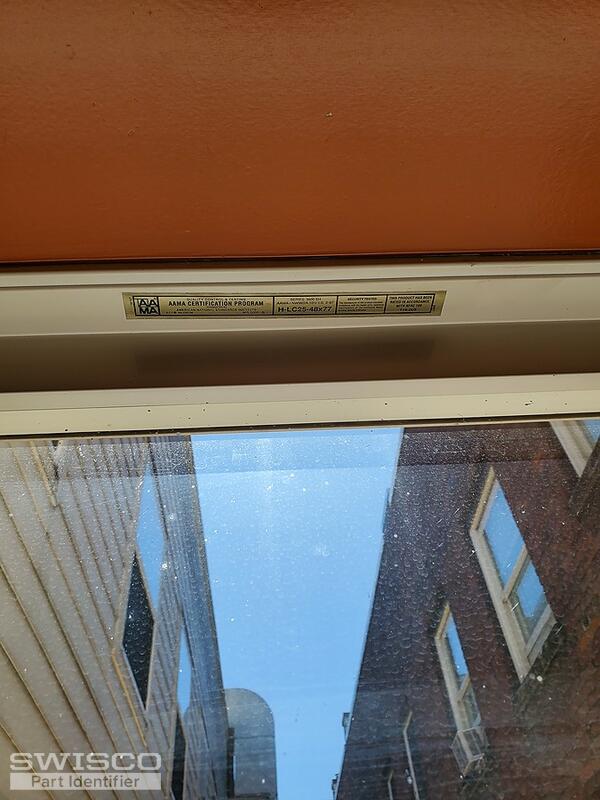

Looking for the correct replacement hardware for the coil balancers on these windows.
5 user uploaded images
2 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

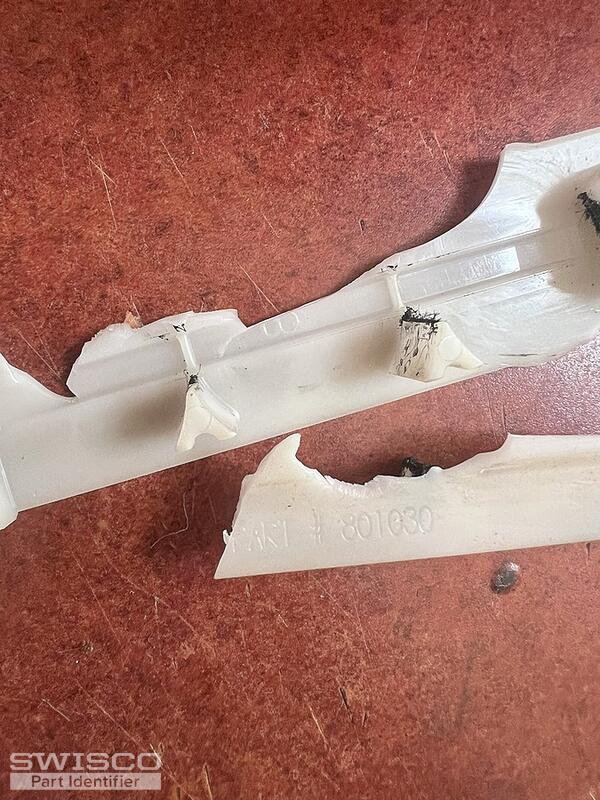

The coil shoe pictured here is the 15-191 Heavy Duty Pivot Shoe. It is compatible with the 1/2" wide Series 160 Coil Balance. Since yours are marked with a 6.5 and 7.5, you'll need the S160-06 and S160-07.

The cover used for the coils is the 15-150T Coil Triple support.

Alternate image for 15-191
Alternate image for 15-191
